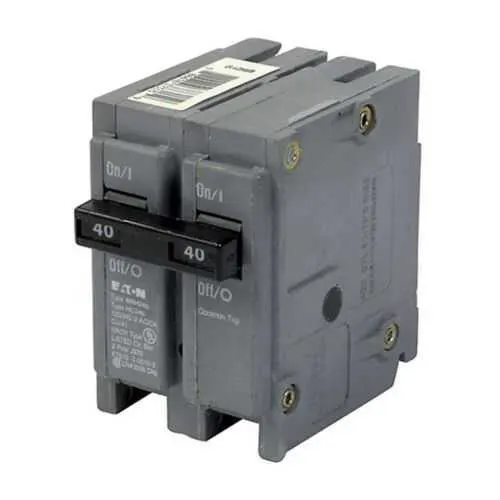

Eaton BRH240 BR Thermal Magnetic Circuit Breaker - 22 kAIC
Part Number: BRH240
Quick Summary
BRH240 is a thermal magnetic circuit breaker for protecting two-pole circuits in Type BR Loadcenters. Engineers often face nuisance trips and mounting incompatibilities that slow installation. Certified to UL 490 and Federal Specifications W-C376, with a 22 kAIC interrupt rating, it delivers reliable fault protection in demanding panels. Designed for BR Loadcenters, it supports easy plug-on installation and compatibility with #14-4 AWG Cu/Al conductors, helping panel builders streamline procurement and maintenance while maintaining compliance and safety. It also benefits from common-trip operation, reducing the risk of uneven phase protection and simplifying troubleshooting for contractors and OEMs. That combination saves time and boosts overall panel reliability.
Product Information
Extended Description
BRH240 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,40 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH240
UPC
786676373654
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
On the black handle breaker, add suffix B to the catalog number to obtain a tapped molded opening for proper use with hold-down kits.
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
40 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH240
Eaton type BR circuit breaker limited warranty June 2024
Two-pole, 40 A BRH240 with 22 kAIC interrupt provides robust fault protection in BR Loadcenters; common-trip design minimizes miscoordination and speeds servicing. The plug-on mounting reduces field wiring and aligns with Type BR footprints, enabling quick upgrades in residential and light commercial panels. With #14-4 AWG Cu/Al wiring capability, installers can reuse existing conductors while maintaining safe, code-compliant terminations, lowering labor cost. UL 490 and Federal Spec W-C376 compliance ensures inspectors and procurement teams meet regulatory requirements across projects. The catalog notes on the black handle variant (suffix B for tapped openings) support hold-down kit integration, expanding installation options. The compact 3 x 3 x 2 inch, 0.6 lb package fits tight spaces in dense panel assemblies, improving panel density and serviceability.
