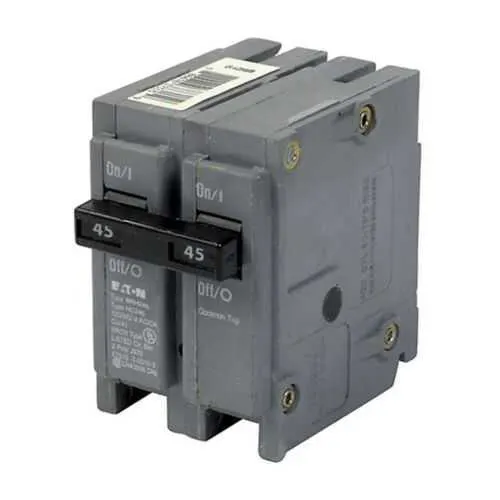

Eaton BRH245 BR Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRH245
Quick Summary
The Eaton BRH245 is a BR thermal magnetic circuit breaker for residential and light commercial load centers. Engineers frequently contend with nuisance trips and cramped installations that hamper safety and maintenance. UL 490 certification and Federal Specifications W-C376 compliance help ensure dependable protection and code-aligned performance. With a 45 A rating, 22 kAIC interrupt capacity, and 120/240 V operation, it coordinates reliably within BR load centers. Plug-on mounting and common-trip design simplify installation and maintenance, delivering cost-efficient protection for panel builders and electricians.
Product Information
Extended Description
BRH245 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,45 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH245
UPC
782114372166
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
45 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH245
Eaton type BR circuit breaker limited warranty June 2024
Type BR 1-Inch plug-on circuit breaker with two poles delivers a 45 A rating and 120/240 V operation, with a 22 kAIC interrupt capacity. This combination enables fast matching with BR Load Centers and reduces wiring errors in field installations. In real-world panel upgrades, plug-on mounting minimizes mis-wiring risk and speeds service replacements, a critical advantage when replacing aging breakers during tight schedules. The common breaker trip ensures simultaneous disconnection of both poles, protecting multi-wire branch circuits and motors and control circuits in panels. The 22 kAIC interrupt rating provides a wide fault-current margin, helping meet safety requirements while minimizing nuisance trips from transients. The unit wires with #14-4 AWG Cu/Al, supporting typical residential branch wiring and standard BR panels. Its compact 3 in depth, 3 in height, and 2 in width fit BR Load Centers while leaving space for feeders. UL 490 certification and Federal Specifications W-C376 support procurement and regulatory alignment, ensuring code compliance. The BRH245’s plug-on design reduces install time, while its 2-pole, common-trip configuration supports reliable motor protection and multi-wire circuit safety in both new builds and panel upgrades.
