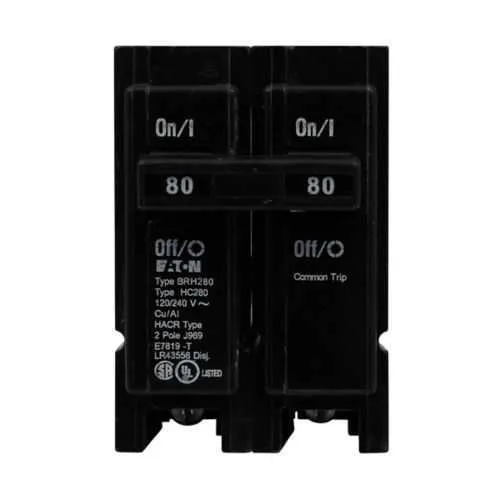

Eaton BRH280 Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRH280
Quick Summary
The Eaton BRH280 thermal magnetic circuit breaker protects electrical distribution in 120/240 V systems with a focus on reliability and safety. Engineers often struggle with nuisance trips and crowded panels; BRH280 addresses these issues through precise trip characteristics and a compact 3 x 2 x 3 inch footprint. UL 490 listed protection alongside Federal Specifications W-C376 compliance ensures dependable performance in regulated environments, with HACR-capable options for HVAC applications. This model is designed for BR load centers, delivering seamless integration, space efficiency, and a clear path to improved uptime across residential and light commercial installations.
Product Information
Extended Description
BRH280 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,80 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH280
UPC
782114372180
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
80 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH280
Eaton type BR circuit breaker limited warranty June 2024
Feature: Thermal magnetic protection provides fast response to overcurrent conditions, with a 22 kAIC interrupt rating. Business impact: minimizes arc fault damage and reduces unplanned outages, lowering maintenance costs. Application: ideal for 80 A circuits feeding critical loads in BR load centers. Feature: Plug-on mounting for Type BR 1-Inch breakers enables quick field upgrades. Business impact: reduces installation time and labor costs, improving project ROI. Application: convenient retrofits in existing BR panels without reworking bus structures. Feature: Common trip two-pole design ensures simultaneous disconnection of both poles on multi-wire branch circuits. Business impact: enhances safety compliance and reduces shock risks during faults. Application: residential feeders and small commercial power distributions with shared neutrals. Feature: Large conductor compatibility with #4-1/0 AWG Cu/Al supports high-load feeders. Business impact: enables flexible wiring options and reduces the need for splices. Application: feeders to appliances, motors, and panel subfeeds. Feature: Comprehensive compliance footprint including UL 490 and Federal W-C376. Business impact: streamlines procurement and audit readiness while supporting HACR applications. Application: government, educational, and regulated facilities requiring verified standards. Feature: Compact footprint and lightweight design (3 in L x 2 in W x 3 in H; 0.6 lb). Business impact: frees panel space and simplifies shipping, handling, and field installation. Application: crowded or space-constrained electrical enclosures in retrofit or new builds.
