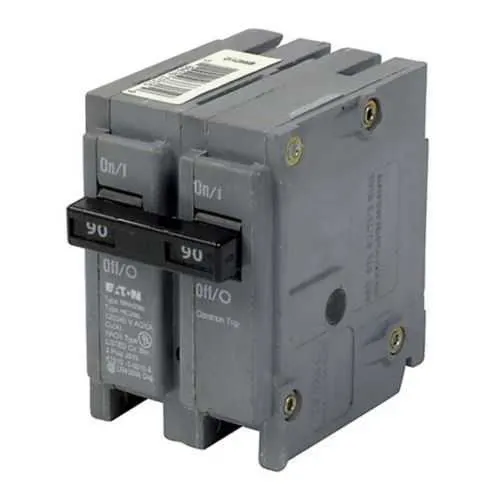

Eaton BRH290 BR thermal magnetic circuit breaker - UL 490
Part Number: BRH290
Quick Summary
BRH290 BR thermal magnetic circuit breaker provides reliable overcurrent protection for Type BR load centers in commercial and light-industrial panels. Many projects struggle with incorrect sizing and panel downtime, which this unit helps prevent with a 90 A rating and a common-trip two-pole design that simplifies coordination. This product carries UL 490 certification and complies with Federal Specifications W-C376, with options like HACR, shunt trip, and high-magnetic settings available for selected amperages. By leveraging plug-on mounting and a compact footprint, this breaker supports faster installation and easier maintenance, while ensuring code-compliant protection for BR load centers and related panel systems.
Product Information
Extended Description
BRH290 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,90 A,22 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH290
UPC
786676373852
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
90 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH290
Eaton type BR circuit breaker limited warranty June 2024
Feature → Business Impact → Application: The BRH290 is a two-pole, plug-on circuit breaker rated at 90 A for 120/240 V service, delivering robust overload and short-circuit protection in Type BR load centers. Business impact: simplifies panel planning and reduces downtime during replacement or upgrades, thanks to a straightforward plug-on installation and a compact 3 x 3 x 2 inch footprint. Application: ideal for commercial and light-industrial panels that demand reliable, space-efficient protection with quick swap-out capability. Feature → Business Impact → Application: With a 22 kAIC interrupt rating, this BRH290 withstands high-energy faults, limiting damage and improving safety margins. Application: suitable for feeders and branch circuits in environments where fault current can exceed standard ratings, reducing incidental collateral damage. Feature → Business Impact → Application: Common breaker trip ensures simultaneous disconnection of multi-pole circuits, enhancing selectivity and compliance across circuits sharing a load center. Application: supports coordinated shutdowns in critical systems and HVAC/electrical distribution configurations. Feature → Business Impact → Application: Wire size compatibility #4-1/0 AWG Cu/Al enables direct connection to large conductors, reducing terminal crowding and saving labor during installation. Application: aligns with heavy-load feeders and service entrances found in BR Loadcenters. Feature → Business Impact → Application: UL 490 certification and Federal Specifications W-C376 compliance provide regulatory confidence, aiding code-approved installations. Application: essential for contractor-approved installations in regulated commercial and industrial projects. Feature → Business Impact → Application: Catalog notes indicate availability of HACR, shunt trip, and high-magnetic settings for selected amperages, offering installation flexibility. Application: supports specialized protective schemes for motor loads and de-energization requirements in manufacturing lines.
