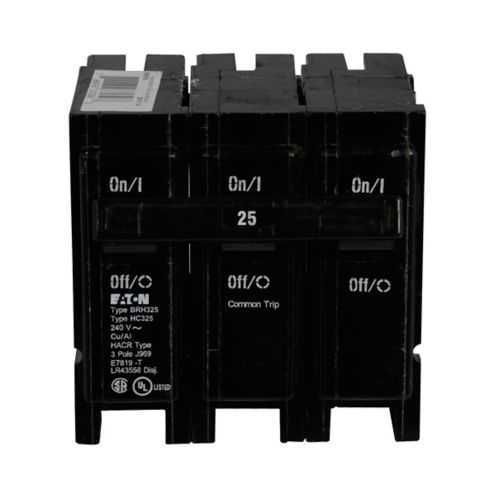

Eaton BRH325 Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRH325
Quick Summary
Eaton BRH325 thermal magnetic circuit breaker provides reliable overcurrent protection for electrical distribution panels in commercial and industrial settings. Engineers face nuisance trips, wiring constraints, and compatibility challenges when upgrading legacy panels. This device carries UL 490 listing and complies with Federal Specifications W-C376, ensuring regulatory alignment and traceable performance. Designed for Type BR load centers, it supports 25 A circuits with common trip and plug-on installation for fast, reliable protection. With a compact 3x3x3 inch footprint and a 2 lb weight, it simplifies panel design while delivering robust fault current handling. The device also aligns with HACR-rated wiring practices and standard #14-4 AWG Cu/Al cabling, supporting safer, code-compliant installations.
Product Information
Extended Description
BRH325 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,25 A,22 kAIC,Three-pole,240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH325
UPC
786676002707
Product Length/Depth
3 in
Product Height
3 in
Product Width
3 in
Product Weight
2 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
25 A
Voltage rating
240 V - 240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Three-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH325
Eaton type BR circuit breaker limited warranty June 2024
Feature: Type BR 1-Inch plug-on design simplifies installation and panel retrofits. Business Impact: reduces commissioning time and minimizes field wiring errors, improving project timelines. Application: ideal for Type BR Loadcenters in new builds and upgrades. Feature: 25 A, 240 V rating with common trip across all poles. Business Impact: delivers coordinated protection for multi-wire branch circuits, lowering the risk of unequal fault clearance. Application: protects lighting, controls, and small motors within commercial panels. Feature: Three-pole configuration with 22 kAIC interrupt rating. Business Impact: robust fault current handling for typical industrial feeder arrangements and panel boards. Application: suitable for medium-current distribution in demanding environments. Feature: Wire size compatibility #14-4 AWG Cu/Al. Business Impact: flexible wiring options streamline sourcing and reduce inventory variety. Application: supports common field wiring practices in control panels. Feature: UL 490 certification and Federal Specifications W-C376 compliance. Business Impact: strengthens regulatory alignment, simplifies audits, and supports warranty claims. Application: essential for code-compliant installations in commercial and light industrial facilities. Feature: Catalog notes support 10-150 A variants, switching duty, HACR, shunt trip, and high magnetic settings. Business Impact: scalable protection options and flexible control strategies without replacing hardware. Application: helps engineers tailor protection profiles to specific loads and duty cycles.
