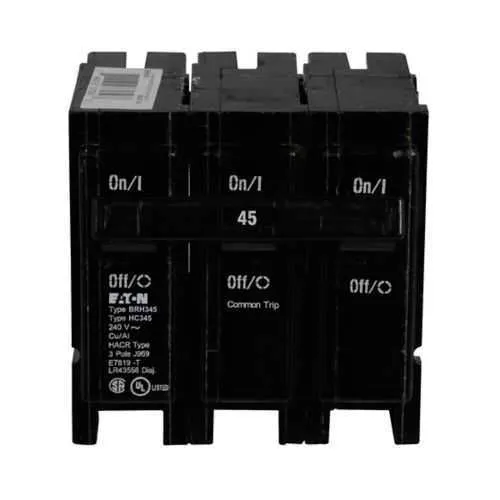

Eaton BRH345 BR Thermal Magnetic Circuit Breaker - 22 kAIC
Part Number: BRH345
Quick Summary
Eaton BRH345 BR thermal magnetic circuit breaker protects critical power systems with fast, reliable overcurrent protection for BR load centers. Engineers often face nuisance trips or wrong fitment in panelboards, costing downtime and maintenance. UL 490 certification and Federal Specifications W-C376 compliance ensure safety and code alignment, while the 22 kAIC interrupt rating supports critical loads. With 45 A at 240 V in a three-pole plug-on package, the BRH345 delivers reliable protection for BR Loadcenters and streamlines sourcing for engineers and procurement teams. This combination supports compliance with electrical codes while enabling efficient maintenance routines and reduced inventory complexity. Engineering teams appreciate the straightforward integration.
Product Information
Extended Description
BRH345 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,45 A,22 kAIC,Three-pole,240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH345
UPC
786676002721
Product Length/Depth
3 in
Product Height
3 in
Product Width
3 in
Product Weight
2 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
45 A
Voltage rating
240 V - 240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Three-pole
Quantity
28
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH345
Eaton type BR circuit breaker limited warranty June 2024
Feature: 45 A, 240 V, three‑pole with common trip. Business Impact: Ensures coordinated protection for multi‑phase feeders, reducing nuisance trips and protecting downstream equipment. Application: Ideal for Type BR Loadcenters in light commercial and industrial panels where consistent performance matters. Feature: Type BR 1‑inch plug‑on circuit breaker with plug‑on mounting. Business Impact: Speeds installation and simplifies future servicing with straightforward replacement in standard BR panels. Application: Fully compatible with BR Loadcenters and BRH family accessories, enabling rapid panel upgrades. Feature: 22 kAIC interrupt rating; 3‑pole configuration; #14‑4 Cu/Al wire. Business Impact: Delivers high fault‑current protection while supporting energy‑efficient motors and controls; reduces risk of widespread power outages. Application: Suitable for three‑phase feeders in commercial and light industrial facilities. Feature: UL 490 listing; Federal Specifications W-C376 compliance; Warranty: Limited lifetime residential, one year commercial. Business Impact: Verifies safety, quality, and regulatory alignment; lowers total cost of ownership through durable performance and predictable service life. Application: Works with Type BR Loadcenters across residential, commercial, and light industrial installations.
