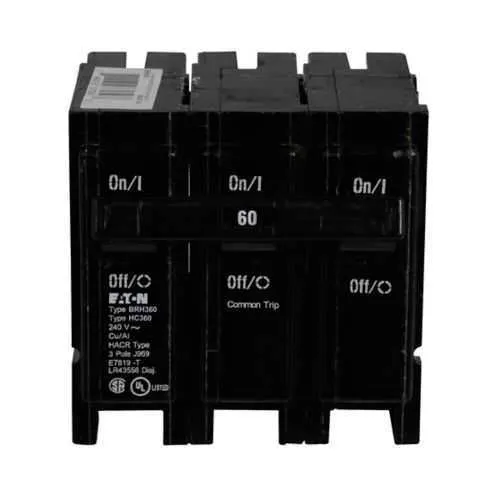

Eaton BRH360 BR circuit breaker - UL 490, 22 kAIC
Part Number: BRH360
Quick Summary
The Eaton BR thermal magnetic circuit breaker protects panels by interrupting fault currents in commercial and industrial electrical distributions. Engineers often wrestle with nuisance trips and crowded load centers, and the BRH360’s common trip and 1-Inch plug-on design help simplify wiring and maximize panel space. This device carries UL 490 certification and Federal Specifications W-C376, with HACR compatibility and an optional high-magnetic setting for motor loads, providing reliability in code-driven environments. Used with Type BR Loadcenters, it supports #4-1/0 AWG Cu/Al conductors and offers scalable protection for growing electrical systems, reducing downtime and maintenance costs.
Product Information
Extended Description
BRH360 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,60 A,22 kAIC,Three-pole,240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRH360
UPC
786676372756
Product Length/Depth
3 in
Product Height
3 in
Product Width
3 in
Product Weight
2 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Voltage rating
240 V - 240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Interrupt rating
22 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Three-pole
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - BRH360
Eaton type BR circuit breaker limited warranty June 2024
The BRH360 is a three-pole, 60 A circuit breaker, delivering balanced protection for three-phase feeders and reducing the risk of uneven fault currents in commercial panels. This translates to improved motor protection and longer equipment life, particularly in HVAC and manufacturing environments where consistent performance is critical. With a 22 kAIC interrupt rating, the device faster isolates faults, limiting arc flash energy and protecting downstream gear, thereby lowering maintenance costs and downtime in heavy-duty distributions. The common trip design guarantees all poles disconnect simultaneously, simplifying code compliance and fault diagnosis in complex 3-phase circuits. Its 1-Inch plug-on format ensures rapid installation and straightforward retrofits into existing BR Loadcenters, minimizing field labor and panel remodels. Supporting #4-1/0 AWG Cu/Al wires, BRH360 accommodates sizable feeders while maintaining a compact footprint, conserving cabinet space in panelboards. The catalog notes confirm HACR capability, shunt trip options, and high-magnetic settings, providing flexible control for motors and HVAC equipment while meeting evolving safety requirements. Finally, UL 490 certification and Federal Specifications W-C376 alignment reinforce regulatory compliance, giving procurement teams confidence across projects and end-user environments.
Get a Quick Quote for a Eaton BRH360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRH360?
Enquire Now
FAQs
BRH360 is designed for Type BR Loadcenters and uses a 1-Inch plug-on form factor. It provides three-pole, common-trip protection suitable for balanced 3-phase panels, allowing straightforward upgrades or retrofits in existing BR configurations.
BRH360 is a 60 A, three-pole breaker rated for 240 V with an interrupt rating of 22 kAIC. It is a thermal-magnetic type BR device, designed for common trip across all poles to meet code requirements in 3-phase mains.
BRH360 supports copper and aluminum conductors ranging from #4 to 1/0 AWG. This wide wire-size range enables versatile feeders for medium-sized load centers while preserving a compact installation footprint.
Yes. Catalog notes indicate HACR suitability and options for shunt trip and high-magnetic settings, providing flexibility for motor loads and specialized control scenarios without sacrificing protection or compliance.
BRH360 carries UL 490 certification and conforms to Federal Specifications W-C376. These credentials support regulatory compliance, procurement confidence, and safe operation within code-driven electrical installations.
