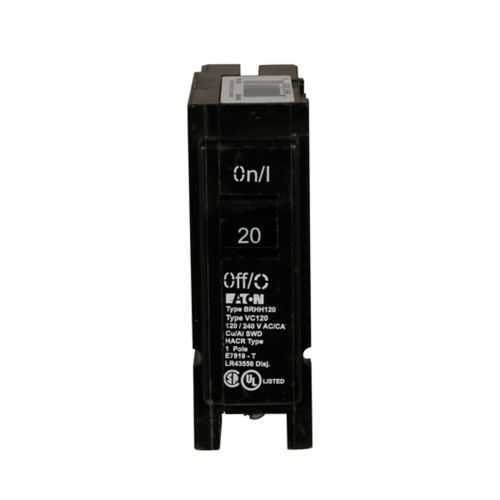

Eaton BRHH115 Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRHH115
Quick Summary
The Eaton BRHH115 thermal magnetic circuit breaker is a compact, plug-on protection device designed for Type BR loadcenters. Engineers often struggle to fit reliable overcurrent protection into tight panel spaces without compromising trip performance. UL 490 listing and Federal Specifications W-C376 compliance, along with HACR-capable options, help ensure regulatory adherence for HVAC and general circuits. With a 15 A rating, 120/240 V operation, and a common trip for multi-pole configurations, BRHH115 delivers dependable protection while simplifying installation for panel builders. This part aligns with BR loadcenters and standard conductor sizes, reducing procurement complexity and speeding commissioning in industrial and commercial panels.
Product Information
Extended Description
BRHH115 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,15 A,42 kAIC,Single-pole,120/240V,BRHH,Common breaker trip,#14-4 AWG Cu/Al,BRHH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH115
UPC
786676002752
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.3 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
15 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BR
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Feature: Thermal magnetic trip provides automatic overload and short-circuit protection. Business impact: Delivers reliable, fast response to abnormal current, reducing downtime and equipment damage. Application: Ideal for branch circuits in Type BR loadcenters where space is at a premium and coordinated protection is required. Feature: Common trip with single-pole design enables synchronized disconnection across related circuits. Business impact: Improves safety and reduces nuisance tripping in multi-wire installations. Application: Perfect for panelboards employing shared neutrals and coordinated protection in commercial environments. Feature: Plug-on mounting simplifies installation and minimizes panel-wiring errors. Business impact: Cuts installation time, lowers field labor costs, and reduces commissioning bottlenecks. Application: Suitable for rapid upgrades in existing BR loadcenters and new panel builds. Feature: 42 kAIC interrupt rating supports higher fault-current environments. Business impact: Enhances system safety and regulatory compliance in industrial settings. Application: Use where fault currents exceed standard residential levels. Feature: Wire size flexibility with #14-4 AWG Cu/Al. Business impact: Broadens conductor compatibility, reducing stocking variety. Application: Common in residential and light commercial wiring schemes. Feature: Certifications and compliance (UL 490, W-C376) provide regulatory assurance. Business impact: Streamlines procurement and installation across code-driven projects. Application: Required for building codes and safety programs in new constructions.
