Eaton BRHH130 Thermal Magnetic Circuit Breaker - UL 490
Part Number: BRHH130
Quick Summary
The Eaton BRHH130 Thermal Magnetic Circuit Breaker protects electrical panels by interrupting fault currents in Type BR loadcenters. When selecting protection, engineers often struggle with compatibility, mounting complexity, and accurate trip characteristics; BRHH130 simplifies these choices with a plug-on design and a common-trip mechanism. It carries UL 490 listing and Federal Specifications W-C376 compliance, with HACR and shunt-trip options available within the BR family to cover broader needs and regulatory alignment. For projects, this device offers reliable protection in a compact footprint, enabling faster panel upgrades, reduced wiring complexity, and a smoother path to compliant, dependable electrical protection in residential and light commercial applications.
Product Information
Extended Description
BRHH130 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,30 A,42 kAIC,Single-pole,120/240V,BRHH,Common breaker trip,#14-4 AWG Cu/Al,BRHH,Type BR Loadcenters
Product Name

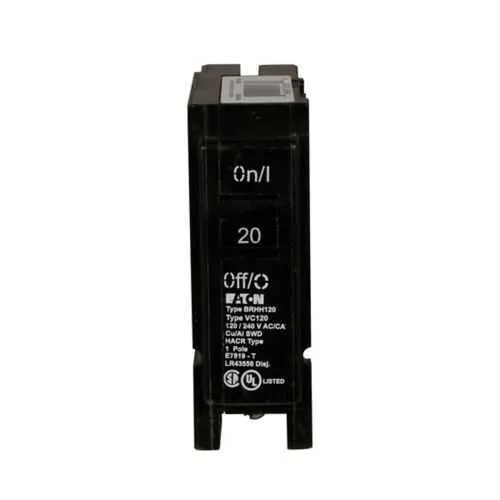

Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH130
UPC
786676002783
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.3 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BR
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Feature: Common-trip design ensures simultaneous tripping across multiple poles, reducing the risk of partial protection and downstream damage. Business Impact: Improves safety, minimizes nuisance faults, and simplifies coordination with downstream devices. Application: Ideal for Type BR Loadcenters in new installations and retrofit projects where a single protective device must cover multiple circuits. Feature: 42 kAIC interrupt rating provides high fault-current withstand capability. Business Impact: Enhances system resilience and reduces equipment damage during faults, lowering maintenance and replacement costs. Application: Suitable for service panels and circuits where fault currents could approach higher levels in mixed-use environments. Feature: 1-Inch plug-on mounting offers straightforward installation and quick replacements. Business Impact: Cuts installation time, minimizes field wiring errors, and supports faster commissioning. Application: Retrofit projects or panel upgrades in space-constrained electrical enclosures. Feature: 120/240 V operation covers typical residential split-phase and light commercial circuits. Business Impact: Enables universal compatibility within standard distribution systems, reducing the need for different breaker families. Application: Branch circuit protection in homes and small business panels with Type BR Loadcenters. Feature: Wire size compatibility (#14-4 AWG Cu/Al) provides wiring flexibility. Business Impact: Streamlines field wiring plans, reduces stocking of multiple wire gauges, and lowers project cost. Application: Common residential branch circuits and small commercial branch wiring. Feature: Compliance and warranty support (UL 490, Federal Specifications W-C376; Limited lifetime residential, 1 year commercial). Business Impact: Minimizes regulatory risk and provides clear support expectations, aiding procurement and asset management. Application: Procurement decisions for building owners and contractors seeking robust, standards-aligned protection.
Get a Quick Quote for a Eaton BRHH130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRHH130?
Enquire Now
FAQs
Yes. BRHH130 is a Type BR 1-Inch plug-on circuit breaker designed to mount directly in Eaton BR Loadcenters. It is a single-pole, 30 A device rated for 120/240 V with a common-trip mechanism, and accepts #14-4 AWG Cu/Al wiring for straightforward field wiring.
BRHH130 is a 30 A circuit breaker with a 120/240 V rating and a 42 kAIC interrupt capacity. It is UL 490 listed and intended for use in BR loadcenters with a common-trip configuration.
BRHH130 carries UL 490 certification and complies with Federal Specifications Classification W-C376. These marks support regulatory acceptance and safety expectations for residential and light commercial panels.
BRHH130 is part of the BR family, where certain amperages and configurations include HACR, shunt-trip, and high-magnetic settings. Consult the Eaton BR specification sheet to confirm available variants for BRHH130 in your installation.
BRHH130 carries a limited lifetime warranty for residential use and a 1-year warranty for commercial applications, reflecting Eaton’s commitment to reliability and post-sale support for panel protection.
