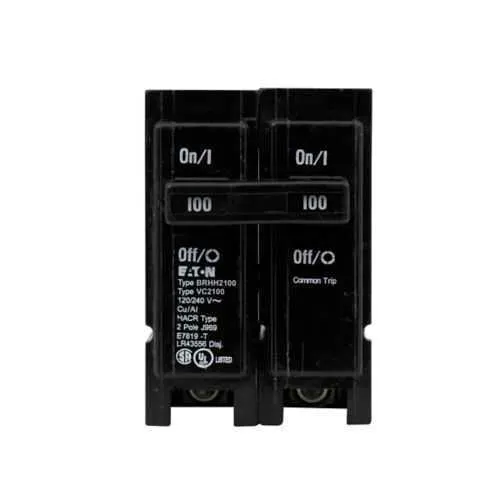

Eaton BRHH2100 BR thermal magnetic circuit breaker - 42 kAIC
Part Number: BRHH2100
Quick Summary
The Eaton BRHH2100 BR thermal magnetic circuit breaker protects branch circuits in Type BR load centers. Engineers often confront tight panel spaces and wiring complexity, leading to miswiring or inconsistent protection. This unit carries UL 490 certification and Federal Specifications W-C376, with optional HACR, shunt trip, and high-magnetic settings to cover a range of protection schemes. For panel installations, the 1-Inch plug-on BR form factor, 100 A rating, and 42 kAIC interrupt capability deliver reliable protection while enabling simpler coordination across multi-pole configurations and streamlined spare-part inventories.
Product Information
Extended Description
BRHH2100 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,100 A,42 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH2100
UPC
786676376952
Product Length/Depth
2.5 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
100 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Feature → Business Impact → Application: The BR HH2100 family uses a 1-Inch plug-on design that speeds installation and reduces field wiring errors, cutting commissioning time in new panels and retrofit projects. Benefit: faster project turnover and fewer on-site faults in manufacturing lines or commercial distributions. Application: Type BR Loadcenters where space is tight and multiple circuits require synchronized protection. Feature → Business Impact → Application: A 100 A, two-pole device with a 42 kAIC interrupt rating provides strong fault-current handling, minimizing collateral damage and downtime. Benefit: improved safety margins and reduced risk of panel damage in high-short-circuit scenarios. Application: industrial panels in high-density electrical rooms. Feature → Business Impact → Application: Common trip and confirmed wire compatibility with #4-1/0 AWG Cu/Al ensure coordinated protection across both poles. Benefit: simplified wiring topology and consistent trip characteristics. Application: retrofit and new builds in utility rooms and machine enclosures. Feature → Business Impact → Application: Compliance with UL 490 and W-C376 supports regulatory alignment and OEM approvals. Benefit: easier procurement, fewer compliance questions, and smoother audits. Application: cross-industry deployments requiring recognized standards. Feature → Business Impact → Application: Availability in HACR, shunt trip, and high-magnetic settings addresses specialized control schemes. Benefit: flexible protection strategies for HVAC, machinery, and distribution equipment. Application: facilities with precise motor and control protections. Feature → Business Impact → Application: Type BR Loadcenter compatibility ensures plug-on interchangeability with existing panels. Benefit: reduced inventory needs and faster replacements. Application: service upgrades and stock optimization for electrical distributors.
Get a Quick Quote for a Eaton BRHH2100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRHH2100?
Enquire Now
FAQs
Installation begins with confirming the panel's rated amperage and space per BR catalog notes. Slide the BRHH2100 into the 1-Inch bus bar and align with the proper mounting clip, then secure with mounting hardware. Wire the device using #4-1/0 AWG Cu/Al per the terminal markings. Ensure the unit is aligned for a common trip and verify tight, clean connections to prevent nuisance trips.
The BRHH2100 is rated for 100 A and operates at 120/240 V. This makes it suitable for residential, commercial, and light-industrial panelboards that require a two-pole, common-trip circuit breaker with high interrupt capability. Always confirm that the panel rating supports 100 A circuits and two-pole protection.
Yes. Catalog notes indicate options for HACR, shunt trip, and high-magnetic settings are available for the BR series. When selecting the device, specify the protection scheme required by the motor or control circuit, and verify compatibility with the panel and control wiring to ensure coordinated stopping and safe operation during fault conditions.
BRHH2100 is designed for Type BR Loadcenters and uses the standard plug-on mounting with a common trip. It is compatible with Type BR accessories and panels that support 1-Inch BR breakers. For upgrades or replacements, confirm the panel's catalog compatibility and ensure wire sizes and pole counts match the installed equipment.
BRHH2100 carries UL 490 certification and complies with Federal Specifications W-C376. These certifications indicate adherence to recognized safety and performance standards, which simplifies procurement, ensures regulatory compliance, and supports quality assurances in audits and safety programs across industrial, commercial, and utility environments.
