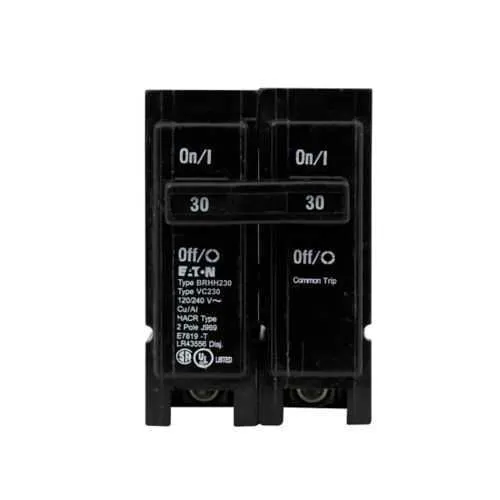

Eaton BRHH230 BR Thermal Magnetic Circuit Breaker - 42 kAIC
Part Number: BRHH230
Quick Summary
The Eaton BRHH230 BR thermal magnetic circuit breaker is designed to protect branch circuits with fast, reliable interruption in Type BR load centers. It minimizes panel downtime and simplifies retrofits through a straightforward plug-on installation. Engineers often struggle with nuisance trips and miscoordination in multi-pole panels; this unit delivers a common-trip solution across poles for predictable protection. It carries UL 490 certification and complies with Federal Specifications W-C376, supporting safety and procurement requirements in regulated markets. With a compact 3 x 3 x 2 in footprint and 120/240 V operation, it also offers installation efficiency and reduced spare-part inventory, delivering dependable protection for critical equipment.
Product Information
Extended Description
BRHH230 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,30 A,42 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH230
UPC
786676002899
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Feature → The BRHH230 uses a BR 1-Inch plug-on design with two poles and a 30 A rating, delivering reliable fault interruption at 120/240 V. Business Impact → The plug-on mounting reduces installation time and minimizes wiring errors, while the 42 kAIC interrupt rating enhances system safety in high-short-circuit scenarios. Application → Suited for Type BR Loadcenters in residential and light commercial distribution, with #14-4 AWG Cu/Al wire compatibility. Feature → Common trip across all poles ensures coordinated protection. Business Impact → Reduces nuisance trips and simplifies panel protection strategy, improving uptime and reliability. Application → Ideal for multi-pole circuits in panels that require synchronized trip performance. Feature → 120/240 V voltage rating and wire-size compatibility (#14-4 AWG Cu/Al). Business Impact → Supports standard branch circuits while meeting NEC wiring norms, reducing stocking complexity. Application → Suitable for standard North American electrical installations in both new builds and renovations. Feature → UL 490 certification and Federal Specifications W-C376 compliance. Business Impact → Aligns with essential safety standards and government procurement requirements, streamlining project approvals. Application → Public sector, industrial, and commercial projects requiring formal certifications. Feature → Compact footprint and plug-on mounting facilitate flexible installation in Type BR Loadcenters. Business Impact → Space-saving design reduces panel crowding and accelerates retrofit timelines. Application → Retrofit or new-construction projects where space is at a premium and Type BR breakers are standard. Feature → Availability of related trip options and catalog notes (HACR, shunt trip, high magnetic settings). Business Impact → Enables future-proofing and customization to meet evolving protection needs without replacing the base device. Application → HVAC, commercial controls, and other applications requiring adaptable protection configurations.
