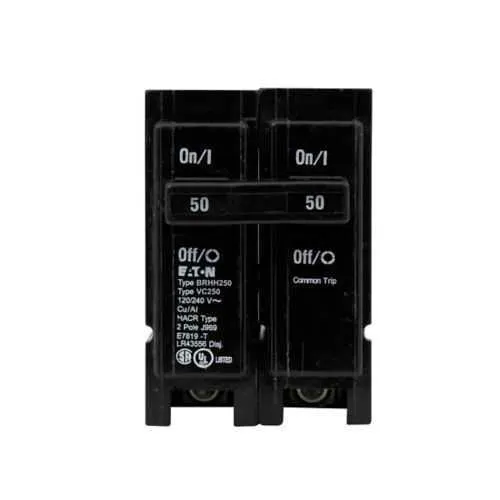

Eaton BRHH250 BR Thermal Magnetic Circuit Breaker - 42 kAIC
Part Number: BRHH250
Quick Summary
BRHH250 thermal magnetic circuit breaker protects electrical panels in commercial and industrial control systems. This device helps prevent nuisance trips and simplifies maintenance by delivering a common trip across two poles. It carries UL 490 certification and complies with Federal Specifications W-C376, with HACR-ready and high-magnetic options within the BR family to support diverse loads. Designed for Type BR Loadcenters, it supports 50 A at 120/240 V, and its plug-on mounting streamlines installation in compact panels. By aligning with BR-series accessories, procurement teams reduce stocking complexity while maintaining reliable protection and long-term lifecycle value.
Product Information
Extended Description
BRHH250 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,50 A,42 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#14-4 AWG Cu/Al,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH250
UPC
786676002936
Product Length/Depth
3 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
50 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BRH
Wire size
#14-4 AWG Cu/Al
Number of poles
Two-pole
Feature: Common-trip, 2-pole, 1-Inch plug-on design. Business Impact: Coordinated protection and simplified installation reduce panel downtime and field wiring errors. Application: Ideal for Type BR Loadcenters in commercial or light industrial panels. Long-tail keywords: BR series circuit breaker, plug-on circuit breaker, two-pole BR breaker.Feature: Amperage rating of 50 A with 120/240 V capability. Business Impact: Matches typical branch circuits while enabling safe load distribution and efficient panel design. Application: Main and branch circuit protection in control panels and feeders. Long-tail keywords: 50 A circuit breaker, 120/240 V protection, branch circuit protection.Feature: 42 kAIC interrupt rating. Business Impact: Fast fault interruption improves safety and minimizes equipment damage, reducing maintenance costs. Application: High-energy environments such as manufacturing lines and data/comms rooms. Long-tail keywords: high interrupt rating, 42 kAIC, fault current protection.Feature: UL 490 certification and Federal Specifications W-C376 compliance. Business Impact: Ensures regulatory alignment and market acceptance, simplifying procurement and责任 traceability. Application: Multi-site compliance across residential and commercial electrical distributions. Long-tail keywords: UL 490, W-C376 compliance, regulatory compliance.Feature: Compatibility with Type BR Loadcenters, wire size #14-4 AWG Cu/Al, and plug-on mounting. Business Impact: Reduces installation time and inventory complexity while enabling scalable panel design. Application: Panel upgrades, retrofit projects, and new builds in industrial settings. Long-tail keywords: Type BR Loadcenters compatibility, plug-on circuit breaker installation, Cu/Al wire sizing.
Get a Quick Quote for a Eaton BRHH250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRHH250?
Enquire Now
FAQs
Yes. The BRHH250 is designed as a 2-pole, 1-inch plug-on circuit breaker specifically for Type BR Loadcenters, using #14-4 AWG Cu/Al conductors. Its plug-on mounting simplifies panel upgrades and reduces installation time while maintaining a common trip across poles.
BRHH250 is rated 50 A and 120/240 V with a 42 kAIC interrupt rating. It is UL 490 listed and complies with Federal Specifications W-C376, and supports common-trip operation for coordinated protection in BR Loadcenters.
Ideal for protecting branch circuits and feeders in commercial and light-industrial panel boards, especially in Type BR Loadcenters. It supports 50 A circuits and provides reliable protection for equipment and downstream devices with fast fault interruption.
BRHH250 carries UL 490 certification and Federal Specifications W-C376 compliance. These markings indicate regulatory acceptance and suitability for centralized electrical distributions in multiple markets, including commercial and industrial settings.
The BR family includes a limited lifetime residential warranty and a 1-year commercial warranty. Eaton provides documentation and warranty guidance for BR breakers, with additional resources like the warranty PDF to clarify coverage and claim procedures.
