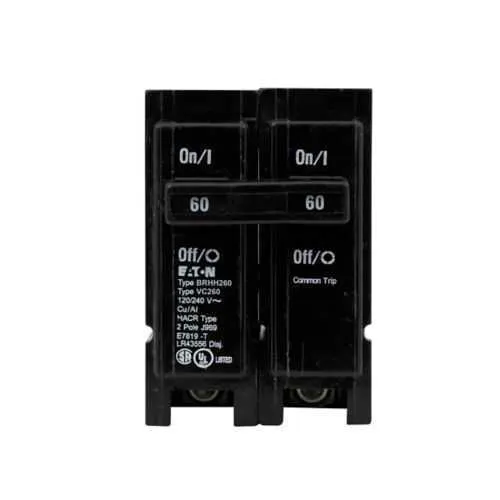

Eaton BRHH260 Type BR breaker - 42 kAIC UL 490
Part Number: BRHH260
Quick Summary
Eaton BRHH260 thermal magnetic circuit breaker provides overcurrent protection for BR load centers in commercial and light industrial panels. A common pain point is nuisance trips or inadequate protection during switching duties, which disrupt uptime and safety. It carries UL 490 certification and complies with Federal Specifications W-C376, with optional HACR and shunt-trip capabilities noted in the catalog. For panel builders and maintenance teams, the 60 A, 120/240 V rating and plug‑on mounting translate to faster, safer installs and predictable performance. This combination supports BR Loadcenters and common-trip protection to simplify panel design and maintenance. Engineers can rely on consistent interrupt performance across 10-150 A ranges as catalog notes indicate.
Product Information
Extended Description
BRHH260 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR breaker,60 A,42 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH260
UPC
786676382601
Product Length/Depth
2.4 in
Product Height
2.75 in
Product Width
2 in
Product Weight
0.8 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR breaker
Amperage Rating
60 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
Feature: 60 A two-pole design with 120/240 V rating aligns with common branch circuit loads in commercial panels. Business impact: reduces nuisance trips, delivers reliable protection, and streamlines wire routing in BR Loadcenters. Application: ideal for control panels and distribution boards in light industrial facilities. Feature: 42 kAIC interrupt rating and common breaker trip enhances fault clearance and system safety. Business impact: minimizes equipment damage and downtime during short-circuit events, supporting safer installations in high-load environments. Application: main distribution and machine control panels where fault current can be high. Feature: Plug-on mounting with #4-1/0 AWG Cu/Al wire size supports rapid installation and clean wiring within tight panel spaces. Business impact: reduces installation time and labor costs while improving reliability of connections. Application: compact panelboards and retrofit projects in commercial/industrial spaces. Feature: UL 490 certification and Federal Specifications W-C376 compliance provide regulatory assurance and vendor confidence. Business impact: lowers procurement risk and simplifies compliance audits, especially for regulated industries. Application: regulated electrical installations and safety-critical panels. Feature: Compact dimensions and light weight (2.4 in D, 2.75 in H, 2 in W; 0.8 lb) enable higher panel density and easier handling during maintenance. Business impact: increases usable space in crowded enclosures and improves serviceability. Application: high-density electrical distribution cabinets and machine control panels.
Get a Quick Quote for a Eaton BRHH260
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRHH260?
Enquire Now
FAQs
Yes. The BRHH260 is designed for Type BR Loadcenters and uses plug-on mounting, simplifying field installation. It accepts #4-1/0 AWG Cu/Al conductors and is rated for 120/240 V at 60 A with a two-pole configuration, enabling quick, reliable panel upgrades without specialized tools.
BRHH260 provides a 60 A amperage rating, 2-pole configuration, 120/240 V operation, and a 42 kAIC interrupt rating with a common trip. These specs deliver strong fault-clearing capability for BR Loadcenters, reducing arc energy exposure to downstream equipment and improving overall system safety.
Yes. With its two-pole 60 A design, plug-on mounting, and compatibility with BR Loadcenters, BRHH260 is well-suited for machine control panels and commercial distribution boards where reliable short-circuit protection and ease of installation are critical.
BRHH260 is UL 490 certified and complies with Federal Specifications W-C376. These certifications ensure compliance with safety and government standards, support procurement audits, and enhance confidence in performance for regulated electrical installations.
The compact size and light weight (2.4 x 2.75 x 2 inches; 0.8 lb) simplify servicing in dense panels, while plug-on mounting reduces installation time. With UL 490 compliance and a proven 42 kAIC interrupt capability, you gain predictable protection and potential labor savings over time, justifying lifecycle costs.
