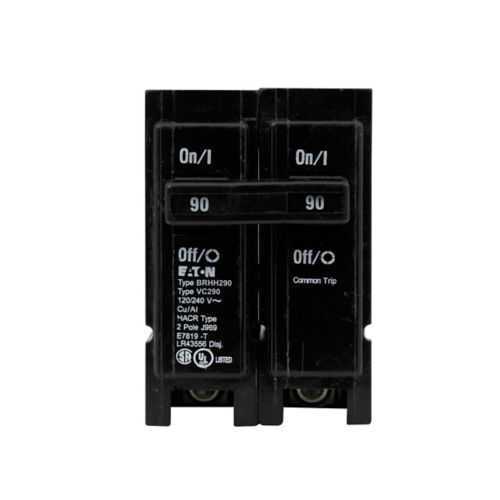

Eaton BRHH290 BR Thermal Magnetic Circuit Breaker - 42 kAIC
Part Number: BRHH290
Quick Summary
Eaton BRHH290 is a thermal magnetic circuit breaker designed for Type BR load centers in electrical panels. Installers often contend with nuisance trips and space constraints in compact panels, leading to downtime and maintenance headaches. UL 490 certification and Federal Specifications W-C376 compliance provide safety assurance and procurement eligibility in regulated environments. With plug-on mounting, a 1-inch BR footprint, and compatibility with BR load centers, it delivers reliable protection while simplifying future upgrades.
Product Information
Extended Description
BRHH290 Eaton: Eaton BR thermal magnetic circuit breaker,Type BR 1-Inch plug-on circuit breaker,90 A,42 kAIC,Two-pole,120/240V,BRH,Common breaker trip,#4-1/0 AWG Cu/Al,Q28,BRH,Type BR Loadcenters
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHH290
UPC
786676382908
Product Length/Depth
2.5 in
Product Height
3 in
Product Width
2 in
Product Weight
0.6 lb
Compliances
Federal Specifications Classification W-C376
Certifications
UL 490
Catalog Notes
10-150A. single-, two- and three-pole, selected amperageavailable in switching duty, HACR, shunt trip and high magnetic setting
Used with
Type BR Loadcenters
Type
Type BR 1-Inch plug-on circuit breaker
Amperage Rating
90 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
42 kAIC
Main circuit breaker
BRH
Wire size
#4-1/0 AWG Cu/Al
Number of poles
Two-pole
Quantity
28
90 A amperage rating provides robust protection for demanding feeder and branch circuits, reducing the risk of nuisance trips while allowing panel loads to peak without compromise. This translates into lower downtime and steadier process uptime in manufacturing and data-center environments. A 42 kAIC interrupt rating enables safe clearance of high fault currents, protecting personnel and critical equipment and improving overall system resilience in industrial panels. The Type BR 1-Inch plug-on mounting simplifies retrofits and new installs, saving installation time and reducing panel space requirements, which lowers labor costs and project schedules. Wire size compatibility to #4-1/0 AWG Cu/Al supports direct connections for large feeders, minimizing lugs and splices and aligning with NEC conductor sizing practices. The two-pole common-trip design ensures coordinated protection across circuits, while catalog notes indicate selectable options such as HACR, shunt trip, switching duty, and high magnetic settings for motor loads. Used with Type BR Loadcenters and UL 490 certified with W-C376 compliance, the BRHH290 fits regulatory requirements and procurement standards for a wide range of panel builds.
Get a Quick Quote for a Eaton BRHH290
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRHH290?
Enquire Now
FAQs
Yes. The BRHH290 is a Type BR 1-Inch plug-on circuit breaker designed specifically for BR Load Centers, providing reliable protection with a two-pole configuration and common trip.
The BRHH290 has a 42 kAIC interrupt rating, enabling safe interruption of high fault currents typical in commercial and light industrial panels.
Catalog notes indicate options include switching duty, HACR, shunt trip, and high magnetic settings, allowing customization for motor loads and specific protection schemes.
The BRHH290 is UL 490 certified and complies with Federal Specifications W-C376, aligning with safety and procurement requirements in regulated environments.
Install the BRHH290 using the plug-on mounting method in BR Load Centers; it supports #4-1/0 AWG Cu/Al conductors and is designed for rapid replacement or upgrades in existing BR systems.
