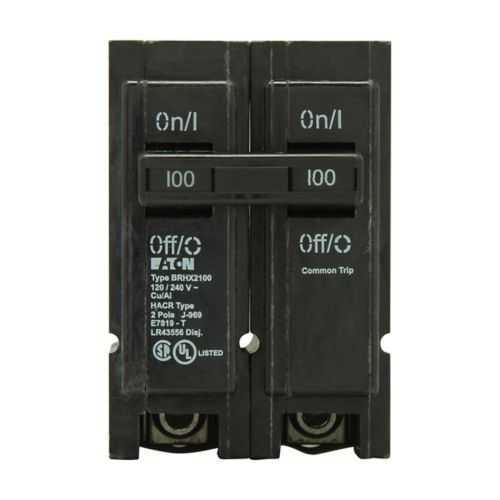

Eaton BRHX2100 BR Thermal Magnetic Circuit Breaker - 22 kAIC
Part Number: BRHX2100
Quick Summary
Eaton BRHX2100 thermal magnetic circuit breaker protects electrical distribution panels in industrial applications. It delivers reliable overcurrent protection while helping minimize nuisance trips that disrupt production. With a 100 A rating and a 22 kAIC interrupt threshold at 120/240 V, the BRHX2100 comes in a compact two-pole, plug-on package. Certification specifics are provided by the manufacturer, and region‑specific approvals should be confirmed with Eaton. The unit carries a one-year warranty, reinforcing its suitability for mission-critical environments. For teams seeking dependable protection that fits standard panel construction and easy maintenance, the BRHX2100 offers tangible value in reducing downtime and enhancing system reliability.
Product Information
Extended Description
BRHX2100 Eaton: Eaton BR thermal magnetic circuit breaker,Quicklag Type BRHX circuit breaker,100 A,22kAIC,Two-pole,120/240V,BRHX,Non-interchangeable,100,Plug-on,BRHX
Product Name
Eaton BR thermal magnetic circuit breaker
Catalog Number
BRHX2100
UPC
786689041656
Product Length/Depth
1.9 in
Product Height
3 in
Product Width
2.6 in
Product Weight
0.75 lb
Warranty
1 year
Certifications
Contact Manufacturer
Type
Quicklag Type BRHX circuit breaker
Amperage Rating
100
Voltage rating
120/240 V
Trip Type
Non-interchangeable
Circuit breaker type
BR
Mounting Method
Plug-on
Interrupt rating
22 kAIC
Main circuit breaker
BR
Connection
Plug-on
Number of poles
Two-pole
Trip rating
100
