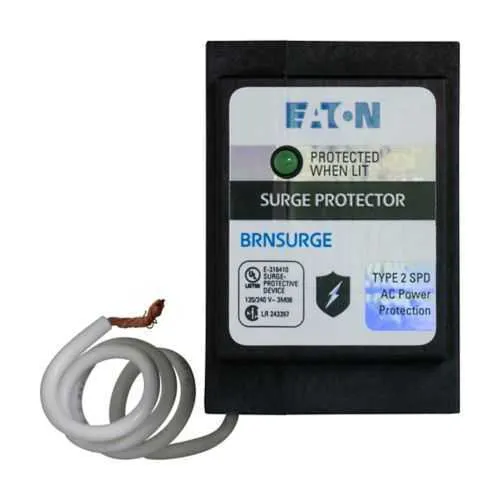

Eaton BRNSURGECS Surge Protection Device - UL 1449/cUL
Part Number: BRNSURGECS
Quick Summary
Eaton BRNSURGECS surge protection device safeguards electrical panels in industrial environments. Nuisance surges and equipment damage can derail uptime, drive maintenance costs, and complicate compliance. This unit carries cUL certification and UL 1449 listings, with Type BR compatibility and 50/60 Hz operation, enabling straightforward integration into existing BR panel architectures. By delivering reliable protection at the device level, it supports faster installation, reduced nuisance tripping, and measurable cost savings through extended equipment life and fewer field failures. For engineers and procurement teams, the module’s compact clamshell two-pole design reduces panel depth requirements while maintaining robust surge protection performance.
Product Information
Extended Description
BRNSURGECS Eaton: Eaton Type BR circuit breaker surge protective device, Clamshell - Two Pole Surge Protective Device
Product Name
Eaton Type BR plug on module surge protection device
Catalog Number
BRNSURGECS
UPC
786689353704
Product Length/Depth
2.657 in
Product Height
2.9 in
Product Width
1.98 in
Product Weight
0.35 lb
Certifications
cUL Certified UL 1449
Type
Type BR
Frequency rating
50/60 Hz
Interrupt rating
10 kAIC
Nominal Discharge Current
3 kA
Protection
L-N, L-L
Measured limiting voltage
600 V
Maximum continuous operating voltage
150 V L-N, 300 V L-L
Surge current
18 kA
Short-circuit rating
10 kA
Feature → Business Impact → Application: Type BR plug-on module design enables quick retrofits in BR panels, reducing installation time and labor costs while preserving panel space for other devices. This translates to faster project timelines and lower field labor expenses in automation upgrades or new machine builds. Feature → 50/60 Hz operation with a 10 kAIC interrupt rating delivers robust protection against frequent transients, protecting critical loads, drives, and programmable logic controllers, improving uptime and extending equipment life across manufacturing lines. Application: ideal for control panels in automotive, packaging, and process industries seeking reliable surge protection without panel redesign. Feature → 3 kA nominal discharge current and 18 kA surge current capability provide strong overload tolerance, reducing nuisance trips during large transient events and safeguarding sensitive devices like PLCs, HMIs, and motor starters. Business impact: lowers unplanned downtime and maintenance costs in high‑transient environments. Application: data centers and process automation rooms requiring dependable L-N and L-L protection. Feature → Measured limiting voltage of 600 V and maximum operating voltages of 150 V L-N / 300 V L-L ensure consistent performance under varying supply conditions, supporting compliance with industry surge standards. Application: electrical distribution systems in industrial facilities that demand predictable protection margins. Feature → Compact two‑pole clamshell housing simplifies installation and replacement, facilitating maintenance and upgrades in crowded panels. Business impact: minimizes downtime during protection upgrades and reduces total cost of ownership. Application: retrofit projects and new installations where BR protection is already in place.
Get a Quick Quote for a Eaton BRNSURGECS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRNSURGECS?
Enquire Now
FAQs
Installation is performed inside an Eaton Type BR panel. The BRNSURGECS is a two-pole clamshell module that connects to L-N and L-L circuits, compatible with 50/60 Hz systems. Its compact dimensions (2.657 in depth, 2.9 in height, 1.98 in width) and 0.35 lb weight simplify mounting, wiring, and future replacement without major panel rework.
BRNSURGECS carries UL 1449 and cUL certifications, confirming compliance with surge protection requirements for electrical equipment. It is rated for 50/60 Hz operation, has a 10 kAIC interrupt rating, 3 kA nominal discharge current, and supports up to 18 kA surge current, with a measured limiting voltage of 600 V.
Yes. BRNSURGECS is designed as a Type BR plug-on module, ensuring seamless integration with existing BR panel architectures. Its clamshell two-pole design and compact footprint fit alongside other BR devices, enabling straightforward upgrades or retrofits without modifying major panel components.
Applications include industrial control panels, motor drives, automation cabinets, and data-center peripherals where L-N and L-L protection is critical. The device enhances uptime, protects PLCs and HMIs from transient events, and supports compliance with surge standards in manufacturing, packaging, and process industries.
Maintenance is minimal due to a plug-on module design that simplifies replacement. The ROI comes from reduced downtime, less field damage from transient events, and longer equipment life. Certification to UL 1449 and cUL provides confidence in reliability, while the compact form reduces retrofit costs in existing BR panels.
