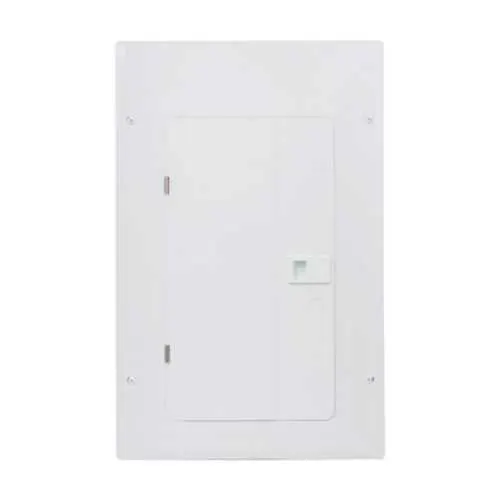

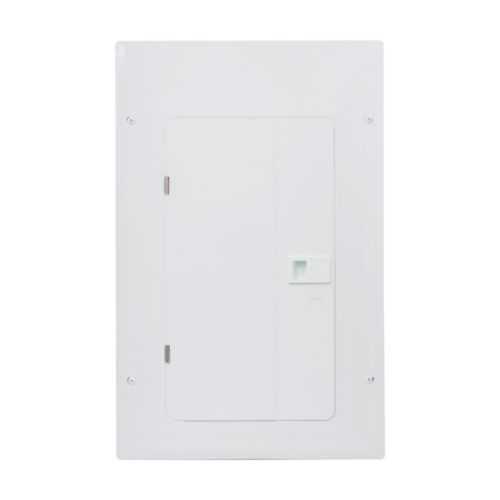

Eaton BRP12L125UGW Main Lug Loadcenter - NEMA 1
Part Number: BRP12L125UGW
Quick Summary
Eaton BRP12L125UGW is a main lug loadcenter designed to house BR 1-inch breakers for 120/240V service. For projects needing consistent power distribution in tight spaces, the main-lug-only configuration reduces panel footprint and simplifies wiring. This unit is UL 67 and UL 50 listed and comes in a rugged NEMA 1 enclosure, ensuring indoor dry-location reliability. Its 125 A rating supports modest to mid-range loads, while the 24 circuits across 12 spaces deliver scalable capacity. By combining a grounded bar with easy installation, it aligns with enclosure and electrical infrastructure needs while enabling faster builds and streamlined maintenance.
Product Information
Extended Description
BRP12L125UGW Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,125 A,X0,Aluminum, NEMA 1,10kAIC,BR2125,24 Circuits,12 pole,12 Spaces,Riser Type,Single-phase,Type BR 1-inch breakers,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP12L125UGW
UPC
786689858155
Product Length/Depth
16.75 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
15.4 lb
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
24
Number Of Poles
Single-pole
Number of spaces
12
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X0
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature → Business Impact → Application: The 12-space, 24-circuit layout enables scalable panel capacity within a compact footprint, reducing enclosure footprint and lowering installation time on new-builds or retrofit projects. Benefit: faster wiring, simpler field routing, and reduced total installed cost for small commercial and residential clinics or offices. Application: ideal for riser-type installations where space is at a premium and future expansion may be needed without additional enclosures. Feature → Business Impact → Application: 125 A main-lug design with aluminum bus reduces weight and improves handling during installation and service calls. Benefit: safer handling, easier on-site mounting, and reduced labor costs for electricians. Application: retrofit projects in basements, garages, or service closets requiring a robust yet lightweight panel solution. Feature → Business Impact → Application: Type BR 1-inch breakers compatibility and a NEMA 1 metallic enclosure with ground bar included. Benefit: plug-and-play with familiar BR components and indoor protection against dust and moisture ingress. Application: new residential or light commercial panels where reliable, code-compliant distribution is needed. Feature → Business Impact → Application: 10 kAIC interrupt rating delivers solid fault tolerance for typical short-circuit scenarios. Benefit: enhanced protection for circuits and downstream equipment, supporting safer startups and ongoing operations. Application: electrical rooms with moderate fault-current levels, satisfying common code expectations. Feature → Business Impact → Application: Cover included and box size X0 simplify logistics and installation planning. Benefit: reduced field fit-up time and improved transportability for multi-riser installations. Application: projects requiring quick deployment in tight spaces such as utility rooms or hall closets.
Get a Quick Quote for a Eaton BRP12L125UGW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP12L125UGW?
Enquire Now
FAQs
The BRP12L125UGW is designed as a BR main-lug loadcenter and is compatible with BR 1-inch breakers. It fits standard 12-space configurations and uses aluminum bus to simplify handling. Note that it is a main-lug-only unit without a main breaker, so assess your service disconnect requirements before retrofitting.
Key specs include a 125 A ampacity, 12 spaces with 24 circuits, single-phase operation, and 120/240 V rating. The enclosure is NEMA 1 with a 10 kAIC interrupt rating, and the bus is aluminum, which reduces weight and aids heat dissipation in confined spaces.
Yes. Its 125 A rating, 24 circuits, and MLO configuration suit residential service upgrades and light commercial panels. The NEMA 1 indoor enclosure plus ground bar included supports typical indoor installations, while compatibility with BR 1-inch breakers ensures familiar maintenance and replacement workflows.
The unit carries UL 67 and UL 50 certifications, reflecting compliance for enclosure safety and equipment performance in dry indoor environments. These listings help ensure reliability, code compliance, and safer operation in regulatory settings such as commercial buildings and multi-residential projects.
Lower maintenance requirements come from a robust NEMA 1 enclosure and a ground bar included in the kit. The aluminum bus reduces weight and handling effort, cutting field labor time. Over the panel’s life, this translates to faster service, easier upgrades, and a favorable total cost of ownership for projects with repeated access or future expansions.
