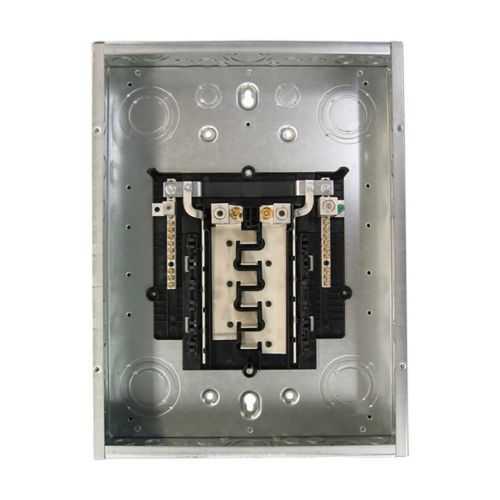

Eaton BRP12L200 Main Lug Loadcenter - UL 50/UL 67
Part Number: BRP12L200
Quick Summary
Eaton BRP12L200 is a main lug loadcenter engineered for reliable service equipment and panelboard applications. When space is tight and downtime costs rise, installers need a field‑proven solution that fits standard BR breakers and supports scalable layouts. UL 50 and UL 67 listings, a rugged NEMA 1 metallic enclosure, and a 25 kAIC interrupt rating provide safety and compliance for both commercial and light industrial environments. With a 200 A rating, aluminum bus, and 12 spaces for 24 circuits, the BRP12L200 helps you optimize service entrances while reducing inventory, installation complexity, and total cost of ownership. This design also complements Type BR 1‑inch breakers and aligns with Eaton’s long‑term warranty and support ecosystem.
Product Information
Extended Description
BRP12L200 Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X0,Aluminum, NEMA 1,Metallic,25 kAIC,Combination,NEMA 1,24 Circuits,Twenty-four pole,12 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP12L200
UPC
786689058197
Product Length/Depth
18.75 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
17.1 lb
Warranty
10 year
Certifications
UL 50 UL 67
Catalog Notes
Suitable for use as service equipment when no more than 6 main disconnecting means are provided or when not used as lighting & appliance panelboard. Has notch for brhdk125 hold-down kit.
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Mounting
Combination
Number of circuits
24
Number Of Poles
Single-pole
Number of spaces
12
Phase
Single-phase
Voltage rating
120/240V
Wire size
#1 AWG-300 kcmil Cu/Al
Box size
X2
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
NEMA rating
NEMA 1
Number of wires
3
Feature: Main lug (MLO) design simplifies service equipment configurations and minimizes backfed components. Business Impact: Reduces installation steps, speeds up commissioning, and lowers spare parts inventory. Application: Ideal for service entrances in commercial facilities where a dedicated disconnect is not required. Feature: 200 A amperage rating and 24‑circuit capability. Business Impact: Supports mid‑size loads with room to expand, improving equipment utilization and reducing panel count. Application: Suitable for light industrial panels and commercial distribution.” Feature: Aluminum bus construction. Business Impact: Lightweight, corrosion‑resistant, and cost‑effective compared with copper alternatives; easier handling during installation. Application: Indoor panel installations where weight and ease of routing matter. Feature: NEMA 1 metallic enclosure with 25 kAIC interrupt rating. Business Impact: Enhanced protection against dust and incidental impacts while delivering robust fault tolerance. Application: Indoor environments demanding reliable, code‑compliant enclosures. Feature: Compatibility with Type BR 1‑inch breakers. Business Impact: Streamlines compatibility, spares extensive reconfiguration, and improves maintenance planning. Application: Retrofit projects and new builds using BR breakers in a consolidated switchgear footprint. Feature: 12 spaces, 24 circuits, single‑phase 120/240 V. Business Impact: Clear circuit organization and straightforward wiring schemes, reducing commissioning time. Application: Control panels and distribution centers in offices, retail, and light manufacturing. Feature: 10‑year warranty and UL 50 / UL 67 certifications. Business Impact: Long‑term reliability with documented compliance, lowering lifecycle risk and total cost of ownership. Application: Purchases requiring formal reliability guarantees and regulatory alignment.
Get a Quick Quote for a Eaton BRP12L200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP12L200?
Enquire Now
FAQs
The BRP12L200 is designed as a BR family main lug loadcenter, supporting Type BR 1‑inch breakers. It uses a single‑phase 120/240 V configuration with an aluminum bus and 24 circuit positions. For downstream devices, ensure they match BR breaker ratings and follow manufacturer installation guidelines to maintain UL 50/UL 67 compliance and the 25 kAIC fault current rating.
The BRP12L200 features a 25 kAIC interrupt rating and operates at 120/240 V, single‑phase. This combination supports typical commercial and light industrial loads while maintaining safe fault interruption within the enclosure. The 12‑space, 24‑circuit layout further enables organized distribution for mid‑sized applications.
Yes, the BRP12L200 is suitable as service equipment when not providing more than six main disconnecting means. It carries UL 50 and UL 67 listings and a NEMA 1 enclosure, which align with common building codes for indoor service equipment. For new builds, verify site requirements and panelboard configuration to ensure compliance.
The BRP12L200 carries UL 50 and UL 67 certifications and uses a NEMA 1 metallic enclosure. These certifications and enclosure type matter because they confirm electrical safety, reliability, and indoor protection against dust and incidental contact. They also support regulatory compliance for commercial installations and streamline acceptance testing during commissioning.
With a 10‑year warranty and a robust 25 kAIC rating, the BRP12L200 offers long‑term reliability and reduced maintenance risk. Its aluminum bus reduces weight during installation, and its 12 spaces/24 circuits support scalable layouts, lowering future panel counts. Overall, expect lower lifecycle costs, faster commissioning, and fewer field service interruptions.
