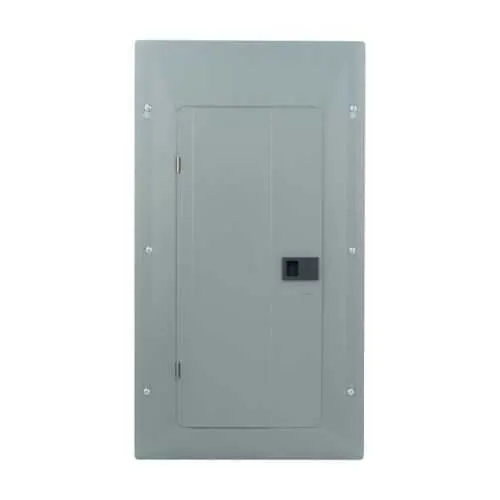

Eaton BRP12L200R Main Lug Loadcenter - NEMA 3R
Part Number: BRP12L200R
Quick Summary
Eaton BRP12L200R Main Lug Loadcenter delivers main-lug distribution for 24 circuits in commercial electrical rooms. It addresses space constraints, quick installation, and code-compliant protection in rugged environments. This unit carries UL 67 and UL 50 approvals, is rated NEMA 3R for outdoor use, and supports a 10 kAIC interrupt rating. Ideal for facilities seeking reliable, scalable enclosure infrastructure with BR series compatibility and long-term value. The combination of robust enclosure engineering, aluminum bus, and BR 1-inch breaker compatibility makes it a practical choice for projects prioritizing reliability and lifecycle value in enclosures & electrical infrastructure.
Product Information
Extended Description
BRP12L200R Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X1,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,24 Circuits,Single-pole,12 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP12L200R
UPC
786689059163
Product Length/Depth
3.88 in
Product Height
18.75 in
Product Width
14.31 in
Product Weight
15 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Number of circuits
24
Number Of Poles
Single-pole
Number of spaces
12
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X1
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 3R
Number of wires
3
Feature: 24 circuits and 12 spaces in a single BR main-lug panel. Business Impact: Enables more circuits without adding a separate enclosure, reducing space and material costs. Application: ideal for commercial and light industrial panel distribution inside service rooms. Feature: 200 A amperage rating and BR 1-inch breaker compatibility. Business Impact: simplifies upgrades and maintenance, supports future load growth. Application: retrofit projects and new builds requiring scalable protection. Feature: NEMA 3R metallic enclosure. Business Impact: weather-resistant, durable protection for indoor and outdoor installations. Application: outdoor electrical rooms and exposed service areas. Feature: 10 kAIC interrupt rating with aluminum bus. Business Impact: robust fault protection and lighter weight facilitating handling and installation. Application: high fault-risk environments and rapid commissioning. Feature: 12 spaces, 120/240 V single-phase design with cover included. Business Impact: compact footprint supports quick wiring, straightforward commissioning, and reduced total installed cost. Application: facilities needing efficient, code-compliant distribution for BR-series protection.
Get a Quick Quote for a Eaton BRP12L200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP12L200R?
Enquire Now
FAQs
Install the BRP12L200R on a solid, rated surface in a location suitable for a NEMA 3R enclosure. Use appropriate mounting hardware, ensure clearances around the 18.75 in height and 14.31 in width, and verify cover engagement for enclosure integrity. It supports single-phase 120/240 V with BR 1-inch breakers for straightforward wiring.
A 200 A rating supports substantial load demands, while 24 circuits and 12 spaces provide scalable distribution without additional enclosures. This combination reduces cabinet count, simplifies future expansion, and improves reliability in commercial or light industrial settings while remaining compatible with BR-series 1-inch breakers.
Yes. The enclosure is NEMA 3R rated with a metallic construction, designed for outdoor or damp environments. The rugged enclosure protects internal components from weather exposure, enabling reliable service entrances and outdoor electrical rooms while maintaining compliance with UL 67 and UL 50 standards.
The BRP12L200R carries UL 67 and UL 50 certifications, reinforcing safety and performance for electrical enclosures. It is designed to meet NEMA 3R requirements and provides a 10 kAIC interrupt rating, aligning with common BMS, facility, and industrial protection standards for BR load centers.
Eaton provides a 10-year warranty for the BRP12L200R, reflecting long-term reliability and lifecycle cost savings. Maintenance typically focuses on periodic visual inspections, verifying enclosure integrity, and ensuring BR 1-inch breakers remain properly seated and bolted. Access to Eaton’s datasheets and warranty documents supports ongoing support and compliance.
