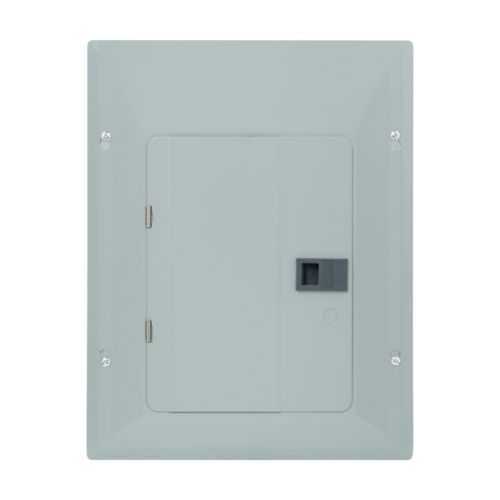

Eaton BRP16L125 Main Lug Loadcenter - UL Listed Enclosure
Part Number: BRP16L125
Quick Summary
Eaton BRP16L125 main lug loadcenter provides compact distribution for 32 circuits in a 16-space enclosure. A common pain point is finding a rugged, code-compliant panel that fits tight spaces without compromising serviceability. UL listings UL 67 and UL 50, plus a NEMA 1 metallic enclosure, support safety and reliability in demanding environments. With 125 A capacity and BR 1-inch breaker compatibility, it streamlines upgrades while reducing spare parts and installation time. This enclosure integrates seamlessly with standard panel components, delivering predictable performance, lower total cost of ownership, and faster project delivery.
Product Information
Extended Description
BRP16L125 Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,125 A,X1,Aluminum,Gray, NEMA 1,Metallic,10kAIC,BR2125,Surface,flush,32 Circuits,Twenty-four pole,16 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP16L125
UPC
786689053116
Product Length/Depth
18.75 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
18.8 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR2125
Mounting
Surface, flush
Number of circuits
32
Number Of Poles
Single-pole
Number of spaces
16
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X1
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
The 125 A main lug design supports a 32-circuit capacity across 16 spaces, enabling efficient panel scheduling and procurement for commercial and light-industrial applications. Aluminum bus material minimizes weight during handling while offering good conductivity and corrosion resistance, translating to easier field assembly and lower labor costs. The metallic NEMA 1 enclosure with surface or flush mounting delivers robustness and code-compliant protection against dust and incidental contact, helping installers meet safety standards with confidence. Compatibility with Type BR 1-inch breakers reduces spare parts diversity and extends the life of existing installations, simplifying upgrades and maintenance. A 10 kAIC interrupt rating provides solid fault protection for typical service conditions, lowering risk during short-circuit events. The included cover and durable gray finish support long-term reliability in demanding environments, backed by a 10-year warranty for total-cost-of-ownership resilience.
Get a Quick Quote for a Eaton BRP16L125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP16L125?
Enquire Now
FAQs
The BRP16L125 supports both surface and flush mounting, enabling flexible installation in new or retrofit panels. It features a gray metallic NEMA 1 enclosure with a cover included, designed for easy access during wiring and maintenance. This configuration helps ensure code compliance while minimizing field rework and downtime during upgrades.
This loadcenter provides a 125 A amperage rating, 120/240 V single-phase operation, and a total of 32 circuits across 16 spaces. It has a 10 kAIC interrupt rating and is designed to work with BR 1-inch breakers, ensuring reliable fault protection and straightforward integration with existing BR-type panels.
Commercial facilities, office buildings, and light-industrial environments benefit from the BRP16L125 due to its compact footprint, straightforward BR breaker compatibility, and robust enclosure. It supports service upgrades, equipment additions, and panel modernization projects while maintaining easy access for routine maintenance and inspections.
The BRP16L125 is UL listed under UL 67 and UL 50, with a NEMA 1 metallic enclosure that provides dust and incidental contact protection. These certifications and ratings support compliance with electrical codes and utility requirements in typical commercial and light-industrial environments.
Eaton provides a 10-year warranty on the BRP16L125, reflecting confidence in long-term reliability. Warranty coverage includes typical manufacturing defects and performance under specified conditions. Documentation, warranty guides, and access to spare parts or compatibility information are available through Eaton’s product resources and distributor support channels.
