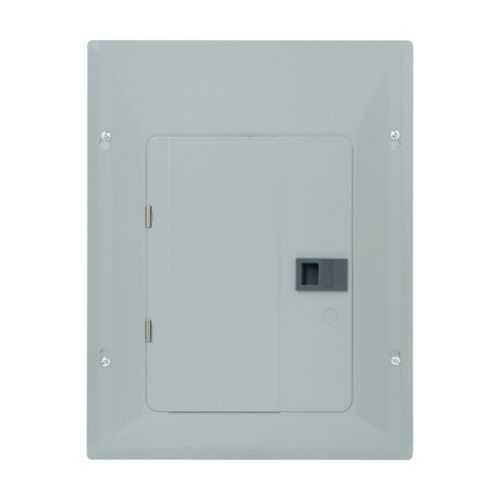

Eaton BRP16L125G Main Lug Loadcenter - UL 67
Part Number: BRP16L125G
Quick Summary
BRP16L125G is an Eaton main lug loadcenter for 120/240V distribution in commercial electrical panels. Its compact footprint and surface/flush mounting reduce space constraints and simplify retrofit or new installations. UL 67 and UL 50 certifications, along with a NEMA 1 metallic enclosure and 10 kAIC interrupt rating, provide dependable indoor performance. The unit is designed for industrial readiness, supporting 32 circuits across 16 spaces and BR 1-inch breakers, delivering reliable expansion and long-term value. Eaton backs it with a 10-year warranty, cover included, and surface-life friendly mounting that speeds service. This combination supports faster installation timelines, easier maintenance, and compliant installations for facilities like schools, data centers, and light manufacturing.
Product Information
Extended Description
BRP16L125G Eaton: Eaton Eaton BR main lug loadcenter, Ground bar, Main lug only, 125 A, X1, Aluminum, Gray, NEMA 1, Metallic, 10kAIC, BR2125, Surface, flush, NEMA 1, 32 Circuits, Twenty-four pole, 16 Spaces, Two hots, a neutral, and a ground, 120/240V
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP16L125G
UPC
786689053123
Product Length/Depth
18.75 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
18.8 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR2125
Mounting
Surface, flush
Number of circuits
32
Number Of Poles
Single-pole
Number of spaces
16
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X1
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
125 A rating and 32 circuits across 16 spaces enable flexible distribution in a compact enclosure. This configuration supports scalable expansion and reduces the need for early upgrades, cutting total installed cost. Ideal for mid-size commercial feeders and light industrial panels where space is at a premium. Aluminum bus material with a metallic NEMA 1 enclosure and a 10 kAIC interrupt rating deliver durable performance in indoor environments. That combination minimizes maintenance and provides reliable fault interruption, improving system uptime. Suitable for factory floors, data centers, and other indoor electrical rooms. Surface and flush mounting with a cover included simplifies installation and service. Field wiring remains straightforward with a ground bar included for solid grounding and code compliance. Suitable for retrofit projects and new builds where quick enclosure integration matters. Compatibility with BR 1-inch breakers ensures easy sourcing and familiar operation. This reduces training time for technicians and simplifies future upgrades, reducing downtime during panel changes. The BR family is well-supported by Eaton parts catalogs and service networks. A 10-year warranty and Eaton engineering backing provide lifecycle cost advantages. Long-term reliability lowers maintenance calls, while the unit's compact footprint saves floor space and supports lean facility design.
Get a Quick Quote for a Eaton BRP16L125G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP16L125G?
Enquire Now
FAQs
Install the BRP16L125G by first confirming the panel rating is 125 A and service is 120/240V. Choose a surface or flush mounting arrangement, mount the enclosure securely, and install the ground bar with proper bonding. Insert BR 1-inch breakers as specified, connect neutrals and grounds to the terminal bar, then fit the cover and verify wiring with a code-compliant labeling scheme.
Yes. The BRP16L125G is designed for Type BR 1-inch breakers and uses the BR series interface, enabling straightforward substitution or expansion. With 32 circuits across 16 spaces and a 125 A main rating, you can source BR 1-inch breakers easily from Eaton's catalog and service networks, ensuring consistent performance and availability.
Key factors include its 125 A amperage rating, 32 circuit capacity, 10 kAIC interrupt rating, and 120/240V operation. The aluminum bus with a NEMA 1 metal enclosure provides durable indoor service, while surface/flush mounting simplifies installation in tight spaces. The unit's MLO configuration and 10-year warranty support reliable, long-term panel distribution.
Yes. This model carries UL 67 and UL 50 certifications and uses a NEMA 1 enclosure, positioning it for standard indoor electrical rooms. The 10 kAIC interrupt rating further ensures safe fault clearing, and the cover, ground bar, and metal enclosure help meet typical regulatory and installation requirements for commercial and light industrial facilities.
The 10-year warranty reduces lifecycle risk while the robust enclosure and high interrupt rating minimize maintenance calls and downtime. Compatibility with BR 1-inch breakers simplifies parts sourcing and technician training, speeding upgrades or expansions. Overall, users gain faster project delivery, improved reliability, and lower total cost of ownership for indoor distribution panels.
