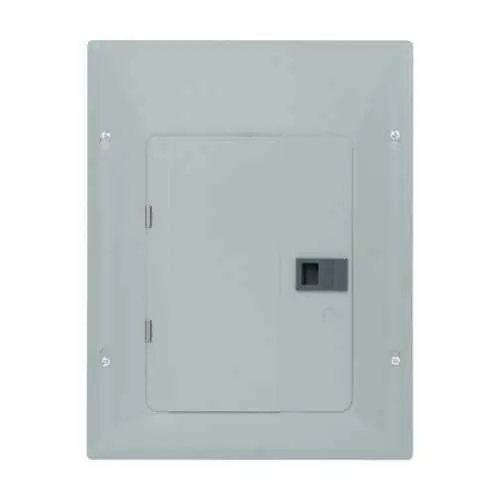

Eaton BRP16L125R Main Lug Loadcenter - NEMA 3R
Part Number: BRP16L125R
Quick Summary
The Eaton BRP16L125R main lug loadcenter is designed to distribute power in commercial and light industrial panels. Facing tight spaces and the need to upgrade existing panels without downtime, this unit offers a compact, main-lug solution. UL 67 and UL 50 certified, paired with a NEMA 3R enclosure, ensure rugged performance in outdoor or damp locations. With a 125 A rating and compatibility with Type BR 1-inch breakers, it supports dependable expansion while meeting code requirements. Designed for reliable enclosures & electrical infrastructure, it helps engineers reduce footprint, simplify maintenance, and streamline procurement.
Product Information
Extended Description
BRP16L125R Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,125 A,X1,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,32 Circuits,Single-pole,16 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#6–2/0
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP16L125R
UPC
786689059200
Product Length/Depth
3.88 in
Product Height
18.75 in
Product Width
14.31 in
Product Weight
15 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Number of circuits
32
Number Of Poles
Single-pole
Number of spaces
16
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X1
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 3R
Number of wires
3
125 A rating provides reliable service for distributed loads in mid-sized facilities, aligning with standard commercial electrical design practices. The BRP16L125R supports 120/240 V systems and accommodates up to 32 circuits across 16 spaces, enabling scalable distribution within a compact footprint while preserving service continuity during expansion and providing clear visibility for future protection upgrades. Main lug only (MLO) configuration with Type BR 1-inch breakers keeps assemblies straightforward and cost-effective, allowing circuit additions or protection adjustments without repositioning a main breaker and reducing field labor. Aluminum bus reduces weight compared with copper equivalents, easing handling during installation and service while maintaining high conductivity and durability, which accelerates mounting and retrofit projects. The NEMA 3R metallic enclosure provides outdoor and damp-location suitability, backed by a 10 kAIC interrupt rating that enhances fault tolerance and protects downstream equipment. Box size X1 and a cover included simplify mounting and enclosure readiness, enabling fast deployment with BR series accessories and clear labeling for reliable integration into enclosures & electrical infrastructure.
Get a Quick Quote for a Eaton BRP16L125R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP16L125R?
Enquire Now
FAQs
The BRP16L125R is a BR series 32-circuit, 16-space main lug loadcenter designed for 120/240 V single-phase systems. It uses Type BR 1-inch breakers and features a main-lugs-only (MLO) configuration with a NEMA 3R metallic enclosure. It fits with Eaton BR accessories and is suitable for standard commercial and light-industrial electrical enclosures.
The 10 kAIC interrupt rating denotes the maximum fault current the loadcenter can safely interrupt without enclosure or conductor damage. This supports higher fault current environments, aids upstream protection coordination, and reduces the risk of arc damage during short circuits, contributing to overall system reliability and safety.
Yes. The BRP16L125R features a NEMA 3R metallic enclosure designed for outdoor and damp locations. Combined with UL certifications, it provides weather resistance and reliability in exterior panels, while the aluminum bus keeps weight manageable for field installations and service in both indoor and outdoor settings.
This loadcenter is UL 67 and UL 50 listed, with a NEMA 3R enclosure. These certifications confirm compliance with low‑voltage power distribution standards, ensuring enclosure integrity, electrical safety, and dependable performance under typical service conditions in commercial and industrial environments.
A ten-year warranty supports long-term reliability, while the MLO design with a cover simplifies field upgrades and routine maintenance. The aluminum bus reduces weight and installation time, contributing to lower labor costs. Together, these features translate to lower lifecycle costs and a faster return on investment for medium-scale distribution projects.
