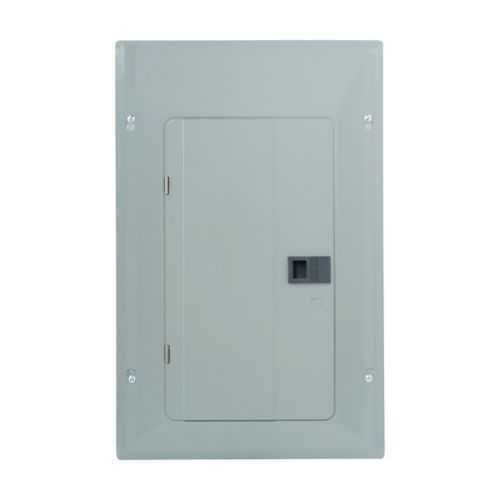

Eaton BRP16L150 Main Lug Loadcenter - NEMA 1, 10 kAIC
Part Number: BRP16L150
Quick Summary
BRP16L150 main lug loadcenter distributes 120/240 V power in commercial electrical panels. Projects often struggle with tight spaces, future expansion constraints, and compatibility with BR-type breakers. UL 67 and UL 50 listed with a NEMA 1 metallic enclosure reinforce safety and reliability in rugged environments. As an enclosure and electrical infrastructure solution, this unit supports BR 1-inch breakers and broad compatibility, delivering value through easier installation, predictable maintenance, and long-term lifecycle efficiency.
Product Information
Extended Description
BRP16L150 Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,150 A,X3,Aluminum,Gray, NEMA 1,Metallic,10kAIC,CSR2125,Surface,flush,NEMA 1,32 Circuits,Twenty-four pole,16 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP16L150
UPC
786689053130
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
19.5 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
150 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
CSR2125
Mounting
Surface, flush
Number of circuits
32
Number Of Poles
Single-pole
Number of spaces
16
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X3
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 150 A amperage rating and 32 circuits across 16 spaces. Business impact: Supports ongoing load growth for small to mid-size applications without a panel retrofit, reducing downtime and capital expenditure. Application: suitable for light commercial offices, retail spaces, and service enclosures where reliable 120/240 V distribution is needed. Feature: Aluminum bus material. Business impact: Lighter weight with robust conductivity, simplifying handling during installation and maintenance while reducing structural load requirements. Application: preferred in roofed or balcony areas where weight is a concern and frequent panel access is expected. Feature: NEMA 1, metallic enclosure with a cover included. Business impact: Indoor protection against dust and incidental contact, improving safety and longevity of the installation. Application: indoor mechanical rooms, corridors, or finished spaces in commercial facilities.Feature: Surface, flush mounting versatility. Business impact: Flexible mounting options cut installation time and allows retrofits in existing enclosures without significant remodeling. Application: wall-mounted panels in offices, retail, or light manufacturing spaces.Feature: Compatibility with BR 1-inch breakers. Business impact: Broad part availability and easier spares management, lowering total-cost-of-ownership. Application: new builds and retrofit projects seeking standard BR-type protection.Feature: 10 kAIC interrupt rating. Business impact: Enhanced short-circuit protection for typical commercial/industrial feeders, reducing fault-related damage and downtime. Application: service feeders and distribution panels in moderate fault-current environments.Feature: 10-year warranty and UL/CSA considerations. Business impact: Mitigates risk over the product lifecycle with proven supplier support and regulatory alignment. Application: procurement programs prioritizing long-term value and compliance. Feature: BRP16L150 documentation and certifications (UL 67, UL 50). Business impact: Simplifies compliance and audit processes for facilities needing documented ratings. Application: regulated environments such as hospitals, offices, and light industrial facilities.
Get a Quick Quote for a Eaton BRP16L150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP16L150?
Enquire Now
FAQs
The BRP16L150 is designed as a BR main lug loadcenter and is compatible with BR 1-inch breakers. It supports 32 circuits across 16 spaces and offers surface or flush mounting. When planning a retrofit, ensure the panel’s internal width matches the 16-space footprint and verify conductor sizes (two hots, a neutral, and a ground) for proper termination.
Key specs include a 150 A rating, 120/240 V voltage, aluminum bus, 32 circuits, 16 spaces, and single-phase operation. The enclosure is NEMA 1 metallic with a cover included, and the unit features a 10 kAIC interrupt rating. It’s intended for indoor use and surfaces/flush mounting.
Yes, the BRP16L150 carries UL 67 and UL 50 certifications, confirming enclosure integrity and electrical safety for standard distribution panels. It uses a NEMA 1 metallic enclosure and complies with relevant industry standards. This supports regulatory alignment for commercial and light industrial installations.
This loadcenter is ideal for small commercial spaces, offices, retail environments, and light manufacturing where a reliable 120/240 V distribution solution with space for expansion is required. Its 16-space, 32-circuit configuration suits projects needing orderly, scalable wiring and easy maintenance access.
Plan for proper clearance for surface or flush mounting, confirm compatibility with BR 1-inch breakers, and size feeders to match the 150 A rating. The aluminum bus simplifies installation and the NEMA 1 enclosure provides indoor protection, contributing to reduced downtime and predictable maintenance costs over the product lifecycle.
