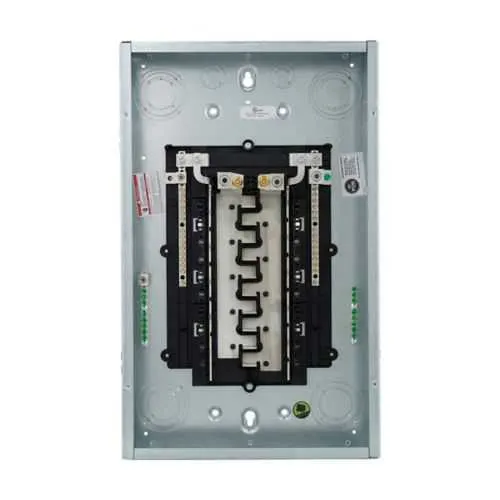

Eaton BRP20L150G Main Lug Loadcenter - NEMA 1
Part Number: BRP20L150G
Quick Summary
Eaton BRP20L150G main lug loadcenter is designed for dependable 150 A distribution in small commercial and residential panels. Engineers often encounter space constraints when upgrading to higher ampacity solutions, risking wiring crowding and longer install times. UL 50 and UL 67 listings support reliable enclosure performance, while the NEMA 1 rating suits indoor environments; the 10 kAIC interrupt rating adds fault-tolerant service. A compact 23-inch depth footprint, aluminum bus, and a cover included with the unit enable easier handling and faster field wiring. This combination delivers real business value by improving install speed, reducing downtime, and ensuring ongoing compliance for BR loadcenter installations.
Product Information
Extended Description
BRP20L150G Eaton: Eaton Eaton Type BR 1-inch PON loadcenter, 150A, MLO, 20 spaces, w/ ground bar, Single-phase, cover included, Two hots, a neutral, and a ground wire, NEMA1, 10 kAIC, Aluminum Bus
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP20L150G
UPC
786689053253
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
21 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
150 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
CSR2125
Number of circuits
40
Number Of Poles
Single-pole
Number of spaces
20
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature → MLO configuration with 20 spaces and 40 circuits enables scalable distribution without panel replacement, delivering improved expansion capability and reduced total cost of ownership. Business Impact → Contractors achieve faster wiring, shorter project timelines, and better space management in small commercial applications. Application → Ideal for 120/240V single-phase service where Type BR 1-inch breakers are compatible and a ground bar is required for reliable grounding.Feature → NEMA 1 metallic enclosure protects indoor installations from dust and incidental impact, supporting safer, code-compliant setups. Business Impact → Enhanced durability reduces maintenance needs and supports longer service life in mechanical rooms and basements. Application → Suitable for indoor electrical rooms where rugged protection and easy access are priorities.Feature → Aluminum bus construction lowers weight without compromising conductivity, simplifying handling and reducing installation time on site. Business Impact → Lower labor costs and easier retrofit in tight spaces. Application → Valuable in retrofit projects or new builds with space constraints.Feature → Cover included and a compact footprint streamline field installation and protect contents during shipping and setup. Business Impact → Fewer missing parts and faster commissioning, reducing variability on job sites. Application → Beneficial for contractor workflows that require complete, ready-to-wire enclosures.Feature → Certifications and technical specs, including UL 50, UL 67, 10 kAIC rating, and NEMA 1 enclosure, provide confidence in compliance and performance. Business Impact → Lower risk of non-compliance and reduced QA checks during audits. Application → Essential for facilities seeking robust protection and regulated electrical distribution.
Get a Quick Quote for a Eaton BRP20L150G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP20L150G?
Enquire Now
FAQs
The BRP20L150G is engineered as a main lug (MLO) loadcenter that accepts Type BR 1-inch breakers, enabling seamless integration with BR-series protection devices. With 20 spaces and 40 circuit capacity, it supports scalable distribution while maintaining a compact footprint and straightforward wiring, making retrofits and new installations efficient and code-compliant.
Key ratings include a 150 A amperage, 120/240 V single-phase supply, 10 kAIC interrupt capacity, and a NEMA 1 metallic enclosure. Certifications listed are UL 50 and UL 67, ensuring enclosure integrity and safe operation in indoor environments while supporting reliable overload protection with compatible BR breakers.
This loadcenter is ideal for residential service upgrades, light commercial panels, service equipment retrofits, and interior mechanical rooms where space is limited. Its 20-space, 40-circuit design paired with a ground bar and cover makes it suitable for compact distribution needs while maintaining robust protection and easy maintenance.
Expect UL 50 and UL 67 listings, a NEMA 1 enclosure rating, and a 10 kAIC interrupt rating. These certifications confirm enclosure performance and interrupt capacity for indoor distribution, helping ensure compliance with electrical codes and reducing inspection risk during projects.
Plan for rapid installation with the included cover and 23 inch depth footprint, and select compatible BR 1-inch breakers to minimize compatibility issues. The aluminum bus lowers weight for easier handling, while the 10-year warranty and UL certifications reduce lifecycle maintenance costs and support long-term reliability in the field.
