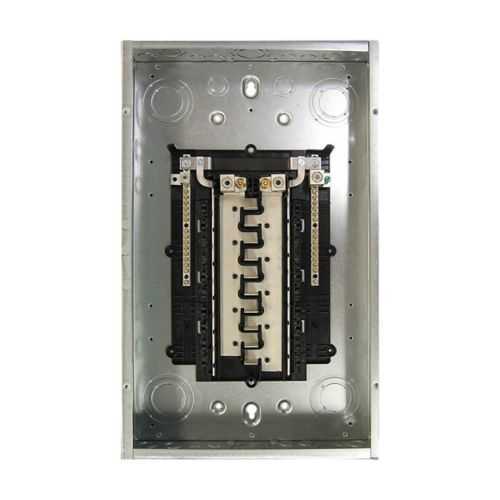

Eaton BRP20L200 Main Lug Loadcenter - CSR2200
Part Number: BRP20L200
Quick Summary
Eaton BRP20L200 main lug loadcenter is a 200 A distribution solution for commercial and light industrial panels. Engineers often struggle with space, compliance, and installation time; this unit addresses footprint, UL listings, and straightforward setup. Certifications include UL 50 and UL 67 listings with a NEMA 1 enclosure and a 10 kAIC interrupt rating, providing confidence in safety and performance. As a standard, its aluminum bus, 40 circuits, and compatibility with BR 1-inch breakers streamline procurement and installation, delivering reliable power distribution with long-term cost savings.
Product Information
Extended Description
BRP20L200 Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,CSR2200,NEMA1,40 Circuits,Twenty-four pole,20 Spaces,Two hots,a neutral,and a ground,Single-phase,Type BR 1-inch breakers,120/240V,#1–300 kcmil
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP20L200
UPC
786689053260
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
21 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
CSR2200
Number of circuits
40
Number Of Poles
Single-pole
Number of spaces
20
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature → The BRP20L200 uses an aluminum bus and a 200 A rating to support robust, space-efficient distribution. Business Impact → Reduced panel count and lighter installation weight translate to faster projects and lower labor costs. Application → Ideal for commercial and light industrial panels needing dependable main lug distribution with agile upgrade paths. Feature → NEMA 1 metallic enclosure with a 10 kAIC interrupt rating enhances protection in general-purpose spaces. Business Impact → Improved safety and lower risk of fault consequences, meeting common facility standards. Application → Suitable for dry, indoor environments like offices, data centers, and light manufacturing floors. Feature → Compatibility with Type BR 1-inch breakers and 20 spaces across 40 circuits simplifies sourcing and maintenance. Business Impact → Streamlined spare parts availability and straightforward breaker replacements. Application → Great for retrofit projects where existing BR breakers are already in use. Feature → CSR2200 main circuit breaker included in the unit provides an integrated, reliable main break point. Business Impact → Faster commissioning and reduced aftermarket component complexity. Application → Beneficial in systems requiring a known, compatible main breaker for code compliance. Feature → 10-year warranty and UL/NEMA certifications support long-term ownership and compliance. Business Impact → Lower lifecycle costs, reduced risk, and predictable maintenance cycles. Application → Enterprise-scale installations seeking durable, standards-driven distribution equipment.
Get a Quick Quote for a Eaton BRP20L200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP20L200?
Enquire Now
FAQs
The BRP20L200 is designed to work with Type BR 1-inch breakers. With 20 spaces and 40 circuit capacity, installation and future upgrades are straightforward, ensuring spare breaker compatibility and simplified maintenance in commercial or light industrial panels.
Key specs include a 200 A amperage rating, 120/240 V voltage, single-phase configuration, 40 circuits across 20 spaces, aluminum bus material, NEMA 1 enclosure, and a 10 kAIC interrupt rating. The CSR2200 is listed as the main circuit breaker compatible with this unit.
The BRP20L200 is suited for commercial and light industrial panels requiring reliable main lug distribution. Its rugged NEMA 1 enclosure and 10 kAIC rating provide protection in standard indoor environments, while the aluminum bus supports durability and ease of installation in control and distribution applications.
This unit carries UL 50 and UL 67 listings, aligning with common enclosure and panel standards. It also features a NEMA 1 enclosure and a 10 kAIC interrupt rating, ensuring safe operation in typical indoor settings and aiding compliance during audits and inspections.
The BRP20L200 comes with a 10-year warranty, reflecting Eaton’s confidence in durability and performance. Routine maintenance centers on inspection for tight connections and enclosure integrity, with the 20-space/40-circuit layout simplifying spare parts planning and reducing downtime during repairs or upgrades.
