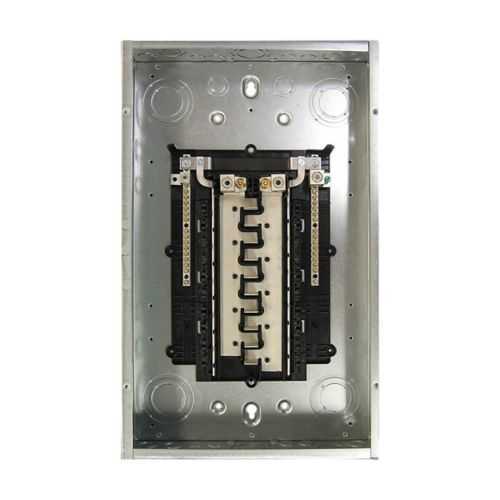

Eaton BRP20L200G Main Lug Loadcenter - UL 50/UL 67
Part Number: BRP20L200G
Quick Summary
BRP20L200G main lug loadcenter by Eaton enables compact, scalable power distribution for indoor commercial and light industrial panels. Engineers often wrestle with tight spaces, limited mounting options, and grounding reliability when expanding control cabinets. This unit delivers a 200 A MLO configuration with 20 spaces and a ground bar, while maintaining a compact footprint. It carries UL 50 and UL 67 certifications, a NEMA 1 metallic enclosure, and a rugged aluminum bus to resist corrosion in busy electrical rooms. With a cover included and a 10-year warranty, it reduces field rework and service calls. Ideal for panel upgrades, new installs, and retrofit projects seeking dependable BR-series performance and straightforward maintenance.
Product Information
Extended Description
BRP20L200G Eaton: Eaton Eaton Type BR 1-inch PON loadcenter, 200 A, MLO, 20 spaces, w/ ground bar
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP20L200G
UPC
786689053277
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
21 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
40
Number Of Poles
Single-pole
Number of spaces
20
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 200 A Main Lug Configuration. Business Impact: Enables a main-lug-only distribution approach with robust capacity, reducing equipment counts and cabinet footprint. Application: Suitable for indoor commercial panels and small-to-mid-size industrial controls where a clean, compact feeder is required. Long-tail keywords: BR main lug loadcenter, MLO distribution, 200 A panel expansion. Feature: 20 Spaces and 40 Circuits. Business Impact: High-density layout supports multiple branch circuits with organized wiring and easier future expansion, minimizing field rewiring costs. Application: Ideal for indoor panels serving machines with diverse control loads and lighting circuits. Long-tail keywords: 20-space loadcenter, 40-circuit capacity, compact panel design.Feature: NEMA 1 Metallic Enclosure. Business Impact: Provides indoor protection against dust and incidental contact, improving reliability and compliance in typical plant environments. Application: Indoor electrical rooms and workshop panels where a durable enclosure is essential. Long-tail keywords: NEMA 1 enclosure, indoor electrical panel, rugged steel enclosure.Feature: Aluminum Bus Material. Business Impact: Reduces weight while maintaining conductivity and mechanical strength, easing handling and installation. Application: Field installs where weight reduction enables easier mounting and serviceability. Long-tail keywords: aluminum bus, lightweight distribution center, BR-series compatibility.Feature: Ground Bar and Cover Included. Business Impact: Simplifies grounding practices and protects terminations, lowering retrofit time and risk of grounding faults. Application: Retrofit and new builds where quick assembly and reliable grounding are priorities. Long-tail keywords: ground bar included, cover included, BR loadcenter accessories.Feature: 120/240 V Single-Phase, Type BR with 1-inch Breakers. Business Impact: Delivers familiar, code-compliant power for most light industrial and commercial applications, reducing training requirements. Application: Replacements and upgrades in existing BR-branded panels. Long-tail keywords: Type BR breakers, 1-inch breakers, single-phase distribution. Feature: 10-Year Warranty and UL/CE-ready Design. Business Impact: Enhances total cost of ownership with predictable service life and strong supplier support. Application: Procurement strategies for mission-critical panel upgrades and long-term maintenance planning. Long-tail keywords: 10-year warranty, UL 50, UL 67, durable panel solution.
Get a Quick Quote for a Eaton BRP20L200G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP20L200G?
Enquire Now
FAQs
Install the BRP20L200G as a main-lug loadcenter within a BR-series panel, ensuring the enclosure remains indoor and within the NEMA 1 rating. Secure the ground bar, mount the cover, and connect conductors per 120/240V single-phase wiring diagrams. Use Type BR 1-inch breakers where required and verify UL 50/UL 67 compliance during commissioning.
The BRP20L200G is designed for use with Type BR 1-inch breakers, providing 20 spaces for up to 40 circuits in a 200 A main-lug configuration. This compatibility simplifies stocking, training, and replacement, while enabling straightforward expansion of indoor distribution with familiar BR-series components.
Yes. With a NEMA 1 metallic enclosure, 120/240V single-phase rating, and UL 50/UL 67 certifications, the BRP20L200G is well-suited for indoor commercial and light industrial panels. Its ground bar and cover inclusion reduce field tasks, and the 10-year warranty supports long-term maintenance and reliability.
The BRP20L200G carries UL 50 and UL 67 certifications for enclosure and assembly integrity, is suitable for indoor use in NEMA 1 environments, and includes a 10-year warranty. These factors help ensure code compliance, predictable service life, and minimized risk for facility uptime.
Plan for a compact footprint with 20 spaces and 200 A capacity to reduce panel count, leverage the aluminum bus for lighter assemblies, and ensure ground bar wiring is prepared for fast terminations. Align procurement with BR-series breakers and ensure 120/240V single-phase circuits meet your load profile to minimize rework and extend panel life.
