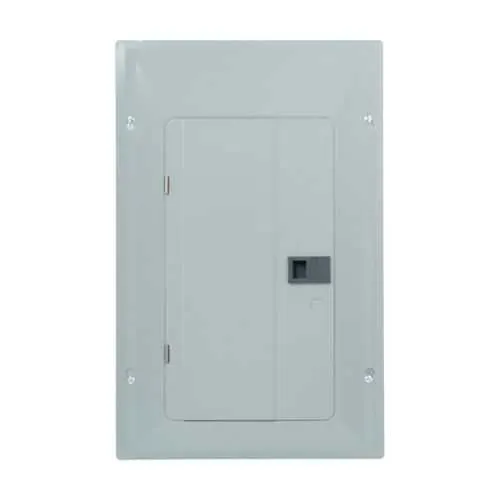

Eaton BRP24L125 Main Lug Loadcenter - 10kAIC NEMA 1
Part Number: BRP24L125
Quick Summary
Eaton BRP24L125 main lug loadcenter provides compact, reliable power distribution for panel boards and control panels. Upgrading legacy panels often leads to wiring congestion, limited mounting options, and misfits with BR breakers. This unit is UL 50 and UL 67 listed, with a NEMA 1 metallic enclosure and a 10 kAIC interrupt rating, ensuring safe operation in demanding environments. With aluminum bus for reduced weight and a surface, flush mounting design, it delivers fast, compliant installations. For value-focused project teams, the 24-space, 48-circuit capacity combines scalability with strong protection, while compatibility with Type BR 1-inch breakers supports phased modernization and long-term uptime.
Product Information
Extended Description
BRP24L125 Eaton: Eaton Eaton BR main lug loadcenter ,Ground bar,Main lug only,125 A,X0,Aluminum,Cover included,NEMA 1,Metallic,10kAIC,BR2125,Surface, flush,NEMA 1,24 Circuits,Twenty-four pole,12 Spaces,Two hots, a neutral
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP24L125
UPC
786689053352
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
20 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR2125
Mounting
Surface, flush
Number of circuits
48
Number Of Poles
Single-pole
Number of spaces
24
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: Main Lug Only (MLO) design enables distribution without a main breaker, reducing upfront components. Business Impact: Lowers upfront cost and simplifies field wiring for compact enclosure applications. Application: Ideal for small-to-mid size control panels where a separate main is present elsewhere. Feature: 125 A amperage rating with 24 spaces and 48 circuits capacity. Business Impact: Supports moderate-load panels with room for future expansion, improving lifecycle planning and asset utilization. Application: Machine control panels and light-to-medium industrial distributions. Feature: Aluminum bus material. Business Impact: Lighter weight, corrosion resistance, easier handling during installation, reducing labor time. Application: Indoor industrial environments where handling weight is a concern. Feature: NEMA 1 metallic enclosure with cover included. Business Impact: Provides robust indoor protection and ready-to-wire installation, lowering field fabrication needs. Application: Indoor switchgear and control panels requiring durable protection. Feature: Surface and flush mounting options. Business Impact: Flexible mounting supports diverse enclosures and wall layouts, speeding commissioning. Application: Wall-mounted panels and equipment bays with limited depth. Feature: BR 1-inch breaker compatibility and #6-1/0 AWG Cu/Al wire size. Business Impact: Streamlines procurement and wiring practices; supports common contractor practices and faster terminations. Application: Facilities upgrading BR-series protection schemes. Feature: 10 kAIC interrupt rating and UL 50/UL 67 listings. Business Impact: Ensures safety and compliance for standard industrial switching environments, reducing risk and rework. Application: Energy distribution in manufacturing lines and process controls. Feature: Ground bar included and door/cover ready for field wiring. Business Impact: Simplifies grounding and enclosure sealing, cutting labor steps. Application: New builds and panel upgrades where wiring density is high. Feature: 23 in length, 3.88 in height, 14.31 in width with a 20 lb weight. Business Impact: Manageable footprint for compact plant layouts while preserving serviceability. Application: Tight utility rooms or mezzanine installations where space is at a premium.
Get a Quick Quote for a Eaton BRP24L125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP24L125?
Enquire Now
FAQs
Install the BRP24L125 as a main-lug distribution within a BR-type panel. Ensure the enclosure is NEMA 1 compliant, mount surface or flush as required, and connect conductors with #6-1/0 AWG Cu/Al. Use the included cover and ground bar, and install BR 1-inch breakers where specified. Verify UL 50/UL 67 compliance and confirm 120/240V operation before energizing.
Confirm 125 A amperage rating, 120/240V phase configuration, and a 10 kAIC interrupt rating. Use #6-1/0 AWG copper or aluminum conductors, and ensure the system supports 24 spaces with 48 circuits. Verify compatibility with BR 1-inch breakers and ensure the enclosure is NEMA 1 for indoor protection.
Yes. The BRP24L125 is designed for compact control panels and distribution boards in manufacturing environments. Its aluminum bus reduces weight, the NEMA 1 metallic enclosure provides indoor protection, and the 24-space capacity supports modular expansion. Pair with BR 1-inch breakers for scalable protection in automation and machine control applications.
The BRP24L125 carries UL 50 and UL 67 listings, indicating compliance for electrical enclosures and panelboards. It has a NEMA 1 enclosure and a 10 kAIC interrupt rating, which supports safe operation in indoor environments with standard protection needs. Grounding is facilitated by an included ground bar, aiding compliance with common electrical codes.
With a 10-year warranty and a durable metallic enclosure, maintenance demands are minimized, boosting uptime and lowering lifecycle costs. The 125 A rating, aluminum bus, and 24-space design reduce replacement frequency for growing panel needs, delivering predictable maintenance planning and faster future upgrades in industrial settings.
