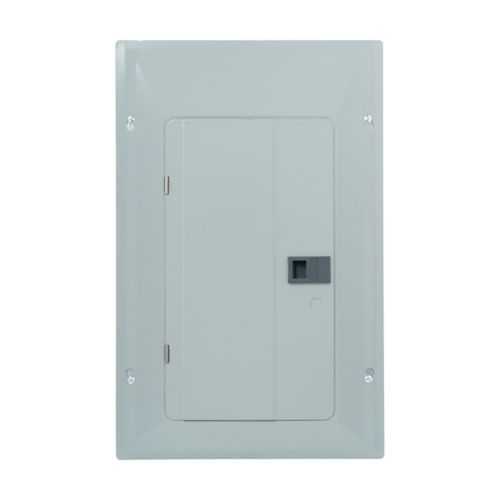

Eaton BRP24L125G Main Lug Loadcenter - UL 50/UL 67, NEMA 1
Part Number: BRP24L125G
Quick Summary
The Eaton BRP24L125G main lug loadcenter delivers reliable power distribution for 120/240V single-phase panels in commercial and light industrial settings. Upgrading legacy enclosures can stall projects due to mounting rigidity and insufficient fault protection; this model addresses those challenges with flexible surface or flush mounting and a robust 10 kAIC interrupt rating. With UL 50 and UL 67 listings and a NEMA 1 metallic enclosure, it meets essential safety standards for indoor installations and fast-tracks code compliance. Designed to align with BR 1-inch breakers and aluminum bus, it offers a practical combination of durability, scalability, and reduced installation time for growing facilities.
Product Information
Extended Description
BRP24L125G Eaton: Eaton Eaton BR main lug loadcenter, Ground bar, Main lug only, 125 A, X3, Aluminum, NEMA 1, Metallic, 10kAIC, BR2125, Surface, flush, 48 Circuits, Twenty-four pole, 24 Spaces, Two hots, a neutral, and a ground, Single-phase, 120/240V
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP24L125G
UPC
786689053369
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
20 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR2125
Mounting
Surface, flush
Number of circuits
48
Number Of Poles
Single-pole
Number of spaces
24
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 125 A main lug rating provides direct connection for load distribution without a main breaker. Business Impact: Simplifies upgrades and minimizes component count, reducing upfront cost and ongoing maintenance. Application: Ideal for light commercial or retrofit projects where a main lug configuration is preferred. The unit supports BR 1-inch breakers for versatile circuit protection and easy future expansion. Feature: 48 circuits across 24 spaces with two hot conductors, a neutral, and a ground. Business Impact: High-density layout enables more circuits in a compact footprint, improving panel reliability and reducing enclosure tally. Application: Suitable for dense electrical feeders in data centers, workshops, and small manufacturing lines. Feature: Aluminum bus material reduces weight and enhances handling during installation. Business Impact: Easier field wiring and lower labor costs, with corrosion resistance in clean indoor environments. Application: Quick on-site installation for retrofit and new construction. Feature: NEMA 1 metallic enclosure with surface/flush mounting and 10 kAIC interrupt rating. Business Impact: Durable indoor protection against dust and incidental contact, meeting stringent safety and code requirements. Application: Controls and distribution in mechanized facilities and electrical rooms. Feature: Included ground bar and cover; compatibility with two hot lines and a neutral/ground arrangement. Business Impact: Improves safety grounding and enclosure integrity, streamlining assembly and maintenance. Application: Ready for immediate wiring with BR 1-inch breakers. Feature: Wire size capability #6-1/0 AWG Cu/Al supports large feeders. Business Impact: Facilitates robust power distribution for high-demand loads while maintaining conductor versatility. Application: Electrical distribution in commercial spaces where flexible feeder options are required.
Get a Quick Quote for a Eaton BRP24L125G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP24L125G?
Enquire Now
FAQs
The BRP24L125G supports surface and flush mounting in a NEMA 1 metallic enclosure, designed for indoor use. It is a main lug, single-phase panel intended to be used with BR 1-inch breakers and BR2125 main circuit breaker configurations. This combination offers straightforward wiring, reduced footprint, and easy integration with existing BR-series components while meeting UL 50/UL 67 requirements.
Key ratings include 125 A amperage, 120/240 V single-phase operation, and 10 kAIC interrupt rating. Wire size compatibility is #6-1/0 AWG Cu/Al, supporting feeder flexibility for varied load profiles. The enclosure is NEMA 1, metallic, ensuring adequate protection for indoor environments and straightforward termination for up to 24 spaces and 48 circuits.
This loadcenter excels in commercial and light industrial applications requiring compact, scalable power distribution with reliable fault protection. It supports BR 1-inch breakers and is well-suited for electrical rooms, service upgrades, retrofit projects, and facilities prioritizing ease of installation, robust protection, and UL-listed safety.
The BRP24L125G carries UL 50 and UL 67 listings, with a NEMA 1 enclosure. These certifications confirm structural integrity, enclosure protection, and compatibility with recognized electrical components, helping meet applicable national and local codes for indoor distribution panels and speeding up acceptance by inspectors and auditors.
Eaton provides a 10-year warranty, reflecting confidence in long-term reliability. Routine maintenance focuses on verifying enclosure integrity, conductor terminations, and general cleanliness. With a 20 lb weight and aluminum bus, installation is straightforward, reducing labor time and downtime during upgrades, which translates to lower total cost of ownership for facilities.
