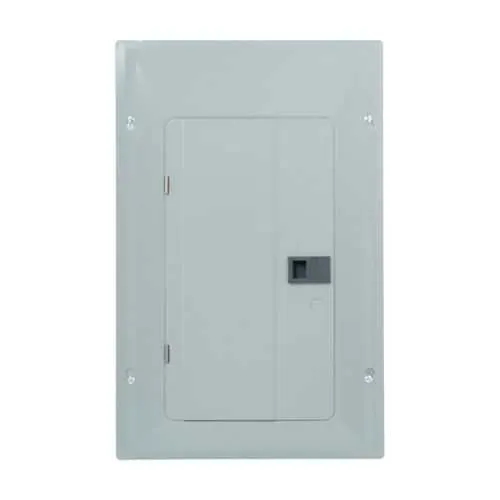

Eaton BRP24L125GP1 BR main lug loadcenter - UL 67 UL 50
Part Number: BRP24L125GP1
Quick Summary
Eaton BR main lug loadcenter provides reliable power distribution for commercial and light-industrial panels. Engineers often confront tight spaces, wiring complexity, and the need for future expandability during panel upgrades. This solution features UL 67, UL 50, and NEMA 1 enclosure ratings to support safe indoor operation and long service life. It is compatible with Type BR 1-inch breakers and copper/aluminum conductors, simplifying parts sourcing and installation. With a 125 A rating and a 24-space configuration, it delivers scalable capacity while helping reduce total cost of ownership through a durable, easily maintained enclosure.
Product Information
Extended Description
BRP24L125GP1 Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,125 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,Surface,flush,NEMA 1,48 Circuits,Single-pole,24 Spaces,Single-phase,Type BR 1-inch breakers,120/240V,#6-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP24L125GP1
UPC
786689054489
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
20 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Mounting
Surface, flush
Number of circuits
48
Number Of Poles
Single-pole
Number of spaces
24
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Main lug configuration with 125 A rating and 48 circuits streamlines wiring and reduces the number of components, cutting labor time during panel builds. This design minimizes bus assemblies and simplifies field wiring, lowering installation costs. It is well suited for 48-circuit requirements in commercial and light-industrial panels where a full main-breaker is not needed. Compatibility with Type BR 1-inch breakers ensures consistent parts availability and easy substitution during upgrades. The predictable breaker footprint shortens panel rework and improves maintenance planning. This capability is ideal for facilities that regularly service aging equipment or plan future expansion in data centers, offices, or light manufacturing. Aluminum bus material and corrosion-resistant construction deliver long-term reliability in busy electrical rooms. The metal enclosure with NEMA 1 rating protects against indoor dust and incidental moisture exposure. This combination supports safer, compliant installations in standard dry indoor environments. 10 kAIC interrupt rating provides higher fault-current withstand, reducing the risk of damage during short-circuits. This translates to improved protection for downstream equipment and faster fault clearance. Use cases include small distribution panels serving motor loads or lighting in commercial facilities. Surface and flush mounting options offer flexible installation, enabling either wall or cabinet integration with minimal space impact. The 23 in depth and 14.31 in width footprint helps in tight spaces, while the cover is included for quick commissioning. This makes retrofits and new builds more predictable from planning through commissioning. Ten-year warranty underpins total cost of ownership and supplier confidence, ensuring long-term support and serviceability. With Eaton’s BR line backing the product, spare parts availability and knowledge transfer are straightforward, reducing downtime during maintenance and upgrades.
Get a Quick Quote for a Eaton BRP24L125GP1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP24L125GP1?
Enquire Now
FAQs
The BRP24L125GP1 is designed to accept Type BR 1-inch breakers, ensuring consistent footprint and reliable interchangeability for upgrades. It supports surface or flush mounting in a NEMA 1 metallic enclosure, making installation straightforward in standard indoor spaces. This combination simplifies part sourcing and reduces field adjustments during commissioning.
The loadcenter is a 125 A main-lug unit with 24 spaces and 48 circuit capacity, rated for 120/240 V single-phase operation. It has a 10 kAIC interrupt rating, aluminum bus, and supports #6-1/0 AWG Cu/Al conductors. These specs support typical light-commercial loads and small motor circuits while maintaining protection margins.
The enclosure is NEMA 1 metallic and intended for indoor, dry locations. While suitable for many commercial and light-industrial distribution needs, it is not designed for harsh or underwater environments. For data centers or control panels with higher ingress or environmental demands, consider enclosures with higher NEMA ratings or additional protection features.
It carries UL 67 and UL 50 certifications, reflecting compliance for electrical enclosures and cabinet assemblies. The NEMA 1 enclosure rating reinforces suitability for indoor dry locations. A 10-year warranty further supports long-term reliability and maintenance planning.
With BR-type compatibility, a robust 125 A rating, and a durable NEMA 1 enclosure, maintenance expectations are low and component replacements are predictable. The 10-year warranty reduces lifecycle risk, contributing to lower total cost of ownership by minimizing downtime and simplifying spare parts planning during facility upgrades.
