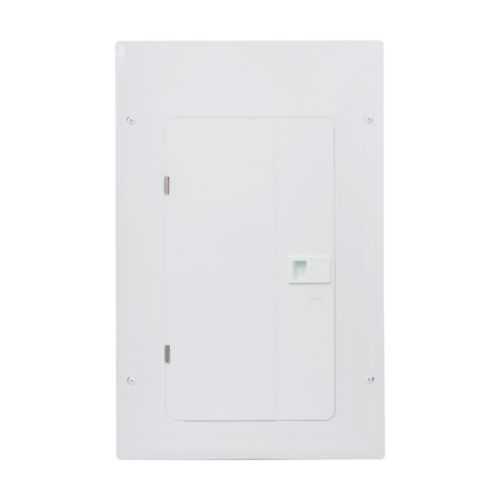

Eaton BRP24L125GW Main Lug Loadcenter - UL 67
Part Number: BRP24L125GW
Quick Summary
The Eaton BRP24L125GW main lug loadcenter provides dependable, ready-to-wire panel space for 24 circuits in commercial settings. Facility teams often wrestle with cramped enclosures, tangled wiring, and evolving safety standards. This unit carries UL 67 and UL 50 certifications in a NEMA 1 metallic enclosure, with a 10 kAIC interrupt rating, while offering flexible surface or flush mounting. Surface or flush mounting and BR-series compatibility help speed installation while reducing field changes and downtime. Designed for reliability in power distribution, it supports copper or aluminum conductors up to #6-1/0 AWG, balancing performance with cost efficiency for modern commercial power layouts.
Product Information
Extended Description
BRP24L125GW Eaton: Eaton Eaton BR main lug loadcenter,Main Lug Only,Main lug only,125 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,BR,Surface,flush,NEMA 1,48 Circuits,Single-pole,24 Spaces,Two hots,a neutral and a ground,Single-phase,1,120/240V,#6-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP24L125GW
UPC
786689054984
Product Length/Depth
23 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
20 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Main Lug Only
Type
Main Lug Only
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface, flush
Number of circuits
48
Number Of Poles
Single-pole
Number of spaces
24
Phase
Single-phase
Used with
BR
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X3
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Quantity
1
Feature: Main Lug Only design. Business Impact: Simplifies retrofits and reduces BOM complexity when upgrading existing BR panels. Application: Ideal for commercial retrofit projects where a full main breaker is not required. Feature: 125 A rating with 24 spaces and 48 circuits. Business Impact: Delivers ample distribution capacity for dense load profiles, enabling scalable installations. Application: Office cores, retail bays, and light industrial panels needing reliable expansion. Feature: Aluminum bus and metallic NEMA 1 enclosure. Business Impact: Improves electrical efficiency and durability in demanding environments, lowering maintenance needs. Application: Enclosures exposed to daily shop or office activity. Feature: 120/240 V, single-phase operation. Business Impact: Common utility supply compatibility reduces wiring complexity and integration risk. Application: Standard branch circuit distribution in commercial facilities. Feature: Wire size range #6-1/0 Cu/Al. Business Impact: Supports large feeders and reduces the need for multiple terminations, saving time during panel wiring. Application: Residential-to-light-commercial distribution runs. Feature: 10 kAIC interrupt rating and UL 67/UL 50 certifications. Business Impact: Enhanced fault protection and regulatory compliance, supporting safer power distribution. Application: Systems requiring robust short-circuit protection in NEMA 1 enclosures. Feature: Surface or flush mounting. Business Impact: Flexible installation options speed field installation and simplify mounting in tight spaces. Application: Wall-mounted electrical rooms and equipment closets in commercial facilities.
Get a Quick Quote for a Eaton BRP24L125GW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP24L125GW?
Enquire Now
FAQs
BRP24L125GW is a Main Lug Only panel, so it does not include a main breaker; it is designed to accept BR-series branch breakers if a future main is added. It supports surface or flush mounting in a NEMA 1 metallic enclosure, with 24 spaces for up to 48 circuits. Wiring uses #6-1/0 AWG copper or aluminum, making it straightforward to retrofit existing BR installations.
The unit is a 125 A main-lug loadcenter rated for 120/240 V single-phase service. It provides 24 spaces to distribute up to 48 circuits and features a 10 kAIC interrupt rating, suitable for typical commercial and light industrial fault-current levels. It is designed to work with BR-series components for future expansion.
Ideal for commercial offices, retail spaces, and light industrial electrical rooms needing compact but scalable distribution. Its 24-space configuration and 125 A rating support mid-size panel grids, while BR compatibility enables straightforward expansion. The NEMA 1 metallic enclosure provides reliable protection in indoor environments with moderate dust and splash exposure concerns.
BRP24L125GW carries UL 67 and UL 50 certifications, ensures NEMA 1 protection, and uses a metallic enclosure. The 10-year warranty adds long-term assurance. These certifications support compliance in commercial electrical rooms and simplified approval processes for new or retrofit installations.
The main lug only design reduces upfront hardware and simplifies retrofits, lowering initial costs. Surface or flush mounting provides installation flexibility, while the durable metallic enclosure minimizes upkeep. The 10-year warranty and compatibility with BR breakers help minimize downtime during future expansions and maintenance, improving total cost of ownership for mid-sized facilities.
