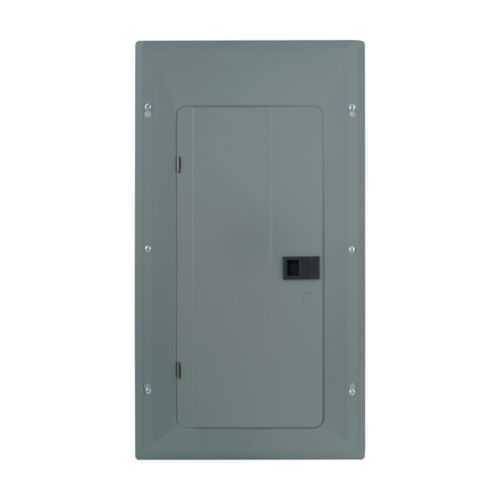

Eaton BRP24L200 Main Lug Loadcenter - 10 kAIC
Part Number: BRP24L200
Quick Summary
The Eaton BRP24L200 main lug loadcenter is a reliable 200 A distribution panel designed for 120/240 V single‑phase service in commercial and light industrial applications. It helps address space constraints and wiring complexity by delivering 24 spaces and 48 circuits in a compact, flush or surface‑mounted enclosure. This model carries established safety and performance benchmarks, including UL 67 and UL 50 listings, with a NEMA 1 metallic enclosure for indoor installations. With a 10‑year warranty, it provides long‑term reliability while reducing maintenance overhead. For engineers and procurement teams, this BRP24L200 supports scalable electrical infrastructure within enclosure and electrical infrastructure projects, aligning with enclosure and electrical infrastructure best practices and cost‑effective panel upgrades.
Product Information
Extended Description
BRP24L200 Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X4,Aluminum, NEMA 1,Metallic,10kAIC,flush,48 Circuits,Twenty-four pole,24 Spaces,Two hots,a neutral,and a ground,Single-phase,Type BR 1-inch breakers,120/240V,#1–300 kcmil
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP24L200
UPC
786689053383
Product Length/Depth
27 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
23.1 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
CSR2200
Mounting
Surface, flush
Number of circuits
48
Number Of Poles
Single-pole
Number of spaces
24
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X4
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature → Main lug design: main disconnect is not included, reducing upfront costs when a separate main is planned downstream. Impact: simplifies panel configuration and lowers installation time with clear distribution boundaries. Application: ideal for service panels and load distribution in compact commercial structures. Feature → 24 spaces and 48 circuits: higher capacity in a single enclosure. Impact: enables scalable circuit provisioning without expanding footprint. Application: suitable for evolving electrical infrastructure in offices or light manufacturing. Feature → 200 A Amperage Rating: robust service capacity with a controlled fault current. Impact: supports demanding loads while maintaining safety margins. Application: common in mid‑sized facilities needing reliable power distribution. Feature → Aluminum bus and metallic enclosure: lightweight yet durable construction. Impact: easier handling during installation and improved heat management; enclosure resists indoor environment. Application: aligns with industrial enclosure and equipment ratings for NEMA 1 environments. Feature → 120/240 V single‑phase, BR 1‑inch breaker compatibility: broad compatibility with standardized breakers. Impact: simplifies parts sourcing and maintenance planning, reduces downtime. Application: essential for panel boards in commercial buildings and manufacturing controls. Feature → 10 kAIC interrupt rating: strong protection against fault currents. Impact: enhances safety compliance and reduces risk to personnel and equipment. Application: critical for networks with higher fault current potential in distribution panels.
Get a Quick Quote for a Eaton BRP24L200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP24L200?
Enquire Now
FAQs
BRP24L200 is designed as a main lug loadcenter that uses Type BR 1‑inch breakers. It provides 24 spaces with surface or flush mounting in a NEMA 1 metallic enclosure, making installation straightforward in indoor environments. There is no built‑in main breaker, so a downstream main can be added if needed, simplifying retrofit and expansion plans.
Key specs include a 200 A amperage rating, 120/240 V single‑phase, aluminum bus material, 24 spaces (48 circuits), NEMA 1 enclosure, and a 10 kAIC interrupt rating. It is listed under UL 67 and UL 50, with a cover included, and is suitable for residential light commercial distribution and controlled industrial panels.
BRP24L200 is well suited for light to mid‑range industrial applications and commercial control panels due to its 200 A rating and 24‑space capacity. Its compatibility with BR 1‑inch breakers and durable NEMA 1 metallic enclosure support reliable control and distribution in controlled factory or warehouse environments, while allowing room for future expansion.
BRP24L200 carries UL 67 and UL 50 listings, confirming suitability for electrical assemblies and enclosures. The NEMA 1 enclosure and metallic construction provide indoor protection. These certifications help ensure safety, reliability, and regulatory compliance for commercial and light industrial installations.
The BRP24L200 comes with a 10‑year warranty, reflecting Eaton’s confidence in long‑term performance. For maintenance, standard practices apply: periodic inspection of terminals, verification of bus connections, and validation of breaker compatibility. The design minimizes downtime by using readily available Type BR breakers and a robust aluminum bus system.
