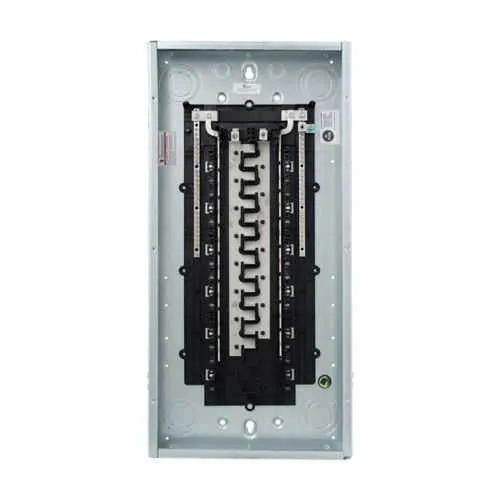

Eaton BRP30L125 Main Lug Loadcenter - 10kAIC
Part Number: BRP30L125
Quick Summary
BRP30L125 is an Eaton BR main lug loadcenter used for indoor 120/240V panel distribution. It addresses space constraints and the need for flexible wiring in main-lug installations across light commercial and industrial settings. Certified to UL 50 and UL 67 with a NEMA 1 metallic enclosure, it provides robust compliance for indoor electrical rooms. The unit ships with a 10-year warranty and is designed for scalable power distribution, supporting BR 1-inch breakers for future expansion while offering a compact footprint suitable for constrained spaces. This combination helps procurement teams simplify installs, reduce retrofit costs, and lower total ownership costs over the system’s life.
Product Information
Extended Description
BRP30L125 Eaton: Eaton Eaton BR main lug loadcenter,Indoor,Main lug only,125 A,X5,Aluminum,Gray, NEMA 1,Metallic,10kAIC,BR2125,Surface,flush,60 Circuits,30 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#6–2/0
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP30L125
UPC
786689052874
Product Length/Depth
29.12 in
Product Height
3.88 in
Product Width
16 in
Product Weight
25.65 lb
Warranty
10 year
Certifications
UL 50 UL 67
Type
MLO
Amperage Rating
125 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR2125
Mounting
Surface, flush
Number of circuits
60
Number Of Poles
Single-pole
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X5
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature → Business Impact → Application: Main-lug configuration, 125 A rating, 120/240 V single-phase enables compact indoor power distribution for small to mid-size facilities, reducing enclosure footprint and simplifying panel upgrades. Application: light commercial electrical rooms. Feature → Business Impact → Application: 60 circuits across 30 spaces provides scalable capacity for phased expansions, minimizing early panel replacement and driving lower lifecycle costs. Application: expanding retail outlets or office campuses. Feature → Business Impact → Application: Aluminum bus and metallic NEMA 1 enclosure offer durability and corrosion resistance in indoor environments, improving reliability and long-term performance. Application: data centers and manufacturing closets. Feature → Business Impact → Application: Surface or flush mounting with cover included streamlines installation and protects wiring, accelerating project timelines. Application: new builds and retrofit projects. Feature → Business Impact → Application: 10kAIC interrupt rating enhances fault current handling, reducing risk and improving safety compliance. Application: industrial power distribution. Feature → Business Impact → Application: Type BR 1-inch breakers compatibility ensures flexible protection options, supporting easy modernization and maintenance. Application: retrofits and upgrades. Feature → Business Impact → Application: 10-year warranty and UL listings (UL 50, UL 67) provide procurement confidence and reduced lifecycle risk. Application: procurement for regulated environments.
Get a Quick Quote for a Eaton BRP30L125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP30L125?
Enquire Now
FAQs
The BRP30L125 is designed to be used with Type BR 1-inch breakers. It provides 60 circuit positions across 30 spaces and supports a BR2125 listed option for a main breaker if configuration requires it. This compatibility supports flexible protection strategies while preserving ease of maintenance and future upgrades.
Yes. It is designed for indoor use with a NEMA 1 metallic enclosure. It carries UL 50 and UL 67 listings, ensuring compliance with standard indoor enclosure protections. The Gray metallic finish and surface or flush mounting options simplify installation in electrical rooms and mechanical spaces.
The unit is rated for 125 A and operates at 120/240 V single-phase. This makes it suitable for light commercial and industrial distribution where standard split-phase service is required, while supporting BR 1-inch breakers for protection.
Dimensions are 29.12 inches in depth, 16 inches in width, and 3.88 inches in height. The enclosure weighs 25.65 pounds, providing a compact yet sturdy footprint suitable for situating in constrained electrical rooms or closet spaces.
It includes a 10-year warranty, UL 50 and UL 67 certifications, and a 10 kAIC interrupt rating. The aluminum bus and covered enclosure enhance durability and safety, while the surface/flush mounting and included cover streamline installation and ongoing maintenance, supporting a low total cost of ownership.
