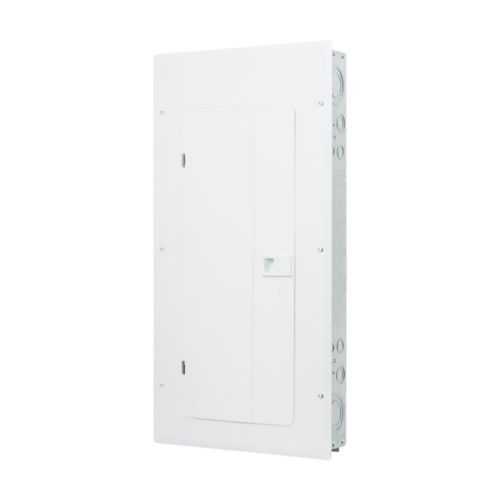

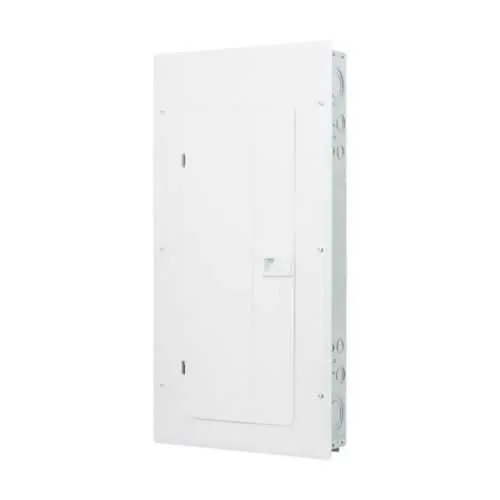

Eaton BRP30L200GWP1 Main Lug Loadcenter - UL 67 & UL 50
Part Number: BRP30L200GWP1
Quick Summary
The Eaton BR main lug loadcenter is designed to safely distribute 200 A in commercial and light-industrial panels. When service entrances must fit tight spaces and minimize downtime, you need a rugged enclosure with straightforward wiring and reliable fault tolerance. This model meets UL 67 and UL 50 listings, and it uses a NEMA 1 metallic enclosure to protect inside components. With 60 circuits across 30 spaces, aluminum bus, and compatibility with Type BR 1-inch breakers, it delivers scalable, predictable performance for ongoing electrical infrastructure projects. The 10-year warranty enhances maintenance planning, while the included cover and ground bar streamline installation and future expansion. In business terms, this enclosure helps reduce field labor and improve panel reliability in demanding environments.
Product Information
Extended Description
BRP30L200GWP1 Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,200 A,X5,Aluminum, NEMA 1,Metallic,10kAIC,60 Circuits,Single-pole,30 Spaces,Two hots,a neutral,and a ground,Single-phase,Type BR 1-inch breakers,120/240V,#1–300 kcmil
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP30L200GWP1
UPC
786689054519
Product Length/Depth
29.12 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
26.2 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Mounting
Surface, flush
Number of circuits
60
Number Of Poles
Single-pole
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X5
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 200 A main lug design with aluminum bus. Benefit: Supports high-demand commercial and light-industrial loads while enabling a compact panel strategy, reducing the total number of enclosures and associated labor. Application: Ideal for service entrances and distribution zones in offices, warehouses, and manufacturing floors. Feature: NEMA 1 metallic enclosure with surface or flush mounting. Benefit: Provides indoor protection against dust and incidental contact, while offering flexible installation options to fit wall space constraints and renovation projects. Application: New builds and retrofits in controlled environments with straightforward maintenance. Feature: 60 circuits across 30 spaces and 120/240 V single-phase operation; 10 kAIC interrupt rating. Benefit: Enables scalable facility upgrades and robust short-circuit protection, improving uptime and safety margins. Application: Panel upgrades and main distribution centers requiring future expansion. Feature: Ground bar included; main lug only; compatibility with Type BR 1-inch breakers. Benefit: Reduces wiring complexity and eliminates additional accessories, accelerating start-up and simplifying upgrades. Application: Electrical rooms and retrofit projects where fast onboarding matters. Feature: Cover included and 29.12 in length with a 14.31 in width and 3.88 in height; 26.2 lb weight. Benefit: Clear, factory-supplied enclosure dimensions streamline fit-checks and site planning, while the modest weight eases handling. Application: Field installation in constrained spaces with limited lifting capacity. Feature: UL 67 and UL 50 certified; NEMA 1 enclosure; 10-year warranty. Benefit: Ensures regulatory compliance, long-term reliability, and predictable maintenance budgeting. Application: Compliance-driven environments and facilities with strict safety requirements.
Get a Quick Quote for a Eaton BRP30L200GWP1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP30L200GWP1?
Enquire Now
FAQs
This BRP30L200GWP1 is a main lug loadcenter designed for indoor service. It offers a 200 A capacity, aluminum bus, NEMA 1 enclosure, and surface or flush mounting. It is compatible with Type BR 1-inch breakers and includes a ground bar and a cover, simplifying wiring, labeling, and future expansions while reducing installation time compared with legacy panels.
Best for indoor service panels in commercial and light-industrial settings, the BRP30L200GWP1 supports up to 60 circuits across 30 spaces at 120/240 V. Its 10 kAIC rating provides margin for short-circuit events, making it suitable for service entrances, distribution centers, and retrofit projects seeking scalable, reliable electrical distribution.
Safety and compliance are backed by UL 67 and UL 50 listings, along with a NEMA 1 metallic enclosure. The 10-year warranty reinforces long-term reliability. These certifications address enclosure integrity, electrical safety, and indoor environmental suitability for general duty service.
With a 10-year warranty, rugged metallic enclosure, and aluminum bus construction, maintenance is typically minimal while lifecycle costs stay predictable. The unit’s compact footprint and compatibility with BR 1-inch breakers reduce spare parts needs and facilitate rapid upgrades, contributing to lower total cost of ownership in busy electrical rooms.
The BRP30L200GWP1 is designed to use Type BR 1-inch breakers. This compatibility simplifies procurement and stocking, supports straightforward commissioning, and enables a consistent approach to future expansion or fault protection strategies across indoor distribution panels.
