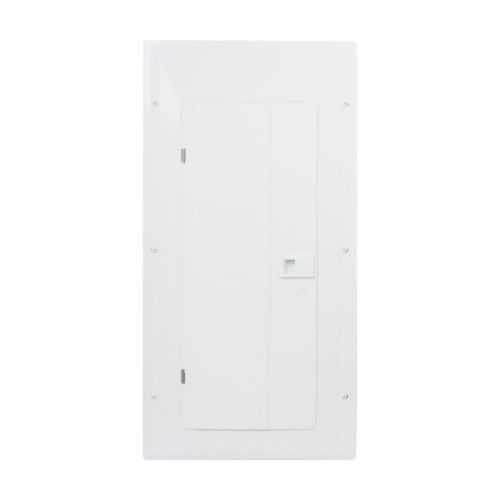

Eaton BRP30L200UGW Main Lug Loadcenter - NEMA 1 10 kAIC
Part Number: BRP30L200UGW
Quick Summary
The Eaton BRP30L200UGW is a main lug loadcenter designed for reliable service in commercial and light industrial panels. Finding a compact, high-capacity panel that fits 60 circuits and 30 spaces without compromising safety can be challenging. This unit is UL 67 and UL 50 listed, with a NEMA 1 enclosure and a 10 kAIC interrupt rating, ensuring compliance and protection. By delivering a robust, easy-to-install solution, it supports BR 1-inch breakers and 120/240V single-phase service, helping you optimize space, improve uptime, and reduce total cost of ownership in electrical distribution projects.
Product Information
Extended Description
BRP30L200UGW Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,200 A,X5,Aluminum, NEMA 1,10kAIC,60 Circuits,30 pole,30 Spaces,Riser Type,Single-phase,Type BR 1-inch breakers,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP30L200UGW
UPC
786689858186
Product Length/Depth
29.12 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
25.3 lb
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
60
Number Of Poles
Single-pole
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X5
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 200 A main lug capacity and 60 circuits with 30 spaces; Business Impact: Enables higher load capacity in a compact footprint, reducing the number of panels required and lowering installation time; Application: Ideal for commercial spaces and light industrial applications where space is at a premium. Feature: Aluminum bus material; Business Impact: Lighter weight and corrosion resistance translate to easier handling and long-term durability in busy service environments; Application: Field installations and retrofit projects where weight savings matter. Feature: NEMA 1 enclosure with cover included; Business Impact: Provides reliable indoor protection against dust and incidental contact, simplifying code compliance and reducing accessories needs; Application: Indoor electrical rooms and service areas. Feature: Ground bar and BR 1-inch breaker compatibility; Business Impact: Streamlined wiring and rapid breaker replacement, lowering maintenance time and inventory costs; Application: Routine servicing and future capacity upgrades. Feature: 10 kAIC interrupt rating and 120/240V single-phase operation; Business Impact: Enhanced fault tolerance and safer shutoff in standard commercial loads, supporting scalable distribution; Application: Small to mid-size facilities seeking dependable protection and ease of expansion.
Get a Quick Quote for a Eaton BRP30L200UGW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP30L200UGW?
Enquire Now
FAQs
The BRP30L200UGW is designed for indoor use with a NEMA 1 enclosure and cover included. It measures 29.12 in (length) by 14.31 in (width) by 3.88 in (height) and weighs 25.3 lb, supporting up to 60 circuits and 30 spaces. Ensure mounting on a solid surface, proper clearance, and that you install BR 1-inch breakers for full compatibility.
Yes. This loadcenter is specified for use with Type BR 1-inch breakers, enabling straightforward replacement, expansion, or reconfiguration without mixing breaker types. Verify breaker catalogs for current ratings and never exceed the 200 A service rating to maintain UL compliance.
This 200 A main lug loadcenter with 60 circuits and 30 spaces is well-suited for commercial electrical distribution and light industrial panels. It supports single-phase 120/240 V service, making it ideal for offices, retail spaces, small factories, and service rooms where space and efficiency matter.
The unit carries UL 67 and UL 50 listings and uses a NEMA 1 enclosure, aligning with indoor dry environments and standard building codes. Confirm local regulations and any additional regional certifications, but these specs provide robust safety and compatibility for typical commercial installations.
Investing in the BRP30L200UGW reduces maintenance time due to durable aluminum bus, a grounded ground bar, and easy BR breaker sourcing. Its solid 10 kAIC interrupt rating supports fault tolerance, while the compact 30-space design lowers footprint and installation costs, delivering long-term value in ongoing facility distribution upgrades.
