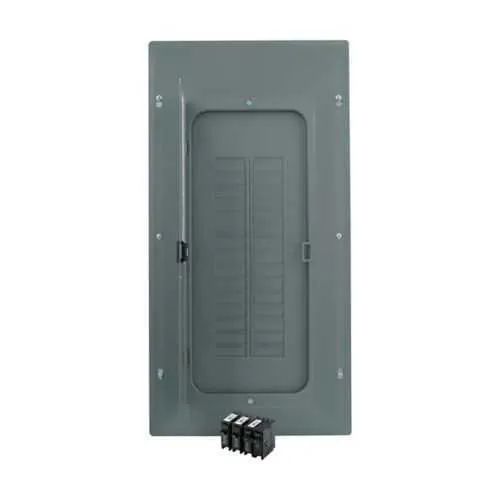

Eaton BRP30L200V25 Main Lug Loadcenter - 10 kAIC
Part Number: BRP30L200V25
Quick Summary
BRP30L200V25 main lug loadcenter from Eaton delivers compact, reliable power distribution for commercial and industrial panels. It addresses space constraints and the need for simple main-lug configurations by offering a surface or flush-mounted solution with 60 circuits and 30 spaces, rated at 200 A. Built for 120/240V single-phase service, it uses aluminum bus and a metallic NEMA 1 enclosure to withstand demanding environments. UL 50 and UL 67 certifications, together with a 10-year warranty, provide design confidence and long-term value. By combining rugged construction with BR-type 1-inch breakers compatibility, it reduces installation time, improves panel reliability, and lowers total cost of ownership while supporting code compliance and scalable expansion.
Product Information
Extended Description
BRP30L200V25 Eaton: Eaton Eaton BR main lug loadcenter,Value pack,Main lug only,200 A,X5,Aluminum,Gray, NEMA 1,Metallic,10kAIC,Surface,flush,NEMA 1,60 Circuits,Single-pole,30 Spaces,Two-hots,a neutral,and a ground,Single-phase,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP30L200V25
UPC
786689058425
Product Length/Depth
29.12 in
Product Height
3.88 in
Product Width
15.8 in
Product Weight
27.3 lb
Warranty
10 year
Certifications
UL 50 UL 67
Special features
Value pack
Type
Main Lug
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Mounting
Surface, flush
Number of circuits
60
Number Of Poles
Single-pole
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#6-2/0 AWG Cu/Al
Box size
X5
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 200 A amperage rating — Business impact: Enables higher service loads in a single panel, reducing the need for downstream feeders and subpanels. Application: ideal for 120/240V single-phase commercial and light industrial installations requiring consolidated power distribution. Feature: Aluminum bus material — Business impact: Lighter weight simplifies handling and installation, reducing labor time and flooring or wall mounting effort. Application: indoor electrical rooms and wall panels where weight is a consideration. Feature: Surface or flush mounting — Business impact: Provides installation flexibility in tight spaces and through-wall installations, improving jobsite adaptability. Application: installations with limited surface area or recessed enclosures. Feature: NEMA 1 metallic enclosure — Business impact: Superior indoor protection against dust and incidental moisture, enhancing reliability and compliance. Application: commercial and light industrial environments. Feature: 60 circuits and 30 spaces with BR 1-inch breaker compatibility — Business impact: Scalable distribution for future expansion while maintaining a compact footprint. Application: central panel boards in warehouses and facilities upgrading to BR breakers. Feature: 200 A, 120/240V single-phase, 10 kAIC rating — Business impact: High fault current protection and robust performance for demanding service entrances. Application: critical power distribution where uptime matters. Feature: Value pack and 10-year warranty — Business impact: Lower total ownership cost and predictable maintenance planning. Application: procurement and long-term maintenance budgeting for engineering projects.
Get a Quick Quote for a Eaton BRP30L200V25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP30L200V25?
Enquire Now
FAQs
The BRP30L200V25 is a BR family main-lug loadcenter designed for 200 A, single-phase service. It supports surface or flush mounting, accommodates up to 60 circuits across 30 spaces, and is compatible with BR 1-inch breakers. Installation is straightforward in indoor panels, with provisions for easy wiring, secure lugs, and robust enclosure protection. This configuration minimizes upstream components while keeping a compliant, code-ready distribution point.
Key specs include a 200 A amperage rating, 120/240 V single-phase operation, aluminum bus, NEMA 1 metallic enclosure, 60 circuits, 30 spaces, and a 10 kAIC interrupt rating. Wiring is rated for #6-2/0 AWG Cu/Al and the unit supports surface or flush mounting. It leverages UL 50 and UL 67 certifications for reliability and safety in indoor environments.
This loadcenter is rated for indoor use given its NEMA 1 metallic enclosure, which provides protection suitable for indoor electrical rooms and similar environments. For outdoor or harsher conditions, consider enclosures with higher NEMA ratings and additional environmental protections. Its aluminum bus and robust build are optimized for indoor reliability and code-compliant installations.
The BRP30L200V25 carries UL 50 and UL 67 certifications, confirming electrical safety and suitability for cabinet enclosures. Combined with a NEMA 1 enclosure rating and a 10 kAIC interrupt rating, these certifications ensure compliance with industry standards, reduce risk in panel installations, and support long-term reliability in commercial and light industrial applications.
The BRP30L200V25 offers a favorable total cost of ownership through a 10-year warranty, lighter aluminum bus for easier handling, and a value-pack design that simplifies procurement. Its compact footprint and BR breaker compatibility reduce installation time and future expansion costs, delivering predictable maintenance needs and better uptime in facilities and industrial environments.
