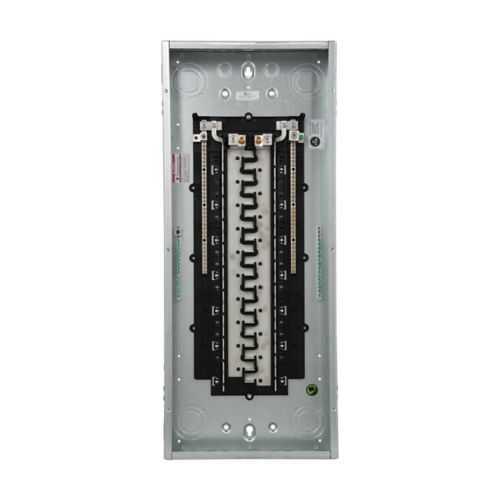

Eaton BRP40L200GW Main Lug Loadcenter - UL 67/UL 50
Part Number: BRP40L200GW
Quick Summary
The Eaton BRP40L200GW main lug loadcenter provides compact 200 A power distribution for commercial panels. Owners and technicians often face space constraints and downtime during upgrades. This unit carries UL 67 and UL 50 listings for safety and enclosure integrity, with a NEMA 1 rating and a 10 kAIC interrupt rating. Surface or flush mounting adds installation flexibility, and compatibility with Type BR 1-inch breakers supports cost-effective retrofits. Applied in commercial and light industrial settings, it helps reduce field labor and expands panel capacity while maintaining reliable, code-compliant distribution. This balance of performance and ease of installation translates to measurable business value.
Product Information
Extended Description
BRP40L200GW Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,200 A,X6,Aluminum,White, NEMA 1,Metallic,10kAIC,CSR2200,Surface,flush,NEMA 1,80 Circuits,Single-pole,40 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#1–300 kcmil
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP40L200GW
UPC
786689243333
Product Length/Depth
34.12 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
30.3 lb
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
CSR2200
Mounting
Surface, flush
Number of circuits
80
Number Of Poles
Single-pole
Number of spaces
40
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X6
Color
White
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Feature: 200 A amperage rating with 80 circuits and 40 spaces. Business Impact: Supports higher load density in a single enclosure, reducing the need for subpanels and associated wiring costs. Application: Ideal for mid-size commercial panels where space is at a premium and future expansion is anticipated. Feature: Main Lug Only (MLO) design compatible with Type BR 1-inch breakers. Business Impact: Lower upfront equipment cost and simpler retrofits, minimizing downtime during upgrades. Application: Retrofit projects and new installations where a main disconnect is supplied upstream. Feature: Aluminum bus material with a metallic enclosure and NEMA 1 protection. Business Impact: Lightweight yet durable construction improves handling during installation and provides dependable indoor performance. Application: Indoor commercial environments with reliable short-circuit withstand up to 10 kAIC. Feature: Surface and flush mounting capability with a protective cover included. Business Impact: Flexible placement in various panel configurations and enhanced safety during maintenance, reducing on-site time. Application: New builds and retrofit installations in offices, retail, and light industrial facilities. Feature: UL 67 and UL 50 certifications and a 10 kAIC interrupt rating. Business Impact: Ensures compliance with safety standards, lowering regulatory risk and accelerating approvals. Application: Projects requiring established enclosure and safety credentials for code compliance. Feature: 120/240 V single-phase operation and 34.12 in depth footprint with 30.3 lb weight. Business Impact: Balanced form factor for standard electrical rooms, enabling straightforward handling and routing. Application: Indoor distribution in spaces with conventional wiring layouts and space planning constraints.
Get a Quick Quote for a Eaton BRP40L200GW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP40L200GW?
Enquire Now
FAQs
The BRP40L200GW supports both surface and flush mounting, offering flexibility to fit existing wall contours or recessed spaces. This adaptability reduces enclosure footprint conflicts and simplifies wiring routing in densely populated electrical rooms. For retrofits, surface mounting can speed up installation by minimizing fabrication work, while flush mounting delivers a cleaner, space-efficient panel presentation in new builds.
This loadcenter is rated for 200 A with 80 circuits and 40 spaces. It operates on a single-phase 120/240 V supply and accepts Type BR 1-inch breakers. The aluminum bus and metallic enclosure provide robust performance, while a 10 kAIC interrupt rating supports reliable short-circuit protection in typical indoor installations.
Yes, the BRP40L200GW is designed to be used with Type BR 1-inch breakers, simplifying replacement or expansion projects. This compatibility reduces inventory complexity and improves maintenance planning. The MLO configuration makes it straightforward to connect feeders without a main breaker, which can lower upfront costs in appropriate applications while maintaining safety and code compliance.
The unit carries UL 67 and UL 50 certifications, along with a NEMA 1 enclosure and a 10 kAIC interrupt rating. These credentials support safe indoor use in commercial spaces, help meet electrical codes, and streamline procurement and inspection processes for projects requiring established safety credentials.
Choosing the BRP40L200GW can reduce installation time through its flexible mounting options, MLO design, and compatibility with BR breakers, which lowers initial equipment costs and simplifies retrofits. The durable enclosure and known interrupt rating contribute to longer service life and fewer field adjustments, delivering measurable ROI through reduced downtime and maintenance labor.
