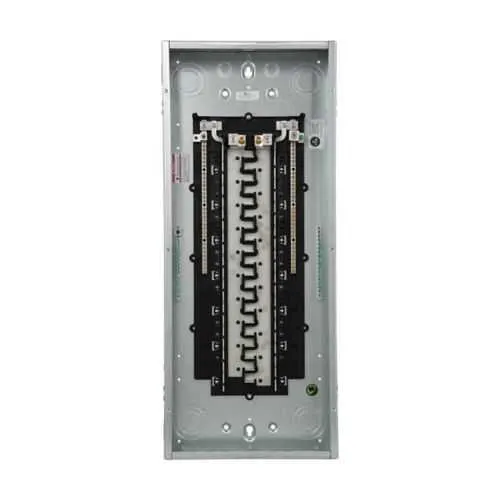

Eaton BRP40L200R Main Lug Loadcenter - NEMA 3R
Part Number: BRP40L200R
Quick Summary
Eaton BRP40L200R is a main lug loadcenter designed for efficient electrical distribution in commercial and light industrial panels. Engineers often struggle with space constraints, maintenance complexity, and code compliance during panel upgrades; this unit addresses those challenges with a compact footprint, easy-access cover, and robust construction. UL 67, UL 50 certifications and a NEMA 3R enclosure ensure reliable performance in varied environments, including outdoors or damp locations. This solution also delivers notable business value by combining BR compatibility with a scalable configuration, enabling faster procurement, easier servicing, and reduced total cost of ownership for panel upgrades and retrofit projects.
Product Information
Extended Description
BRP40L200R Eaton: Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X6,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,80 Circuits,Single-pole,40 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1–300 kcmil
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP40L200R
UPC
786689059040
Product Length/Depth
3.88 in
Product Height
34.13 in
Product Width
14.31 in
Product Weight
22 lb
Warranty
10 year
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Main circuit breaker
BR
Number of circuits
80
Number Of Poles
Single-pole
Number of spaces
40
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X6
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 3R
Number of wires
3
Feature: 200 A main lug capacity provides a robust distribution point for diverse branch circuits. -> Business Impact: Supports reliable power delivery to commercial lighting, outlets, and small motor loads while minimizing the need for upstream gear changes. -> Application: Ideal for light industrial and commercial panels where BR-type breakers are standard. Feature: 40 spaces and 80 circuits offer substantial expansion headroom without multiple enclosures. -> Business Impact: Reduces footprint, labor, and material costs during installations or revamps. -> Application: Suitable for new builds and retrofit projects within data centers, workshops, and facilities management. Feature: Aluminum bus material lowers weight and improves corrosion resistance. -> Business Impact: Easier handling during installation and long-term performance in humid or outdoor environments. -> Application: Preferred in outdoor cabinets or exposed indoor locations where handling efficiency matters. Feature: NEMA 3R metallic enclosure and 10 kAIC interrupt rating deliver protection and fault tolerance. -> Business Impact: Enhances safety and uptime, supports code-compliant outdoor installations, and reduces maintenance interruptions. -> Application: Outdoor feeder distribution and weather-protected indoor spaces. Feature: Cover included with compatibility for BR 1-inch breakers ensures fast, lockout-ready service. -> Business Impact: Streamlines commissioning and future upgrades, reducing downtime. -> Application: Retrofit projects and new installations relying on BR type breakers for modularity. Feature: 120/240 V single-phase operation aligns with common facility electrical systems. -> Business Impact: Minimizes wiring complexity and simplifies integration with standard commercial lighting and receptacle circuits. -> Application: Office, retail, and light manufacturing environments seeking straightforward distribution. Feature: 10-year warranty and UL certifications provide assurance against field issues and regulatory concerns. -> Business Impact: Improves procurement confidence and long-term cost predictability. -> Application: Enterprises pursuing strict compliance and extended service life for critical distribution.
Get a Quick Quote for a Eaton BRP40L200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP40L200R?
Enquire Now
FAQs
Plan for a 120/240 V single-phase supply, ensure BR 1-inch breakers are compatible, and allocate space for up to 40 circuits. Verify mounting clearances for a NEMA 3R outdoor-ready enclosure and ensure support for a 10 kAIC fault current. Proper labeling and cover installation simplify maintenance and future upgrades.
It uses UL 67 and UL 50 certified components within a NEMA 3R metallic enclosure, rated for 10 kAIC, with a BR main circuit breaker framework. The design supports code-compliant distribution, enables safe access, and reduces risk during routine service and fault events in compliant facilities.
Yes, the loadcenter is designed for use with BR 1-inch breakers and provides 40 spaces across 80 circuits. This configuration supports flexible circuit layouts for lighting, receptacles, and small motors while maintaining a compact footprint.
The BRP40L200R includes a 10-year warranty, with UL certifications validating reliability. The metallic NEMA 3R enclosure and cover simplify access for inspection and servicing, reducing downtime and maintenance complexity in routine panel work.
Industries with commercial and light industrial setups—retail, offices, manufacturing, and facilities management—benefit from space savings, easy BR breaker upgrades, and long-term cost efficiency. The unit’s rugged enclosure, high fault rating, and straightforward installation support faster project timelines and a lower total cost of ownership.
