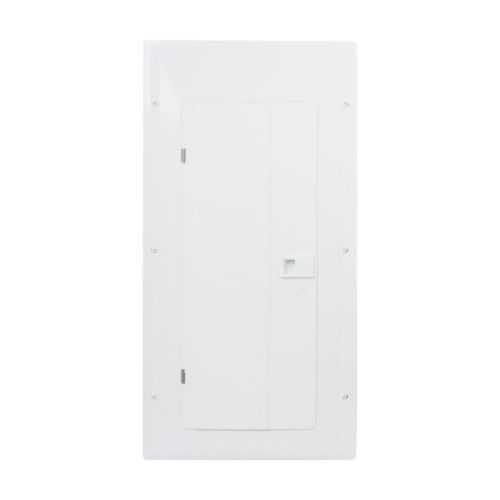

Eaton BRP40L200UGW Main Lug Load Center - UL 67 UL 50
Part Number: BRP40L200UGW
Quick Summary
The Eaton BRP40L200UGW is a main lug loadcenter for reliable 120/240V distribution in commercial panels. Without a main breaker, installation and wiring planning can be challenging when space or labeling is tight. Built to UL 67 and UL 50 standards with a NEMA 1 enclosure and 10 kAIC interrupt rating, this MLO panel supports safe, code-compliant service. The combination of aluminum bus, 40 spaces, and BR 1-inch breaker compatibility delivers scalable protection with straightforward maintenance and future expansion opportunities for electrical teams and contractors. Users gain faster commissioning, simplified labeling, and predictable performance across service entrances in small to mid-size facilities.
Product Information
Extended Description
BRP40L200UGW Eaton: Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,200 A,X6,Aluminum, NEMA 1,10kAIC,80 Circuits,40 pole,40 Spaces,Riser Type,Single-phase,Type BR 1-inch breakers,120/240V,#6-2/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP40L200UGW
UPC
786689858193
Product Length/Depth
34.12 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
29.3 lb
Certifications
UL 67 UL 50
Type
MLO
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
80
Number Of Poles
Single-pole
Number of spaces
40
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Box size
X6
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
200 A main lug capacity delivers scalable distribution for up to 80 circuits across 40 spaces, reducing the need for additional panels and wiring complexity in growing facilities. Business impact: improved space utilization and reduced capex on expansion with reliable, code-compliant power distribution. Application: service panels for small to mid-size commercial and light industrial settings. Aluminum bus material lowers weight during field installation, easing handling and reducing labor time while maintaining strength and conductivity for long-term reliability. Business impact: faster installs and safer, easier maintenance. Application: retrofit projects and new builds with standard BR 1-inch breakers for common protection. NEMA 1 metallic enclosure provides indoor protection, ensuring durable operation in dry environments and minimizing corrosion risk. Business impact: predictable performance and compliant enclosures across facility interiors. Application: indoor electrical rooms and protected spaces. Cover included and ground bar included streamline assembly and grounding integrity. Business impact: fewer field parts and faster commissioning. Application: turnkey installations with minimal sourcing hassles. Riser Type and 80 circuits support vertical mounting and straightforward expansion. Business impact: flexible placement in riser corridors and rooftops indoors. Application: multi-line distribution in tight spaces. Compatibility with Type BR 1-inch breakers reduces inventory and simplifies upgrades. Business impact: lower total cost of ownership and easier future-proofing. Application: modernization projects and new builds using common BR breakers.
Get a Quick Quote for a Eaton BRP40L200UGW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP40L200UGW?
Enquire Now
FAQs
Yes. The BRP40L200UGW is designed as a main lug load center that accepts Type BR 1-inch breakers, enabling seamless upgrades or expansions within BR-series panel systems. It includes a ground bar and a cover for safe, compliant field installation, and the riser-type enclosure supports vertical mounting in standard electrical spaces.
The unit carries a 10 kAIC interrupt rating and is rated for 120/240V single-phase service. These ratings support typical commercial and light industrial distribution while meeting common safety and performance requirements for branch circuit protection.
Yes. With 200 A capacity, 80 circuits, and 40 spaces, the BRP40L200UGW is well-suited for service entrances and distribution in small-to-mid-size commercial facilities or light-industrial environments, offering scalable protection in a compact NEMA 1 enclosure.
This Eaton BR load center aligns with UL 67 and UL 50 certifications and features a NEMA 1 enclosure. These certifications support compliance with electrical safety standards and local codes for indoor, dry environments, ensuring reliable performance and easier approvals during inspections.
Maintenance benefits include straightforward replacement/upgrade of BR 1-inch breakers due to standardized compatibility and a sturdy aluminum bus that reduces weight during servicing. ROI advantages come from space savings with 40 spaces, 80 circuits, and the ability to expand without a full panel upgrade, lowering total cost of ownership over the equipment lifecycle.
