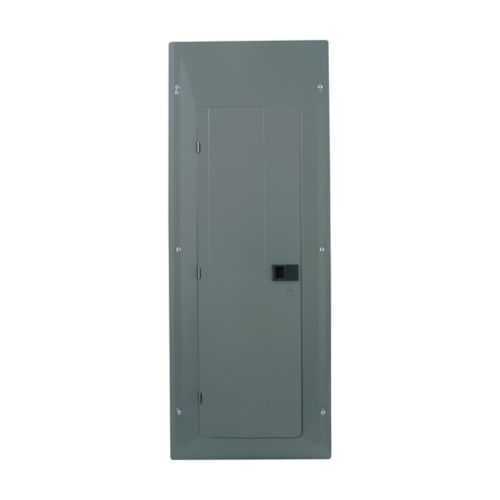

Eaton BRP42LC225 Main Lug Loadcenter - UL 67
Part Number: BRP42LC225
Quick Summary
The Eaton BRP42LC225 main lug loadcenter is a compact solution for distributing power in commercial panels and light industrial controls. When space is limited or maintenance windows are tight, a main lug configuration simplifies wiring and reduces component count, speeding commissioning and service. This unit is UL listed with UL 67 and UL 50, supports NEMA 1 metallic enclosures, and is designed for surface or flush mounting where indoor protection is required. With 225 A capacity, 84 circuits, and copper bus, it combines robustness with straightforward installation. For integration into existing BR systems, its compatibility with #6-1/0 AWG Cu/Al conductors and 120/240V single-phase power makes it a practical, scalable choice for evolving electrical infrastructure.
Product Information
Extended Description
BRP42LC225 Eaton: Eaton Eaton BR main lug loadcenter,Main Lug Only,Main lug only,225 A,X8,Copper,Gray, NEMA 1,Metallic,10kAIC,BR,Surface,flush,NEMA 1,84 Circuits,Single-pole,42 Spaces,Two hots,a neutral and a ground,Single-phase,1,120/240V,#6-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP42LC225
UPC
786689055042
Product Length/Depth
39 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
37.4 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Main Lug Only
Type
Main Lug Only
Amperage Rating
225 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface, flush
Number of circuits
84
Number Of Poles
Single-pole
Number of spaces
42
Phase
Single-phase
Used with
BR
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X8
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Quantity
1
Feature: Main Lug Only configuration reduces panel footprint and simplifies wiring. Benefit: Faster field installation, fewer components to source, and easier future expansion in industrial control panels. Application: Ideal for service entrances and commercial/industrial panels where space saving is critical. Feature: 225 A amperage rating and 84 circuits by 42 spaces. Benefit: High-capacity distribution with clear headroom for growth, reducing the need for early upgrades in machinery and automation lines. Application: Suitable for heavy-load feeders in manufacturing lines and centralized control rooms. Feature: Copper bus and NEMA 1 metallic enclosure. Benefit: Excellent conductivity with durable indoor protection, lowering contact resistance and improving long-term reliability. Application: Indoor factory environments requiring sturdy enclosures and low maintenance. Feature: 10 kAIC interrupt rating and BR main circuit breaker compatibility. Benefit: Robust short-circuit protection and compatibility with BR series protection strategies, enhancing safety and compliance. Application: Critical automation panels and hazard-prone distribution zones. Feature: Wiring and mounting flexibility. Benefit: Supports #6-1/0 AWG Cu/Al conductors and offers surface or flush mounting in a NEMA 1 enclosure, enabling straightforward retrofits and streamlined installation for new builds. Application: Electrical infrastructure upgrades and general panel fabrication in industrial facilities. Feature: 10-year warranty and industry-leading standards. Benefit: Lower total cost of ownership through extended coverage and proven Eaton reliability. Application: Procurement for long-term automation projects and panel shop stocking.
Get a Quick Quote for a Eaton BRP42LC225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP42LC225?
Enquire Now
FAQs
BRP42LC225 is a main lug only loadcenter designed for BR-series systems. It uses main lugs rather than a built-in main breaker, and it accommodates BR branch devices. This simplifies wiring when the main supply is provided upstream and keeps the enclosure compact for controlled distribution in BR-based installations.
Key specs include a 225 A amperage rating, 84 circuits with 42 spaces, 120/240 V single-phase, copper bus, and a 10 kAIC interrupt rating. It uses #6-1/0 AWG Cu/Al conductors and features a NEMA 1 metallic enclosure with surface or flush mounting for indoor use.
Yes. Its 225 A capacity, 84 circuit count, copper bus, and robust enclosure make it well-suited for automation panels, control rooms, and equipment feeds in manufacturing environments where reliable, scalable power distribution is essential.
The unit is UL listed with UL 67 and UL 50 ratings, alongside NEMA 1 enclosure classification. These certifications indicate compliance with enclosure integrity, fire and electrical safety, and suitability for indoor industrial environments, which helps with regulatory acceptance and risk management.
A 10-year warranty supports longer asset life and lower maintenance costs, while its simple main lug design reduces downtime during wiring changes. The combination of compact footprint, high circuit capacity, and durable enclosure translates to lower lifecycle costs in automation and electrical infrastructure projects.
