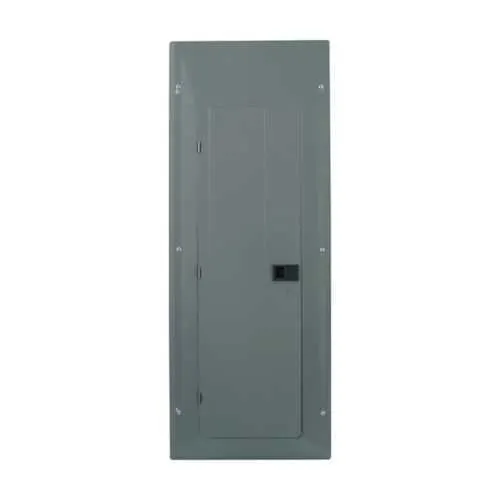

Eaton BRP42LC225G Main Lug Loadcenter - NEMA 1
Part Number: BRP42LC225G
Quick Summary
The Eaton BRP42LC225G is a BR main lug loadcenter for commercial and light industrial panel distributions. Engineers often wrestle with bulky installations, space-constrained electrical rooms, and the challenge of clean neutral and ground management under load. This unit is UL 67 and UL 50 listed and uses a NEMA 1 enclosure, delivering reliable compliance and safe operation. Designed for copper bus and straightforward surface or flush mounting, it supports 225 A at 120/240V, speeding installs and reducing downtime in electrical infrastructure projects.
Product Information
Extended Description
BRP42LC225G Eaton: Eaton Eaton BR main lug loadcenter,Main Lug Only, Ground bar,Main lug only,225 A,X8,Copper,Gray, NEMA 1,10kAIC,BR,Surface,flush,84 Circuits,Single-pole,42 Spaces,a neutral and a ground,Single-phase,1,120/240V,#6-1/0 AWG Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP42LC225G
UPC
786689055059
Product Length/Depth
39 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
36.3 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
Main Lug Only
Type
Main Lug Only
Amperage Rating
225 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
BR
Mounting
Surface, flush
Number of circuits
84
Number Of Poles
Single-pole
Number of spaces
42
Phase
Single-phase
Used with
BR
Voltage rating
120/240V
Wire size
#6-1/0 AWG Cu/Al
Box size
X8
Color
Gray
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
Two hots, neutral and ground
Quantity
1
Feature: Main Lug Only design simplifies configuration and reduces component count, improving installation efficiency and reducing upfront costs. Business Impact: Fewer parts mean faster panel assembly and easier field service in tight spaces. Application: Service entrances and retrofit projects where a main breaker is not required, delivering streamlined electrical infrastructure. Feature: 42 spaces and 84 circuits maximize panel density without expanding enclosure footprint. Business Impact: Higher capacity per footprint reduces cabinet counts and saves floor space in compact industrial facilities. Application: New builds and modernization of commercial panels with growing branch circuit demands. Feature: Copper bus material offers low resistance and robustness for reliable power delivery. Business Impact: Improved voltage regulation and long-term durability lower maintenance costs. Application: All BR-series compatible installations requiring high reliability. Feature: Surface and flush mounting options with a NEMA 1 metallic enclosure support versatile installation. Business Impact: Flexible mounting reduces install time and adapts to room constraints. Application: Open or mounted electrical rooms in regulated environments. Feature: Includes ground bar and cover, with #6-1/0 AWG Cu/Al wire capability and 120/240V operation. Business Impact: Simplifies grounding, minimizes field wiring errors, and accommodates diverse conductor choices. Application: New constructions and upgrades in commercial facilities seeking scalable, compliant panels.
Get a Quick Quote for a Eaton BRP42LC225G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP42LC225G?
Enquire Now
FAQs
The BRP42LC225G supports surface or flush mounting in a NEMA 1 metallic enclosure with a ground bar and cover included. It accepts #6-1/0 AWG Cu/Al conductors and is designed for 120/240V, single-phase service. Ensure BR-compatible breakers are used and plan for up to 84 circuits across 42 spaces to optimize wiring runs and space use.
Yes. This unit is specified for 120/240V single-phase operation, with 225 A rated current, 42 spaces, and 84 circuits. It is purpose-built for single-phase service panels in commercial or light industrial environments, enabling straightforward power distribution without a main breaker.
The BRP42LC225G is UL listed under UL 67 and UL 50 and configured as a NEMA 1 enclosure. Eaton backs it with a 10-year warranty, reflecting long-term reliability for critical electrical infrastructure in busy facilities.
The BRP42LC225G provides 84 circuits across 42 spaces and accepts #6-1/0 AWG Cu/Al conductors. With a copper bus and ground bar included, you get robust power distribution with versatile wiring options for both new builds and retrofits.
As a Main Lug Only unit, it pairs with BR-series breakers for a streamlined, main-breaker-free configuration. The included cover, surface/flush mounting options, and copper bus support reliable connections, easier maintenance, and reduced downtime in demanding industrial environments.
