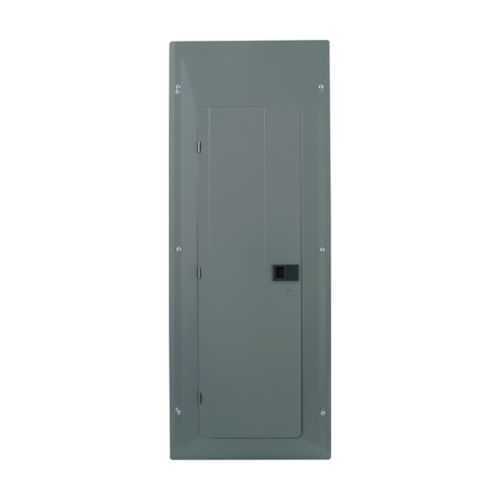

Eaton BRP42LC225GW BR Main Lug Loadcenter - UL 50 UL 67
Part Number: BRP42LC225GW
Quick Summary
The Eaton BR main lug loadcenter is a plug-on neutral power distribution solution that enables reliable 225 A service with 84 circuits for commercial and light industrial panels. This unit addresses the common pain points of wiring complexity, space constraints, and lengthy installation times by delivering a compact, field-proven design. It carries UL 50 and UL 67 listings, and features a copper bus and a NEMA 1 metallic enclosure for robust indoor protection. With a cover included and Type BR 1-inch breakers compatibility, it also supports fast commissioning and straightforward future expansion, reducing downtime and maintenance costs for electrical distribution upgrades.
Product Information
Extended Description
BRP42LC225GW Eaton: Plug-on neutral main circuit breaker loadcenter,225A,Cover included,White,Combination,Type BR 1-inch breakers
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRP42LC225GW
UPC
786689242541
Product Length/Depth
39 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
36.3 lb
Certifications
UL 50 UL 67
Type
Plug-on neutral main circuit breaker loadcenter
Amperage Rating
225 A
Bus material
Copper
Cover
Cover included
Number of circuits
84
Number Of Poles
Single-pole
Number of spaces
42
Phase
Single-phase
Enclosure color
White
Mounting
Combination
Used with
Type BR 1-inch breakers
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Feature: 225 A main lug loadcenter with 84 circuits. Business impact: supports large panel requirements without multiple enclosures, reducing shopping trips and installation time. Application: ideal for central building distribution where space is at a premium. Feature: Plug-on neutral main circuit breaker loadcenter. Business impact: simplifies wiring and fault isolation, accelerating commissioning and serviceability. Application: new builds and retrofit projects in commercial spaces. Feature: 42 spaces across a single-phase, 84-circuit capacity. Business impact: max circuit density with predictable fill patterns, lowering panel redesign risk. Application: industrial control rooms and manufacturing lines requiring extensive circuit distribution. Feature: NEMA 1 metallic enclosure with cover included, white finish. Business impact: indoor protection and quick enclosure setup, lowering enclosure mismatch issues. Application: indoor panels in offices, shops, and light manufacturing. Feature: UL 50 and UL 67 certified, 25 kAIC interrupt rating, copper bus. Business impact: enhanced safety and reliability with proven short-circuit protection; supports compliance with industry standards. Application: high-need environments where maintainable, code-compliant distribution is essential.
Get a Quick Quote for a Eaton BRP42LC225GW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRP42LC225GW?
Enquire Now
FAQs
Plan for a 39 inch depth, 14.31 inch width, and 3.88 inch height footprint to fit standard electrical rooms. Ensure copper bus connections are clean and terminals are torqued to manufacturer spec. The unit ships with a cover for indoor protection, and mounting is designed for combination installation with Type BR 1-inch breakers.
This BR main lug loadcenter is designed to be used with Type BR 1-inch breakers. Using the designated BR family ensures proper fit, trip characteristics, and warranty validity, while enabling consistent spares availability and streamlined maintenance.
The BRP42LC225GW carries UL 50 and UL 67 listings, supports a 25 kAIC interrupt rating, and uses a copper bus with a NEMA 1 metallic enclosure. These specifications provide reliable short-circuit protection, indoor suitability, and alignment with common electrical codes for commercial and light industrial panels.
The loadcenter measures 39 inches in length, 14.31 inches in width, and 3.88 inches in height, with an approximate weight of 36.3 pounds. These dimensions help in cabinet and service room planning, ensuring proper clearance and ventilation for safe operation.
Choosing the BRP42LC225GW consolidates distribution into a single, high-capacity enclosure, enabling faster installations, easier future expansion, and improved reliability with UL-rated protection. The combination mounting, cover-included design, and compatibility with BR breakers reduce lifecycle costs by simplifying maintenance and spare-part procurement.
