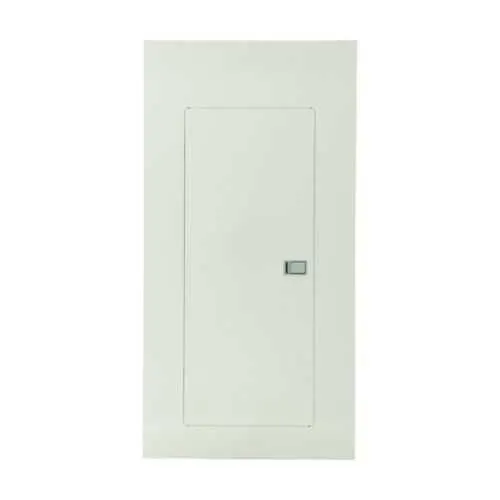

Eaton BRT3060L200 Main Lug Load Center - UL 50/UL 67
Part Number: BRT3060L200
Quick Summary
Eaton BR main lug loadcenter provides a compact, ready-to-install power distribution hub for commercial and light industrial panelboards. When space is tight or compliance requires documented ratings, installation and ongoing maintenance can become a bottleneck. UL 50 and UL 67 certifications, plus the NEMA 1 enclosure and 10 kAIC interrupt rating, boost reliability and regulatory confidence. This product delivers a robust, install-ready solution that reduces labor time and lifecycle costs, with compatibility for Type BR 1-inch breakers and 120/240V systems.
Product Information
Extended Description
BRT3060L200 Eaton: Eaton Eaton BR main lug loadcenter,No feed-thru lugs, 200 A,Aluminum, Metallic,10 kAIC,NEMA 1,60 Circuits,Twenty-four pole,30 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRT3060L200
UPC
786689022648
Product Length/Depth
4.1 in
Product Height
30.5 in
Product Width
15.31 in
Product Weight
29 lb
Warranty
10 year
Certifications
UL 50 UL 67
Special features
No feed-thru lugs
Type
Main lug
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
60
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#1 AWG-300 kcmil Cu/Al
Enclosure
Riser panel
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
3
200 A amperage rating aligns the BR main lug center with common commercial and light industrial service requirements. This specification supports configurable feeders while maintaining feeder protection margins, reducing the need for oversized upstream equipment. In application, it accommodates typical subpanel feeds used in small facilities and retrofit projects, offering reliable scalability.No feed-thru lugs simplify field wiring and minimize potential fault paths, boosting reliability during commissioning. This design choice reduces wiring complexity and inventory considerations for installers and service teams. In practice, it streamlines initial power-up and supports faster changeouts in busy facilities.Aluminum bus material delivers lighter weight compared with copper alternatives, easing handling during installation and maintenance. It also provides robust conductivity with corrosion resistance suitable for indoor environments. For installers, the lighter package translates to shorter labor times and safer, simpler assembly.With 60 circuits and 30 spaces across a single-phase, 24-pole configuration, the loadcenter offers ample distribution headroom for general-purpose loads. The combination supports organized circuit tagging and future expansion without multiple enclosures. This capacity profile aligns with common needs in office buildings, light manufacturing, and data-center peripheral rooms.NEMA 1, metallic enclosure provides indoor protection suitable for finished spaces, with a durable cover included to speed installation. The rugged construction supports long service life under typical factory and commercial environments. A 10-year warranty adds financial peace of mind, reducing lifecycle cost and risk of unexpected failures.Designed to be used with Type BR 1-inch breakers, it leverages widely available, field-replaceable components. The 120/240V single-phase rating simplifies spec planning and permits common electrical design practices. Together, compatibility and standardization help lower procurement risk and shorten project timelines.
Get a Quick Quote for a Eaton BRT3060L200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRT3060L200?
Enquire Now
FAQs
Begin by planning for a 200 A service with 120/240 V single-phase loads. Mount the riser-panel enclosure, wire the lugs to the main conductors, and assign the 60 circuits across the 30 available spaces. Install the included cover, verify UL 50/UL 67 compliance, and ensure the system is tied to proper overcurrent protection with Type BR 1-inch breakers. Follow manufacturer torque specifications and include proper grounding per local codes.
The BRT3060L200 is designed to work with Type BR 1-inch breakers. This compatibility ensures readily available, field-replaceable components, simplifying procurement and maintenance while maintaining system compliance and performance.
Yes. The unit is specified for 120/240V single-phase operation and includes a metallic NEMA 1 enclosure, making it suitable for indoor commercial environments such as offices and light manufacturing facilities, while delivering robust protection and organized distribution.
The BRT3060L200 carries UL 50 and UL 67 certifications, a 10 kAIC interrupt rating, and a NEMA 1 enclosure rating. These certifications ensure reliable performance under fault conditions, code compliance for electrical installations, and protection appropriate for indoor environments, reducing risk during audits and commissioning.
The unit’s no feed-through lugs design, aluminum bus, and Type BR breaker compatibility reduce wiring complexity and labor during installation and maintenance. A 10-year warranty further lowers lifecycle risk. Together, these factors translate to faster commissioning, lower maintenance costs, and improved project ROI for facilities with frequent panel changes or expansions.
