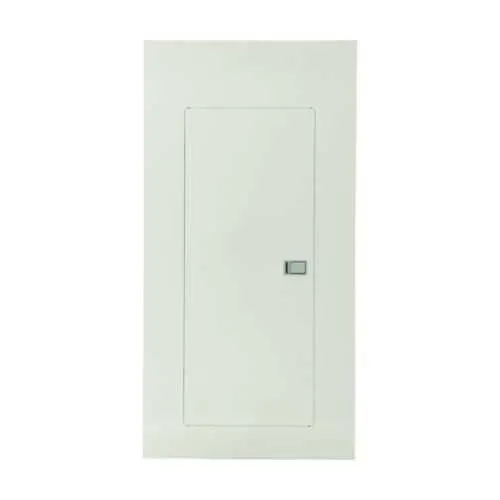

Eaton BRT3060L200RIS BR Main Lug Loadcenter - 10 kAIC
Part Number: BRT3060L200RIS
Quick Summary
The Eaton BR main lug loadcenter is a compact panel distribution solution designed for 200 A services and up to 60 circuits in commercial or light-industrial settings. It addresses retrofit challenges such as tight spaces, wiring complexity, and schedule pressure by providing a straightforward, field-usable enclosure with a robust cover for safety. UL listings UL 67 and UL 50 underpin safety and reliability, while the NEMA 1 enclosure rating supports indoor, dry environments. With BR compatibility and support for #1 AWG to 300 kcmil Cu/Al conductors, this loadcenter offers installation efficiency and long-term value, especially when paired with Type BR 1-inch breakers for scalable protection.
Product Information
Extended Description
BRT3060L200RIS Eaton: Eaton Eaton BR main lug loadcenter,No feed-thru lugs, 200 A,Aluminum, Riser panel,Metallic,10 kAIC,NEMA 1,60 Circuits,Twenty-four pole,30 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#1 AWG-300 kcmil Cu/Al
Product Name
Eaton BR main lug loadcenter
Catalog Number
BRT3060L200RIS
UPC
786689022631
Product Length/Depth
4.1 in
Product Height
30.5 in
Product Width
15.31 in
Product Weight
29 lb
Warranty
10 year
Certifications
UL 67 UL 50
Special features
No feed-thru lugs
Type
Main lug
Amperage Rating
200 A
Bus material
Aluminum
Cover
Cover included
Number of circuits
60
Number of spaces
30
Phase
Single-phase
Used with
Type BR 1-inch breakers
Voltage rating
120/240V
Wire size
#1 AWG-300 kcmil Cu/Al
Enclosure
Riser panel
Enclosure material
Metallic
Interrupt rating
10 kAIC
NEMA rating
NEMA 1
Number of wires
3
Feature: 200 A amperage rating enables a compact, scalable service entry for mid-size commercial and light-industrial panels. Business Impact: Reduces upstream distribution costs while delivering reliable fault clearing. Application: Suitable for 120/240 V single-phase feeders in offices and small manufacturing spaces. Feature: 60 circuit capacity across 30 spaces with no feed-through lugs. Business Impact: Simplifies wiring, minimizes splice points, and speeds panel upgrades or retrofits. Application: Ideal for remodels where speed and clean access to conductors matter. Feature: Aluminum bus material with a metallic riser panel enclosure. Business Impact: Lightweight handling, corrosion resistance, and sturdy installation in riser configurations. Application: Vertical installations in service rooms or utility corridors. Feature: NEMA 1 enclosure with 10 kAIC interrupt rating and UL 67/UL 50 listings. Business Impact: Enhanced indoor safety and regulatory compliance, reducing commissioning risk. Application: Environments requiring durable, code-approved distribution centers. Feature: 120/240 V single-phase design, with Type BR 1-inch breaker compatibility. Business Impact: Streamlines protection coordination and stock management. Application: New builds or retrofits using BR-series breakers for standardization. Feature: Cover included for rapid shutdown readiness and safety. Business Impact: Improves protection during maintenance and reduces accidental contact risk. Application: Daily operation and service windows. Feature: Wire size range from #1 AWG to 300 kcmil Cu/Al. Business Impact: Supports large feeders and future capacity increases without panel replacement. Application: Industrial feeds and multi-branch circuits requiring substantial conductor sizes.
Get a Quick Quote for a Eaton BRT3060L200RIS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BRT3060L200RIS?
Enquire Now
FAQs
Yes. This Eaton BR main lug loadcenter is designed to work with Type BR 1-inch breakers and supports single-phase 120/240V service. It provides 60 circuit capacity across 30 spaces and accepts conductor sizes from #1 AWG to 300 kcmil Cu/Al, enabling straightforward expansion and protection coordination.
The BRT3060L200RIS offers a 10 kAIC interrupt rating, which defines the maximum fault current the panel can safely interrupt. This rating supports typical commercial and light-industrial distribution scenarios and helps ensure short-circuit protection aligns with upstream protective devices without compromising safety.
This loadcenter is ideal for indoor, dry environments such as offices, retail spaces, and light manufacturing facilities. Its NEMA 1 enclosure, aluminum bus, and corrosion-resistant metallic riser panel deliver reliable performance in retrofit projects or new installations where space is at a premium and fast commissioning is required.
The unit is UL-listed with UL 67 and UL 50 listings and features a NEMA 1 enclosure rating. These certifications indicate adherence to electrical safety and performance standards for enclosures and switchgear used in typical indoor distribution applications.
Maintenance benefits include a covered design that reduces exposure to dust and accidental contact, modular BR breaker compatibility for easier part replacement, and a durable aluminum bus that resists corrosion. ROI comes from quicker installations, reduced field wiring errors, fewer spare parts, and scalable protection for evolving loads without panel replacement.
