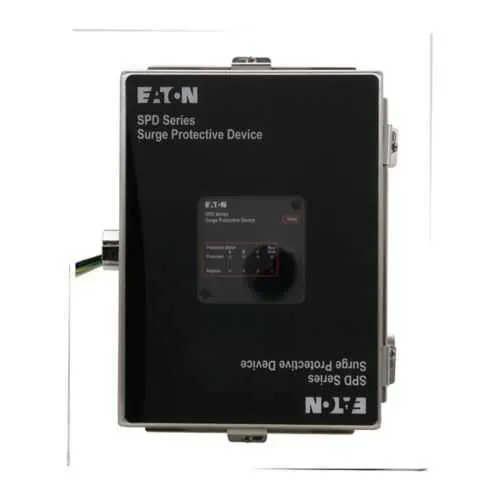

Eaton BSPD200240D3P BSPD surge protection device - 200 kAIC, NEMA 4X
Part Number: BSPD200240D3P
Quick Summary
BSPD surge protection device from Eaton delivers reliable surge suppression for industrial power panels and equipment. This solution helps prevent downtime and hardware damage caused by transient overvoltages across control cabinets, drives, and feeders. The unit features a rugged NEMA 4X enclosure and a 200 kAIC interrupt rating, with SCAQMD compliance noted by the manufacturer. As part of the BSPD line, it integrates with Eaton Bussmann protection strategies, offering a familiar footprint for retrofit projects and ongoing maintenance. For engineers and procurement teams, the BSPD200240D3P represents a balance of rugged protection, installability, and lifecycle value in demanding environments.
Product Information
Extended Description
BSPD200240D3P Eaton: Eaton Bussmann series BSPD surge protection device, 200 kAIC, Surge protection device, BSPD series, NEMA 4X - BSPD200240D3P
Product Name
Eaton Bussmann series BSPD surge protection device
Catalog Number
BSPD200240D3P
UPC
786685933757
Product Length/Depth
14 in
Product Height
7 in
Product Width
10 in
Product Weight
12 lb
Compliances
SCAQMD compliance Contact Manufacturer
Type
Surge protection device
Enclosure
NEMA 4X
Interrupt rating
200 kAIC
Series
BSPD
Feature: 200 kAIC interrupt rating. Business Impact: Superior surge handling reduces the likelihood of internal damage to downstream devices, lowering unscheduled downtime and warranty costs. Application: Ideal for motor drives, switchgear, and critical control panels where high-energy surges are expected. Feature: NEMA 4X enclosure. Business Impact: Weatherproof, dust-tight, and corrosion-resistant performance supports outdoor and wash-down environments, extending service life and reducing maintenance frequency. Application: Outdoor substations, exposed panels, and harsh industrial facilities. Feature: BSPD series compatibility and cataloging. Business Impact: Streamlined procurement, easier盤 legacy replacements, and coherent spares management with existing Eaton Bussmann protection strategies. Application: Retrofit projects and new installations within the BSPD family. Feature: Dimensions and weight (14 in L x 10 in W x 7 in H; 12 lb). Business Impact: Predictable space planning and mounting confidence in crowded or compact panels, enabling faster installation and fewer field adaptations. Application: Panelboards, switchgear housings, and machinery control cabinets. Feature: General specifications and part identity (Catalog Number BSPD200240D3P; UPC 786685933757). Business Impact: Clear part tracing supports asset management, maintenance scheduling, and compliance documentation. Application: Inventory control and field service with minimal downtime. Feature: Compliance note (SCAQMD compliance – Contact Manufacturer). Business Impact: Supports regulatory workflows in regions with air quality and industrial emissions considerations, reducing project risk. Application: Facilities requiring environmental compliance alongside electrical protection. Feature: Robust protection for long-term reliability. Business Impact: Extends equipment life, preserves uptime, and supports predictable total cost of ownership. Application: Industrial OEMs, data centers, and process automation environments.
Get a Quick Quote for a Eaton BSPD200240D3P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BSPD200240D3P?
Enquire Now
FAQs
The BSPD200240D3P is designed for integration within standard electrical panels as part of Eaton’s BSPD series. Installers should follow the BSPD catalog guidelines for mounting hardware, ensure adequate clearance around the unit, and connect input/output conductors per the device’s wiring diagram. Its 14” L x 10” W x 7” H footprint supports typical panel layouts, while the 12 lb weight facilitates handling during installation. Verify enclosure rating requirements and regional compliance needs prior to deployment.
A 200 kAIC interrupt rating indicates the device can safely interrupt and divert high-energy surge currents up to 200 kiloamperes on a single-event basis. This rating provides robust protection for critical equipment such as motor drives and PLCs, reducing the risk of insulation damage and downstream fail-ures during large transients. It also supports longer system life and lower repair costs in facilities with high transient activity.
Yes. The BSPD200240D3P utilizes a NEMA 4X enclosure, which is designed to resist wind-driven rain, corrosion, and dust ingress. This makes it suitable for outdoor installations, damp locations, and wash-down areas commonly found in manufacturing floors and processing plants. Ensure proper mounting and ventilation per the installation guidelines to maintain performance over time.
The product notes SCAQMD compliance with a directive to contact the manufacturer for specifics. While other regional certifications are not listed in the provided data, confirming SCAQMD and enclosure compliance helps align with environmental and safety requirements in applicable facilities. For projects with strict regulatory needs, request formal documentation from Eaton and verify compatibility with local electrical standards.
The BSPD200240D3P helps protect expensive downstream equipment from transient surges, reducing unplanned downtime and repair costs. With a high 200 kAIC rating and durable NEMA 4X enclosure, it supports longer service life for drives, controllers, and panel components, delivering a favorable total cost of ownership over time. Asset protection, reduced maintenance, and regulatory compliance contribute to a strong business case for installing this device in critical automation and power systems.
