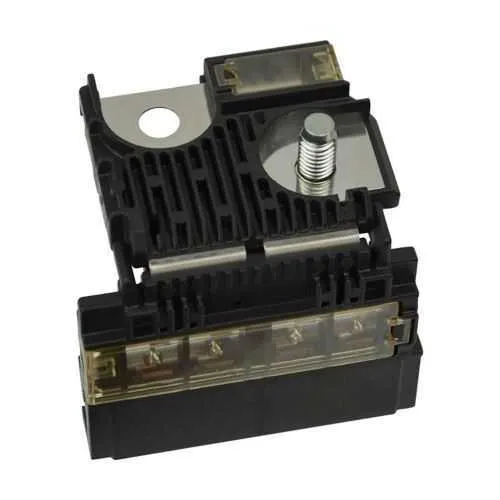

Eaton BTF-5P-1010868 Battery Terminal Fuse – RoHS Compliant
Part Number: BTF-5P-1010868
Quick Summary
Battery terminal fuse protection is the core function of the Eaton BTF-5P-1010868 for 32 Vdc battery circuits in industry and telecom. Many teams struggle with compatibility gaps, varying amperage options, and space constraints in crowded panels. This device offers a robust blade-end connection and a compact footprint that simplifies installation while reducing panel real estate. RoHS compliance is supported, with certificates available on request, ensuring regulatory alignment across regions. Designed to integrate with Eaton Bussmann series components, it supports reliable battery protection without compromising serviceability, and it complements existing 32 Vdc power architectures. For procurement, maintenance teams and designers will appreciate the clarified amperage options and the standardized packaging that streamlines stocking and spares planning.
Product Information
Extended Description
BTF-5P-1010868 Eaton: Eaton Bussmann series BTF battery terminal fuse, 32 Vdc, 100A, 100A, 80A, 60A, 80A, Non Indicating, Battery terminal fuse, Blade End, Black Housing
Product Name
Eaton Bussmann series BTF battery terminal fuse
Catalog Number
BTF-5P-1010868
UPC
051712698092
Product Length/Depth
2.125 in
Product Height
2.875 in
Product Width
2.75 in
Product Weight
0.18 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
100A, 100A, 80A, 60A, 80A
Voltage rating
32 Vdc
Material
Black housing
Packaging type
Standard
Connection
Blade end
Fuse indicator
Non-indicating
Feature → Business Impact → Application: The BTF-5P-1010868 delivers multiple amperage configurations (100A, 100A, 80A, 60A, 80A) within a single catalog number, enabling precise protection for diverse battery pack designs and reducing the need for multiple part numbers in stock. This translates to lower inventory costs and faster field replacements in telecom cabinets and industrial power systems, where downtime is costly. Feature → Business Impact → Application: Blade-end connection paired with a 2.125 in length, 2.875 in height, and 2.75 in width provides a compact, space-efficient fuse solution that fits crowded enclosures and minimizes installation effort on 32 Vdc circuits. This is especially valuable in data centers and manufacturing lines where panel density is high. Feature → Business Impact → Application: Black housing and non-indicating fuse indicator simplify visual inspection and aid in aesthetics and safety in controlled environments, while maintaining compatibility with standard blade-end terminals. This supports quick diagnostics and cleaner panel layouts in critical power applications. Feature → Business Impact → Application: RoHS compliant construction, with certificates available on request, ensures regulatory compliance across markets and reduces lifecycle risk in procurement and compliance audits. This is beneficial for global operators seeking consistent quality across sites. Feature → Business Impact → Application: The compact form factor and standard packaging type streamline maintenance routines, enabling faster fuse swaps during scheduled maintenance and emergency outages in telecom backbones and industrial automation panels. It also aligns with Eaton Bussmann series interoperability, reducing engineering validation time when upgrading protection schemes. Feature → Business Impact → Application: 32 Vdc battery protection in blade-end configurations supports reliable fault isolation at the source, helping to prevent cascade failures and extend battery life in critical power applications such as UPS-backed systems and renewable energy interfaces.
Get a Quick Quote for a Eaton BTF-5P-1010868
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BTF-5P-1010868?
Enquire Now
FAQs
The BTF-5P-1010868 uses a blade-end connection and requires matching blade terminals in the battery terminal block. Ensure the amperage rating selected matches the battery bank design (options include 100A, 80A, and 60A). Verify enclosure space fits the 2.125 in L x 2.875 in H x 2.75 in W footprint and observe manufacturer torque and clearance guidelines from Eaton's datasheet.
Amperage ratings for the BTF-5P-1010868 include 100A, 100A, 80A, 60A, and 80A. Use higher ratings for larger battery packs or higher inrush paths common in telecom power backbones, and lower ratings for smaller 12V to 24V battery subsystems in automotive or industrial automation panels. Align with system fault-clearing times and battery characteristics for optimal protection.
Yes, the BTF-5P-1010868 is RoHS compliant. Eaton provides RoHS certification documentation on request; contact the factory to obtain the certificate and ensure it meets your regional regulatory requirements. This helps streamline compliance audits and consumer electronics or industrial equipment certifications.
Industrial settings with 32 Vdc battery banks, such as data centers, telecom racks, and automated manufacturing lines, benefit most. The blade-end design and compact footprint support dense panel layouts, while multiple amperage options enable precise protection tailored to each battery string. RoHS compliance also helps meet global sourcing and sustainability targets.
You can access Eaton's specification sheet for BTF-5P-1010868 and related materials through the provided downloads: the Eaton Specification Sheet (PDF) and Bussmann series Fuseology video. The catalog number is BTF-5P-1010868, with UPC 051712698092 for inventory and procurement integration.
