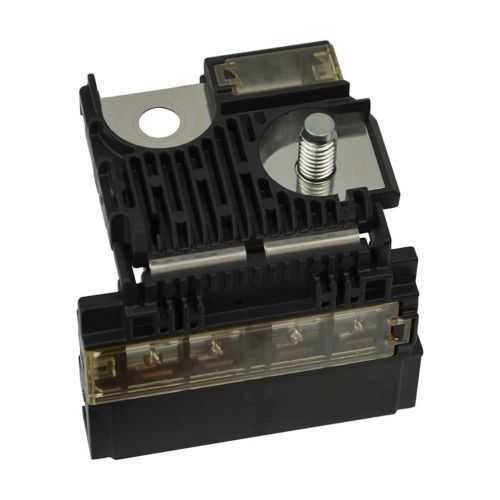

Eaton BTF-5P-1210868 Battery Terminal Fuse - 32 Vdc
Part Number: BTF-5P-1210868
Quick Summary
BTF-5P-1210868 battery terminal fuse by Eaton provides reliable overcurrent protection for DC battery terminals in industrial and telecom systems. Maintenance teams often wrestle with nuisance fuse failures and difficult inline replacements in compact enclosures. RoHS compliant, with additional certifications available by contacting the factory. A blade-end, non-indicating design delivers fast protection without intrusive indicators, helping reduce downtime and extend equipment life.
Product Information
Extended Description
BTF-5P-1210868 Eaton: Eaton Bussmann series BTF battery terminal fuse, 32 Vdc, 120A, 100A, 80A, 60A, 80A, Non Indicating, Battery terminal fuse, Blade End, Black Housing
Product Name
Eaton Bussmann series BTF battery terminal fuse
Catalog Number
BTF-5P-1210868
UPC
051712698108
Product Length/Depth
2.125 in
Product Height
2.875 in
Product Width
2.75 in
Product Weight
0.18 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
120A, 100A, 80A, 60A, 80A
Voltage rating
32 Vdc
Material
Black housing
Packaging type
Standard
Connection
Blade end
Fuse indicator
Non-indicating
Amperage options give you precise protection margins across 120A, 100A, 80A, 60A, and 80A, enabling you to match fuse ratings to battery bank conditions and minimize nuisance openings. This translates to improved system availability and a lower total cost of ownership in critical DC power networks, including industrial automation and telecom infrastructure. The 32 Vdc rating ensures compatibility with common DC supply rails, supporting plug-and-play integration in 24–48 V systems and safeguarding equipment without redesign. Blade-end connections and a robust black housing simplify field installation and enhance mechanical reliability in harsh environments, reducing installation time and the risk of loose connections in battery terminals. RoHS compliance and standard packaging streamline procurement and compliance workflows, accelerating project timelines while meeting sustainability requirements. The compact footprint (2.125 in L × 2.875 in H × 2.75 in W) and modest 0.18 lb weight support space-constrained panels and cabinets in data centers and industrial facilities. The non-indicating fuse indicator minimizes visual clutter on dense panels, lowering maintenance checks and focusing diagnostics on actual faults.
Get a Quick Quote for a Eaton BTF-5P-1210868
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BTF-5P-1210868?
Enquire Now
FAQs
Install the fuse with the blade-end connection into the battery terminal block, ensuring the housing seats firmly and is secured to prevent vibration. Confirm the amperage rating matches the circuit requirements and keep the RoHS-compliant label visible for compliance audits. The non-indicating design reduces visual clutter once installed in dense panels.
The product line includes 120A, 100A, 80A, 60A, and 80A variants. Choose a rating that protects the battery and wiring from overcurrent without tripping during normal operation. For precision, reference battery bank capacity, conductor size, and the DC system’s fault-current level to select the closest standard rating.
Yes, the fuse is RoHS compliant. For additional certifications or regulatory requirements beyond RoHS, contact Eaton to verify compatibility with your specific industry standards and approval processes.
The fuse measures 2.125 inches in length, 2.875 inches in height, and 2.75 inches in width, with a weight of 0.18 lb. These compact dimensions support installation in tight battery enclosures and panel spaces typical of industrial automation and data-center applications, enabling easier wire routing and terminal access.
This blade-end, DC-rated fuse is ideal for battery terminal protection in industrial DC power systems, telecom infrastructure, and data-center battery banks. It provides reliable overcurrent protection for 32 Vdc systems, supports standard packaging, and aligns with Bussmann-series compatibility for streamlined procurement and maintenance.
