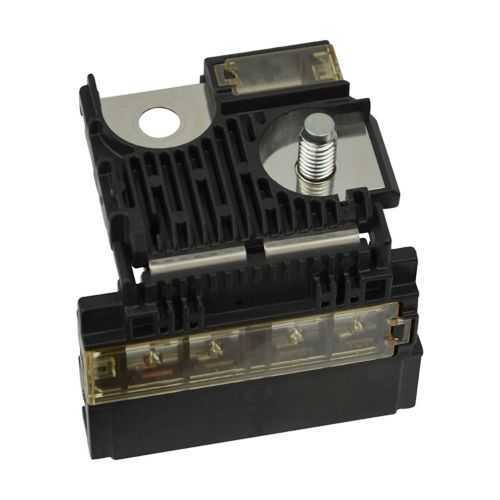

Eaton BTF-5P-225106108 Battery Terminal Fuse - 32VDC 225A
Part Number: BTF-5P-225106108
Quick Summary
The Eaton Bussmann series BTF battery terminal fuse protects battery circuits in industrial and automotive systems. Too often, incorrect sizing and non-indicating indicators delay fault isolation and extend downtime. RoHS compliant, the BTF family is designed for 32 Vdc battery networks; for other certifications such as CE or IP ratings, consult the factory. With blade-end connections and a black housing, it streamlines panel layouts and reduces spare-part inventory. This combination delivers reliable protection, ease of replacement, and improved maintenance planning for power-distribution and battery-management workflows.
Product Information
Extended Description
BTF-5P-225106108 Eaton: Eaton Bussmann series BTF battery terminal fuse, 32 Vdc, 225A, 100A, 60A, 100A, 80A, Non Indicating, Battery terminal fuse, Blade End, Black Housing
Product Name
Eaton Bussmann series BTF battery terminal fuse
Catalog Number
BTF-5P-225106108
UPC
051712698139
Product Length/Depth
2.125 in
Product Height
2.875 in
Product Width
2.75 in
Product Weight
0.18 lb
Compliances
RoHS Compliant Contact factory
Amperage Rating
225A, 100A, 60A, 100A, 80A
Voltage rating
32 Vdc
Material
Black housing
Packaging type
Standard
Connection
Blade end
Fuse indicator
Non-indicating
Feature → Business Impact → Application: The BTF battery terminal fuse offers multiple amperage ratings (225A, 100A, 60A, 100A, 80A) that enable precise protection for varied battery loads, reducing nuisance trips and extending component life in industrial power systems; application: use in battery banks and DC distribution where compact blade-end fuses simplify integration and stocking. Feature → Business Impact → Application: 32 Vdc voltage rating provides safe operation within common industrial and automotive battery networks, improving system reliability and compliance with DC protection standards; application: critical for control panels and EVSE circuits. Feature → Business Impact → Application: black housing and blade-end connection support tight panel layouts, enabling easier installation in limited spaces and cleaner wiring harnesses; application: retrofits and new-build cabinets. Feature → Business Impact → Application: RoHS compliance aligns with green manufacturing goals and regulator expectations, reducing risk for regulated environments; application: OEM assemblies and maintenance refurbishments. Feature → Business Impact → Application: standard packaging and readily available Eaton datasheets and Fuseology resources reduce procurement lead times and accelerate commissioning; application: system integration and training programs.
