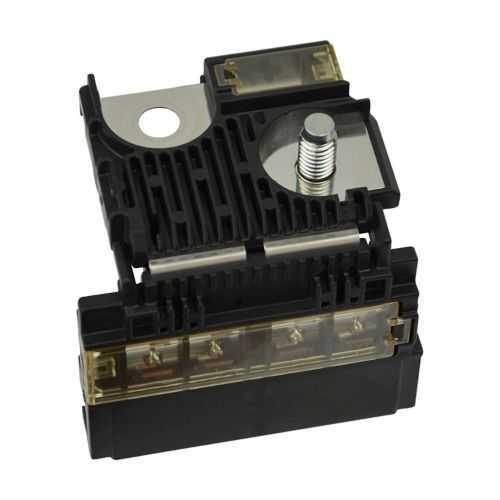

Eaton BTF-5P-25010888 Battery Terminal Fuse - 32Vdc
Part Number: BTF-5P-25010888
Quick Summary
BTF battery terminal fuse from Eaton provides fast protection for 32 Vdc battery circuits in industrial systems. This compact blade-end device helps prevent terminal damage from short circuits and thermal events, reducing downtime and replacement costs. While some protection options fail in vibration-prone environments, the BTF fuse delivers robust RoHS-compliant performance with a non-indicating design and a clear blade-end connection. For additional compliance needs, consult the factory on CE or other certifications as required. By choosing the Eaton Bussmann series, you gain reliable protection, simplified spares management, and improved uptime across critical power delivery paths in manufacturing, data centers, and field service applications.
Product Information
Extended Description
BTF-5P-25010888 Eaton: Eaton Bussmann series BTF battery terminal fuse, 32 Vdc, 250A, 100A, 80A ,80A, 80A, Non Indicating, Battery terminal fuse, Blade End, Black Housing
Product Name
Eaton Bussmann series BTF battery terminal fuse
Catalog Number
BTF-5P-25010888
UPC
051712698122
Product Length/Depth
2.125 in
Product Height
2.875 in
Product Width
2.75 in
Product Weight
0.18 lb
Compliances
Contact factory RoHS Compliant
Amperage Rating
250A, 100A, 80A ,80A, 80A
Voltage rating
32 Vdc
Material
Black housing
Packaging type
Standard
Connection
Blade end
Fuse indicator
Non-indicating
Feature: Wide amperage range including 250A, 100A, and multiple 80A ratings allows a single part to cover varied battery terminal protection needs. Benefit: Reduces inventory complexity and ensures precise protection levels, lowering total cost of ownership. Application: Suitable for diverse 32 Vdc battery systems in industrial equipment and telecom infrastructure. Feature: Blade-end connection with a black housing supports quick, secure mating and durable service in tight spaces. Benefit: Speeds installation and minimizes mechanical stress on terminals, improving field reliability. Application: Ideal for panel-mounted or terminal-block layouts where space is at a premium. Feature: Non-indicating fuse indicator avoids false alarms in noisy electrical environments. Benefit: Simplifies visual inspection and reduces maintenance overhead. Application: Useful in high-energy environments with limited diagnostic access. Feature: RoHS compliant and factory-confirmed recyclability. Benefit: Lowers regulatory risk and supports sustainability goals across OEMs and end users. Application: Aligns with green manufacturing standards in automotive, energy storage, and industrial controls. Feature: Compact dimensions and standard packaging (2.125 in L, 2.875 in H, 2.75 in W; 0.18 lb). Benefit: Easy stocking, quicker replacements, and predictable integration into existing assemblies. Application: Fits in confined enclosures and service bays typical of industrial power circuits.
Get a Quick Quote for a Eaton BTF-5P-25010888
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BTF-5P-25010888?
Enquire Now
FAQs
Install the fuse by seating it firmly onto the blade-end connection of the battery terminal, ensuring the mating surfaces are clean and free of corrosion. Check the amperage rating to match system protection needs, then secure the fuse housing to prevent vibration-induced loosening. This approach minimizes contact resistance and optimizes protection performance in industrial equipment.
The device provides multiple amperage options: 250A, 100A, and 80A (with several 80A ratings). Its 32 Vdc rating protects battery circuits from short circuits and overloads, limiting fault current to prevent terminals and wiring from overheating, which is critical in power for industrial controls and energy storage applications.
Yes, the blade-end, low-profile design and 32 Vdc rating make it suitable for automotive battery terminations and telecom power paths. Its compact housing and standard packaging support easy integration into panels and enclosures typical of vehicle power systems and data-center auxiliary power supplies.
The part is RoHS compliant, reducing regulatory risk in many markets. For other certifications such as CE or IP ratings, consult Eaton’s technical team or request the specification sheet for confirmation and any required approvals to meet your system’s regulatory requirements.
The non-indicating design minimizes nuisance indicators, reducing fault-diagnosis time in production environments. Its compact form, broad amperage options, and RoHS compliance streamline spare-part management, lower inventory costs, and improve uptime for battery terminations in industrial controls and backup power architectures.
