Eaton BX38 AC/MC Set Screw Connector - NEC/CEC
Part Number: BX38
Quick Summary
The Eaton BX38 AC/MC set screw type connector delivers secure terminations for armored cable systems in industrial environments. Installers often struggle with loose terminations, mismatched fittings, and time-consuming field adjustments; the BX38 simplifies installation and reduces downtime. It carries NEC/CEC compliance and UL certification for AC/MC connectors and is classified for Ordinary/Non-Hazardous Locations, with a zinc die-cast oval body. Designed for a 3/8 inch trade size and straightforward integration with existing Eaton and Crouse-Hinds components, it helps projects meet timelines while maintaining safety and long-term reliability. This combination supports procurement goals by delivering consistent performance, easy maintenance, and a compact footprint that fits crowded electrical spaces.
Product Information
Extended Description

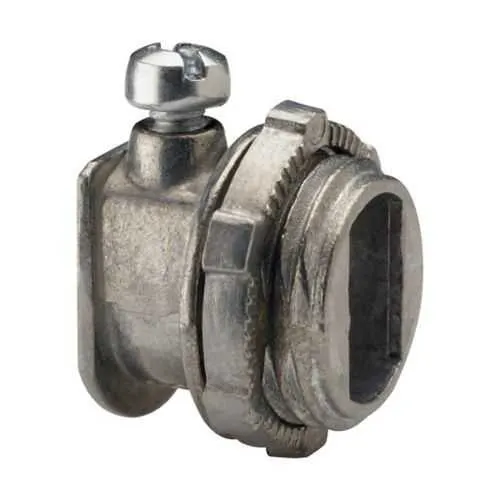

BX38 Eaton: Eaton Crouse-Hinds series AC/MC set screw type connector, AC/MC , Zinc die cast, Oval, 3/8"
Product Name
Eaton Crouse-Hinds series AC/MC set screw type connector
Catalog Number
BX38
UPC
662277006514
Product Length/Depth
1.08 in
Product Height
1.23 in
Product Width
0.79 in
Product Weight
0.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
AC/MC
Style
Set screw
Material
Zinc die cast
Trade size
3/8"
Shape
Oval
Crouse-Hinds series Connectors and Couplings - AC/MC catalog page
Connectors and Couplings - AC/MC UL certification
Connectors and Couplings - AC/MC UL certification
Eaton Specification Sheet - BX38
Feature: Set screw termination design ensures a tight, vibration-resistant connection. Business Impact: Reduces loosening under machinery vibration and minimizes rework, improving overall equipment reliability. Application: Ideal for AC/MC field terminations on motors, panels, and junctions in demanding industrial environments.Feature: Zinc die-cast construction provides durable, corrosion-resistant bodies. Business Impact: Extends service life in harsh environments and lowers replacement costs. Application: Suitable for outdoor enclosures, conduit runs near chemical exposure, and general industrial installations.Feature: Oval shape and 3/8 inch trade size ensure proper seating and compatible cable routing. Business Impact: Simplifies cable management and reduces installation time. Application: Works with standard AC/MC cable assemblies and aligns with Crouse-Hinds catalog components.Feature: NEC/CEC compliance and UL certification guarantee regulatory alignment and safety. Business Impact: Facilitates faster approvals, reduces audit findings, and supports plant safety programs. Application: Used in ordinary location installations across North American facilities.Feature: Compact dimensions and light weight enable easier routing and mounting in tight spaces. Business Impact: Improves technician productivity and lowers labor costs. Application: Fits panels, trays, and crowded conduit spaces without bulk.
Get a Quick Quote for a Eaton BX38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton BX38?
Enquire Now
FAQs
BX38 is designed for secure field terminations on armored AC/MC cable in ordinary locations. Its set screw design provides a reliable, vibration-resistant connection, which is essential for motors, panels, and junctions in industrial environments. The connector supports NEC/CEC compliance and UL certification, streamlining approvals during plant commissioning.
The BX38 employs a robust set screw mechanism that clamps the conductor firmly within the zinc die-cast body. This design resists loosening from vibration, reduces re-termination downtime, and improves long-term connection integrity in conveyors, pumps, and other machinery subject to movement.
Yes. BX38 is specifically rated for a 3/8 inch trade size and features an oval zinc die-cast body to seat cables securely. It is designed for seamless integration with Eaton Crouse-Hinds AC/MC connectors and typical field installations, enabling straightforward retrofits and new-build terminations.
BX38 carries NEC/CEC standards compliance and UL certification for AC/MC connectors. It is classified for Ordinary/Non-Hazardous Locations, which helps meet regulatory requirements, simplify audits, and ensure safe operation in typical industrial environments.
Ensure proper torque on the set screw per installer guidelines to maintain a secure connection. Verify seating in a clean, accessible location and inspect during routine maintenance to prevent looseness from vibration. The connector’s compact size aids routing in tight panels and trays, reducing installation time and labor costs.
