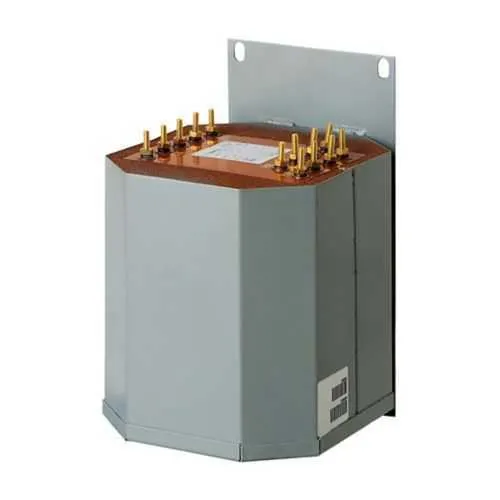

Eaton C0003P7GS industrial control transformer - UL Recognized
Part Number: C0003P7GS
Quick Summary
Eaton C0003P7GS industrial control transformer provides dependable control power for industrial automation panels. Engineers often battle crowded enclosures, high temperatures, and mismatched voltage taps that complicate installations. UL Recognized certification underpins safety compliance, while resin-encapsulated construction and a 180°C insulation system boost durability in harsh environments. By delivering 240 x 480 V primary and 120/240 V secondary, this transformer supports standard control circuits with minimal space, wiring, and thermal stress. The compact footprint helps fit into crowded panels without sacrificing accessibility, translating to faster commissioning and lower lifecycle costs for OEMs and end users.
Product Information
Extended Description
C0003P7GS Eaton: Eaton Type AP industrial control transformer, pv: 240 x 480v, taps: none, sv: 120/240v, 115°c, 3000 va, cu magnet wire, frame: 292
Product Name
Eaton Type AP industrial control transformer
Catalog Number
C0003P7GS
UPC
786680183201
Product Length/Depth
9.567 in
Product Height
9.764 in
Product Width
8.819 in
Product Weight
76 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Recognized
Catalog Notes
Resin encapsulated, 60 Hz operation, 180°C insulation system, Convenient screw-type terminal board
Coil material
Copper windings
Design
AP
Frame
292
Tap size
None
Wiring connection
416A
Primary voltage
240 x 480 V
Temperature rating
115°C
Volt ampere rating
3000 VA
Secondary voltage
120/240 V
Modification 1
Side/wall mounted
Feature → Business Impact → Application: 240 x 480 V primary and 120/240 V secondary enables standard control circuits, reducing wiring complexity and panel redesigns in machine controls and automation cabinets. This improves installation speed and maintainability in OEM equipment and retrofit projects. Feature → Business Impact → Application: 3000 VA rating supports heavier control loads, minimizing voltage drop and reducing the need for parallel transformers in larger control systems used in process lines and robotics. This leads to more reliable operation and fewer reboot events in real-time manufacturing environments. Feature → Business Impact → Application: Resin encapsulated construction with 180°C insulation and copper windings delivers rugged reliability in dusty, humid, or vibration-prone environments, boosting uptime in packaging, material handling, and assembly lines. Feature → Business Impact → Application: Side/wall mounting and a compact 9.567 in depth by 9.764 in height by 8.819 in width footprint simplify panel layouts and allow faster field installation, acceptance testing, and serviceability. Feature → Business Impact → Application: 60 Hz operation and UL Recognized certification provide regulatory compliance and compatibility with common North American control systems, reducing qualification time for safety audits and new equipment deployments.
Get a Quick Quote for a Eaton C0003P7GS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton C0003P7GS?
Enquire Now
FAQs
C0003P7GS is designed for standard control panels with 240 x 480 V primary and 120/240 V secondary. Its 416A wiring connection and resin-encapsulated construction simplify field wiring, reduce panel crowding, and support quick commissioning in automation and machine-control environments.
Key specs include 3000 VA rating, 240 x 480 V primary, 120/240 V secondary, 60 Hz operation, 115°C temperature rating, copper windings, and a 180°C insulation system. These ensure reliable control power with minimal voltage drop in typical North American automation setups.
Yes. Resin encapsulation and high insulation rating (180°C) provide enhanced durability in harsh environments, while copper windings and UL Recognized certification support stable operation in vibration-prone manufacturing, packaging, and conveying systems.
This model carries UL Recognized certification, indicating safety compliance for electrical components in control systems. It supports regulatory readiness for many facilities and OEMs, helping pass safety audits and meet internal engineering standards.
With a rugged 180°C insulation system and durable resin encapsulation, the transformer offers extended service intervals and lower risk of insulation failure. Its compact footprint reduces panel modifications, cutting installation time and total cost of ownership across equipment lifecycles.
